Subaru FORESTER 2012 - Turbo Petrol Engine Models

Black plate (363,1)
一般Model "A8170GE-A" EDITED: 2011/ 7/ 3
& Turbo petrol engine models
S11AD11

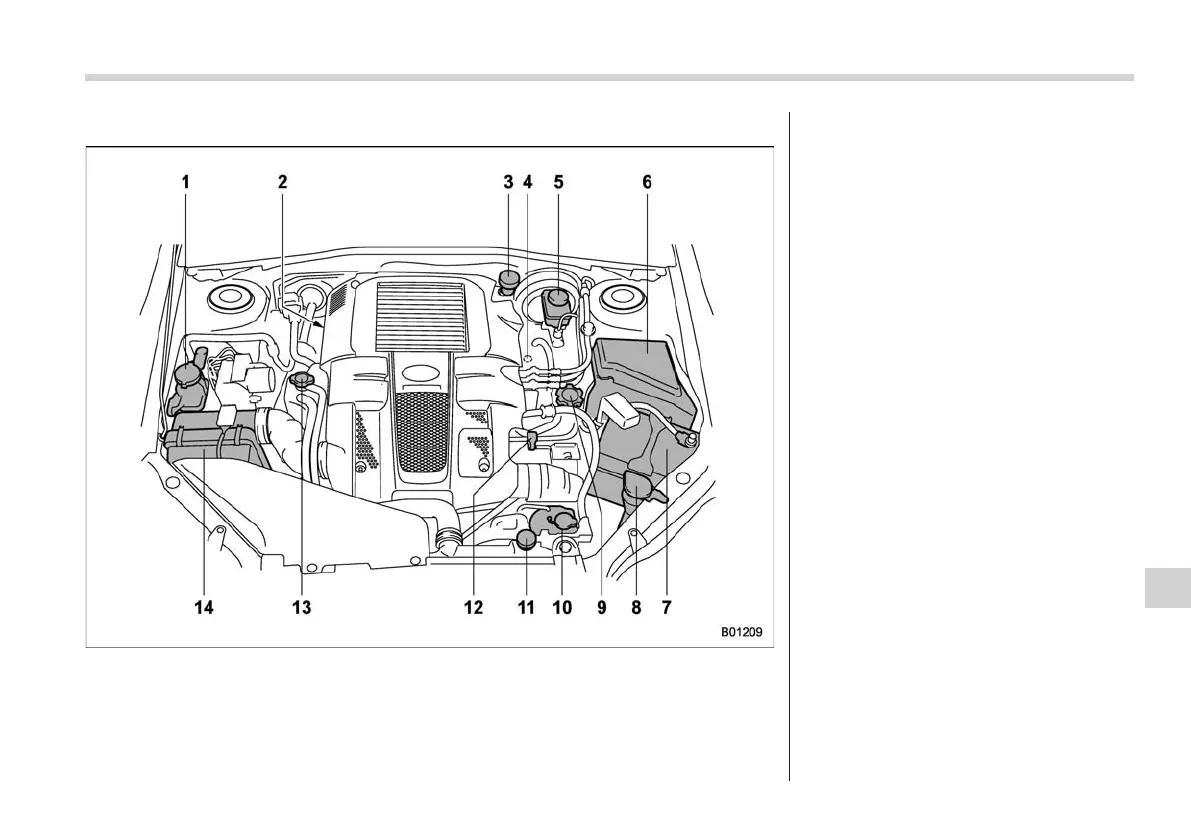

The illustration above is for a left-hand drive model. The locations of item No. 3 (clutch
fluid reservoir) and No. 5 (brake fluid reservoir) for a right-hand drive model are on the
opposite side of those shown here.
1) Power steering fluid reservoir
(page 11-
s11an33)
2) Manual transmission oil level gauge (MT)
(page 11-
s11aj28) or Differential gear oil
level gauge (AT) (page 11-
s11al31)
3) Clutch fluid reservoir (page 11-
s11ap35)
4) Automatic transmission fluid level gauge
(page 11-
s11ak30)
5) Brake fluid reservoir (page 11-
s11ao 34)
6) Fuse box (page 11-
s11bb 53)
7) Battery (page 11-
s11ba 51)
8) Windshield washer tank (page 11-
s11ax46)
9) Engine oil filler cap (page 11-
s11ae 15)
10) Engine coolant reservoir (page 11-
s11af0221)
11) Radiator cap (page 11-
s11af20)
12) Engine oil level gauge (page 11-
s11ae15)
13) Coolant filler tank cap (page 11-
s11af20)
14) Air cleaner case (page 11-
s11ag 24)
Maintenance and service
11-13
– CONTINUED –
11
