4-4 Climate control
& Type B
S04AG02
NOTE
For right-hand drive models, the dial positions and some of the button positions
are the opposite of the illustrations.

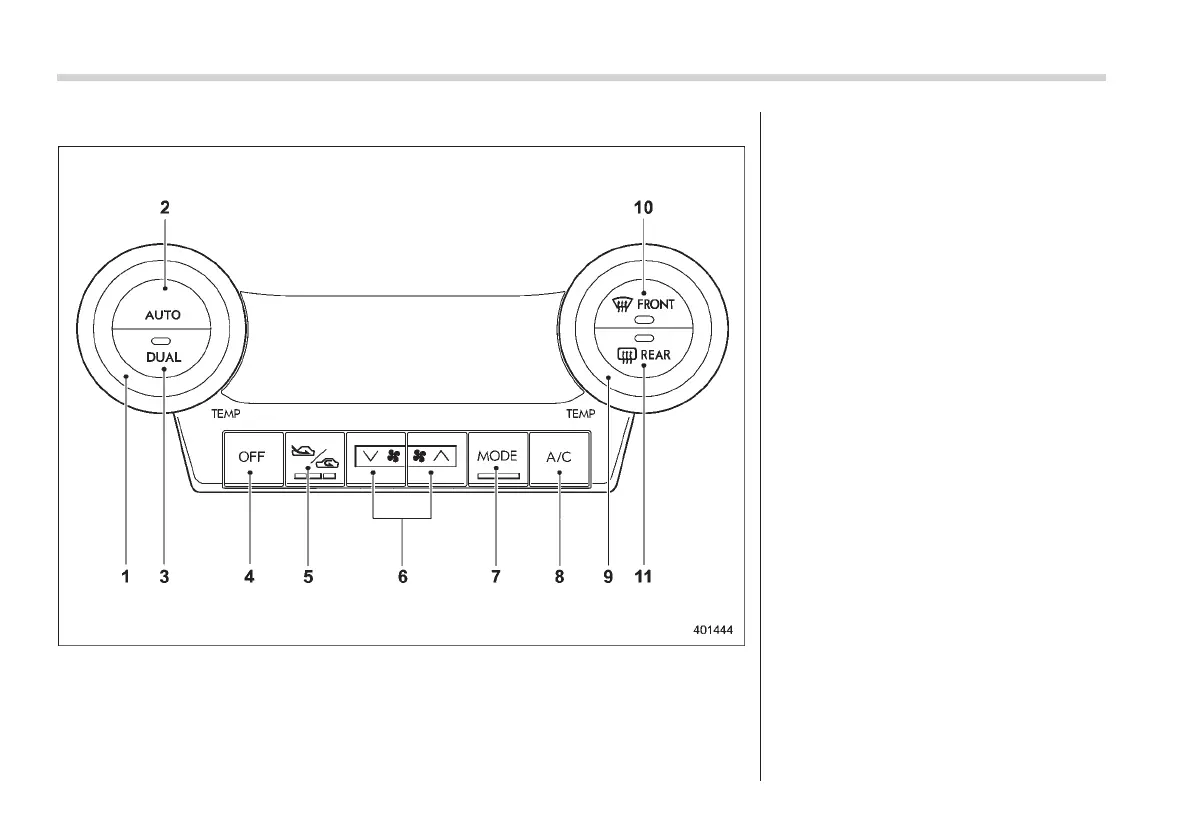

1) Temperature control dial (driver’s side)
(Refer to “
s04ab05Temperature control” F4-
9.)
2) AUTO button (Refer to “
s04acAutomatic
climate control system (type B and C)”
F4-6.)
3) DUAL mode button (Refer to “
s04acAuto-
matic climate control system (type B and
C)” F4-6 and “
s04ab05Temperature control”
F4-9.)
4) OFF button (Refer to “
s04acAutomatic
climate control system (type B and C)”
F4-6.)
5) Air inlet selection button ( Refer to
“
s04ab08Air inlet selection” F4-9.)
6) Fan speed control b utton (Refer to
“
s04ab06Fan speed control” F4-9.)
7) Airflow mode selection button (Refer to
“
s04ab04Airflow mode selection” F 4-8.)
8) Air conditioner button (Refer to “
s04ab07Air
conditioner control” F4-9.)
9) Temperature control dial (passenger’s
side) (Refer to “
s04ab05Temperature con-
trol” F4-9.)
10) Defroster button (Refer to “
s04ab04Airflow
mode selection” F4-8 and “
s04ahDefrost-
ing” F4-10.)
11) Rear window defogger button (Refer to
“
s03biDefogger and deicer” F3-49.)
