Subaru FORESTER 2012 - Fuse Panel Located in the Engine Compartment

Black plate (432,1)
一般Model "A8170GE-A" EDITED: 2011/ 7/ 3
12-16 Specifications

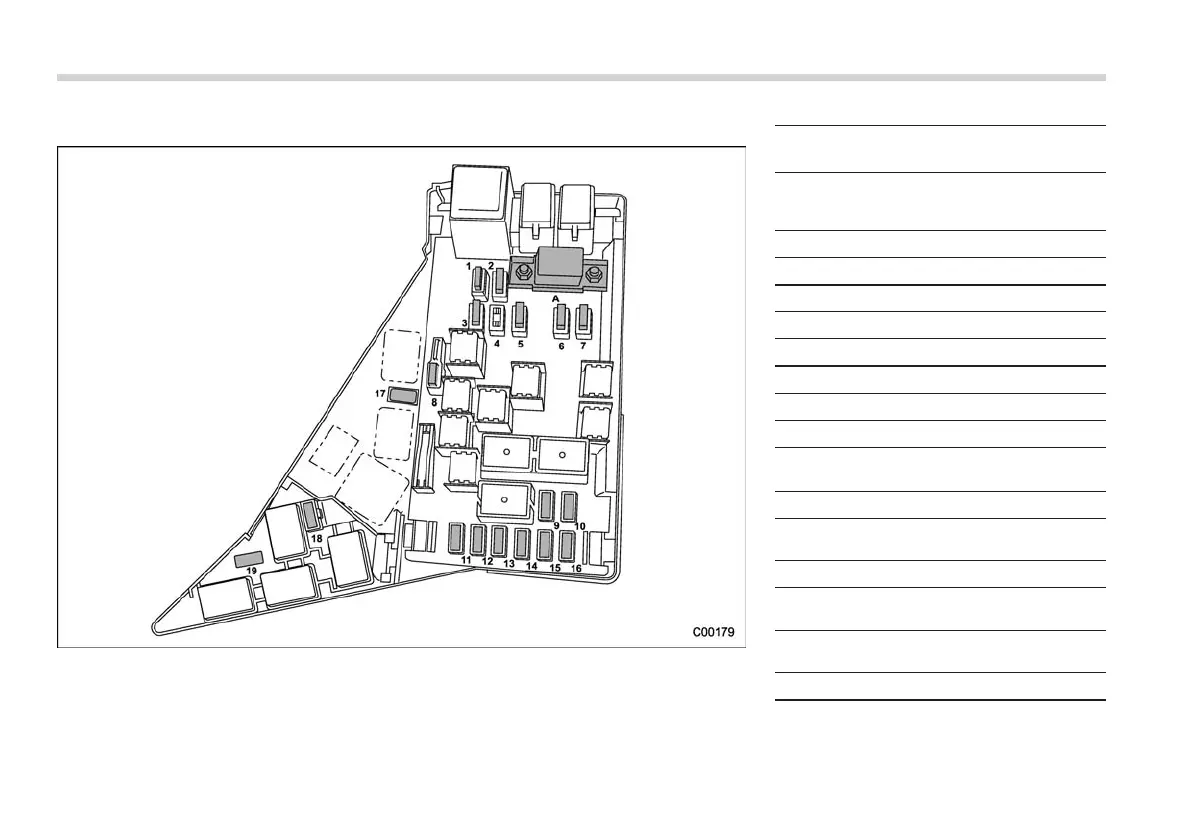

& Fuse panel located in the engine compartment
S12AB02
A) Main fuse (petrol engine models)
Fuse
panel
Fuse
rating
Circuit
1 30A
. ABS unit
. Vehicle Dynamics Con-
trol unit
2 25A
. Main fan (cooling fan)
3 25A
. Sub fan (cooling fan)
4
Empty
5
10A
. Audio
6
30A
. Low beam headlight
7 15A
. High beam headlight
8 20A
. Back-up
9 15A
. Horn
10 25A
. Rear window defogger
. Mirror heater
11 15A
. Fuel pump
12 10A
. Automatic transmission
control unit
13 7.5A
. Engine control unit
14 15A
. Turn and hazard warn-
ing flasher
15 15A
. Tail and illumination re-
lay
16 7.5A
. Alternator
