Black plate (364,1)
Model "A8170GE-A" EDITED: 2011/ 7/ 3
11-14 Maintenance and service
& Turbo diesel engine models
S11AD16

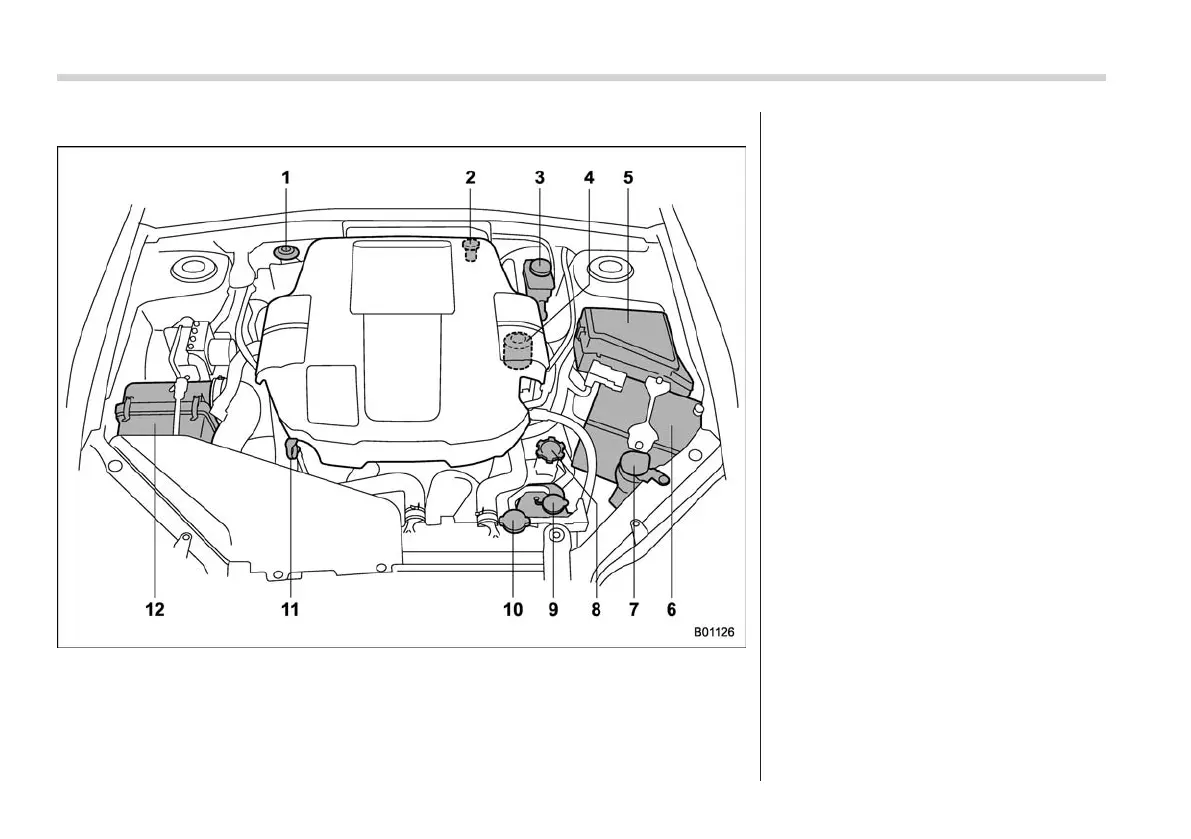

The illustration above is for a left-hand drive model. The locations of item No. 1 (priming
pump), No. 2 (clutch fluid reservoir) and No. 3 (brake fluid reservoir) for a right-hand drive
model are on the opposite side of those shown here.
1) Priming pump (page 9-s09al18)
2) Clutch fluid reservoir (page 11-
s11ap35)
3) Brake fluid reservoir (page 11-
s11ao 34)
4) Engine oil filter (page 11-
s11ae02 18)
5) Fuse box (page 11-
s11bb 53)
6) Battery (page 11-
s11ba 51)
7) Windshield washer tank (page 11-
s11ax46)
8) Engine oil filler cap (page 11-
s11ae 15)
9) Engine coolant reservoir (page 11-
s11af0221)
10) Radiator cap (page 11-
s11af20)
11) Engine oil level gauge (page 11-
s11ae15)
12) Air cleaner case (page 11-
s11ag 24)
