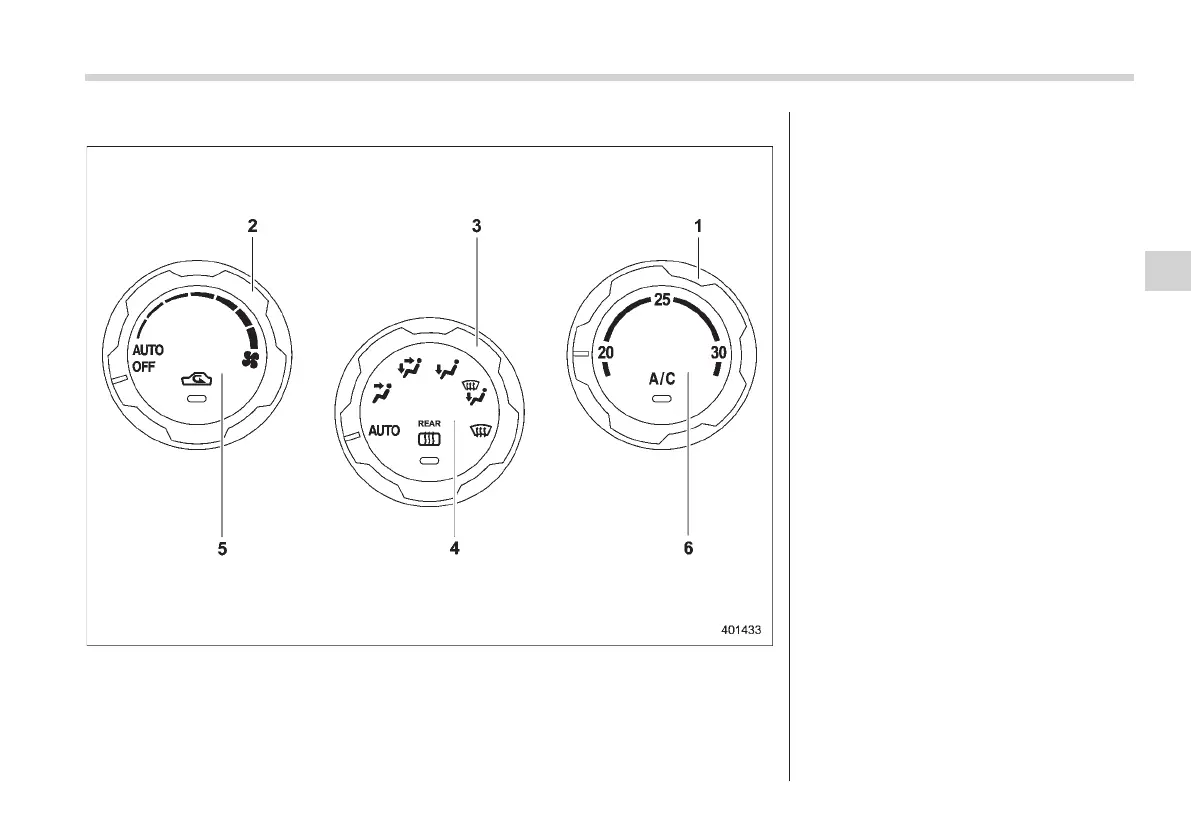

1) Temperature control dial (Refer to “s04ab05-
Temperature control” F4-9.)
2) Fan speed control dial (Refer to “
s04acAu-
tomatic climate control system (type B
and C)” F4-6 and “
s04ab06Fan speed
control” F4-9.)
3) Airflow control dial (Refer to “
s04acAuto-
matic climate control system (type B and
C)” F4-6, “
s04ab04Airflow mode selection”
F4-8 and “
s04ahDefrosting” F4-10.)
4) Control switch of the defogger and deicer
system (Refer to “
s03biDefogger and dei-
cer” F3-49.)
5) Air inlet selection button ( Refer to
“
s04ab08Air inlet selection” F4-9.)
6) Air conditioner button (Refer to “
s04ab07Air
conditioner control” F4-9.)
NOTE
The controllable temperature range
may differ depending on the model.
