11-62 Maintenance and service

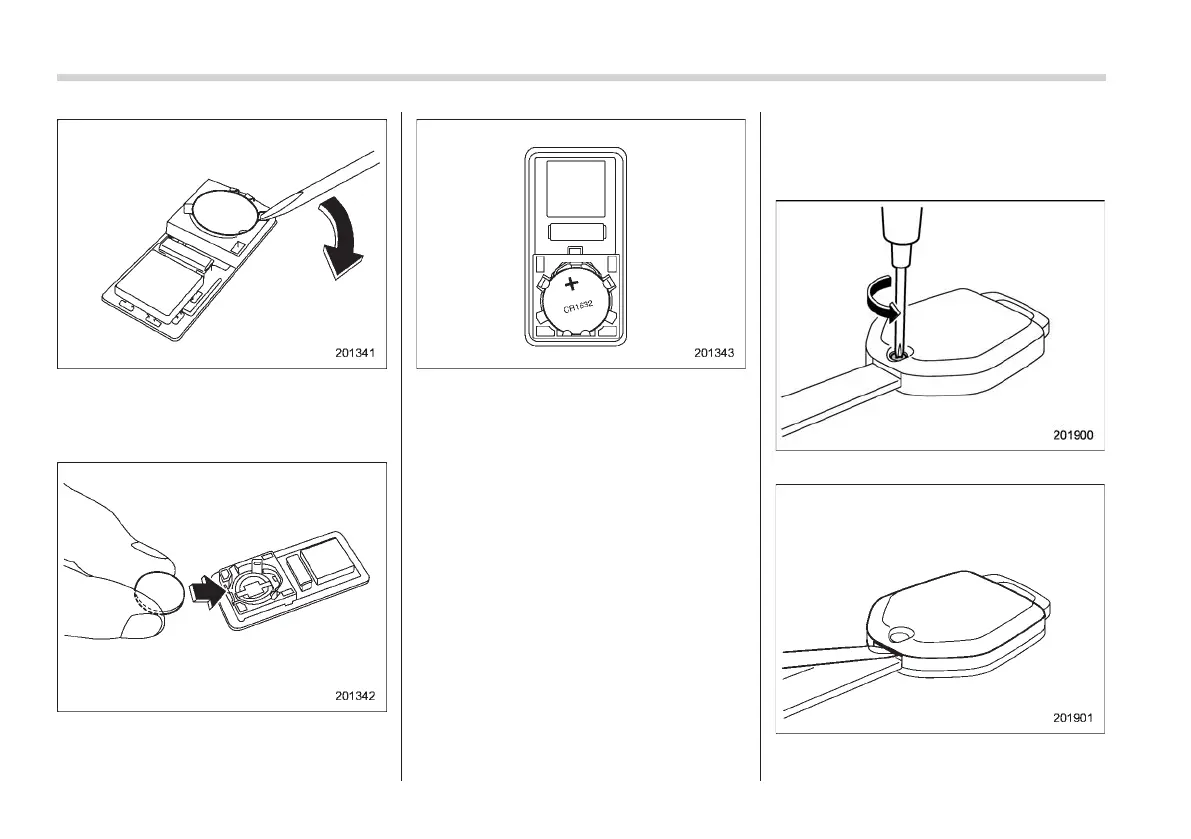

4. Wrap a flat-head screwdriver with vinyl
tape, and insert it between the battery and
the board (B). Take out the battery as
shown in the figure.
5. Insert a new battery with its positive (+)
side facing upward as shown in the figure.
Attach the cover firmly.
& Replacing battery of trans-
mitter
S11BK02
! Type A
S11BK0201
1. Remove the screw on the key head.
2. Open the key head using a flat-head
To Next Page
