SRM100 RTM LEDs

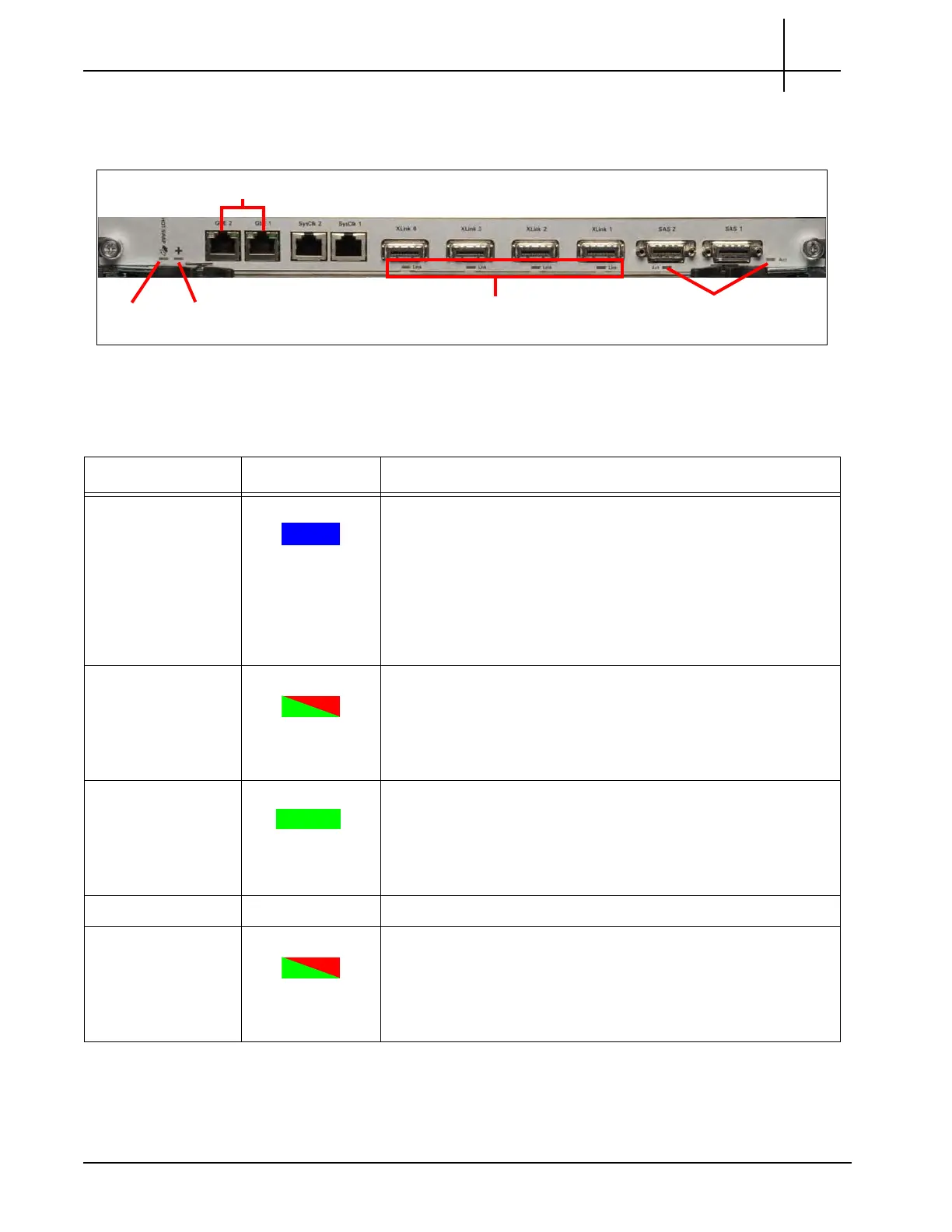

Figure 3.19 displays the SRM100 RTM LEDs.
Figure 3.19 - SRM100 RTM Rear Panel LEDs
Table 3.10 describes the SRM100 RTM LED indicators.
Hot Swap
LED
+ LED
Gb Ethernet LEDs
XLink 1-4 LEDs (not used)
SAS LEDs
Table 3.10 - SRM100 RTM LED Indicators
LED LED Color Description
Hot Swap BLUE Indicates when it is safe to
remov
e the SRM100.
 BLUE—The module is in standby mode and can be safely
extracted.
 OFF—The module is operational, and it is unsafe to extract
it.
 BLINKING BLUE—The module is in transition between
standby mode and operational mode.
+ (Health) GREEN or RED Indicates the health of the SRM100 RTM.
 GREEN—No errors.
 RED—An error occurred.
 OFF—The board is not powered on.
Gb Ethernet LEDs GREEN Indicates Gigabit Ethernet link and activity.
 BLINKING GREEN—Ethernet activity is occurring.
 SOLID GREEN—The Ethernet link is established.
 OFF—No Ethernet link is established.
XLink 1–4 LEDs These LEDs are not used.
SAS LEDs GREEN or RED Indicates SAS link connectivity status.
 GREEN—No errors; SAS link is established.
 RED—An error occurred.
 OFF—No SAS link is established.
