2.3. Main Operation
This photograph depicts the back of the unit, where the neutron detector
(optional) location is marked with an “N” on the back label.
Figure 2-13. Neutron Detector Position (Rear)

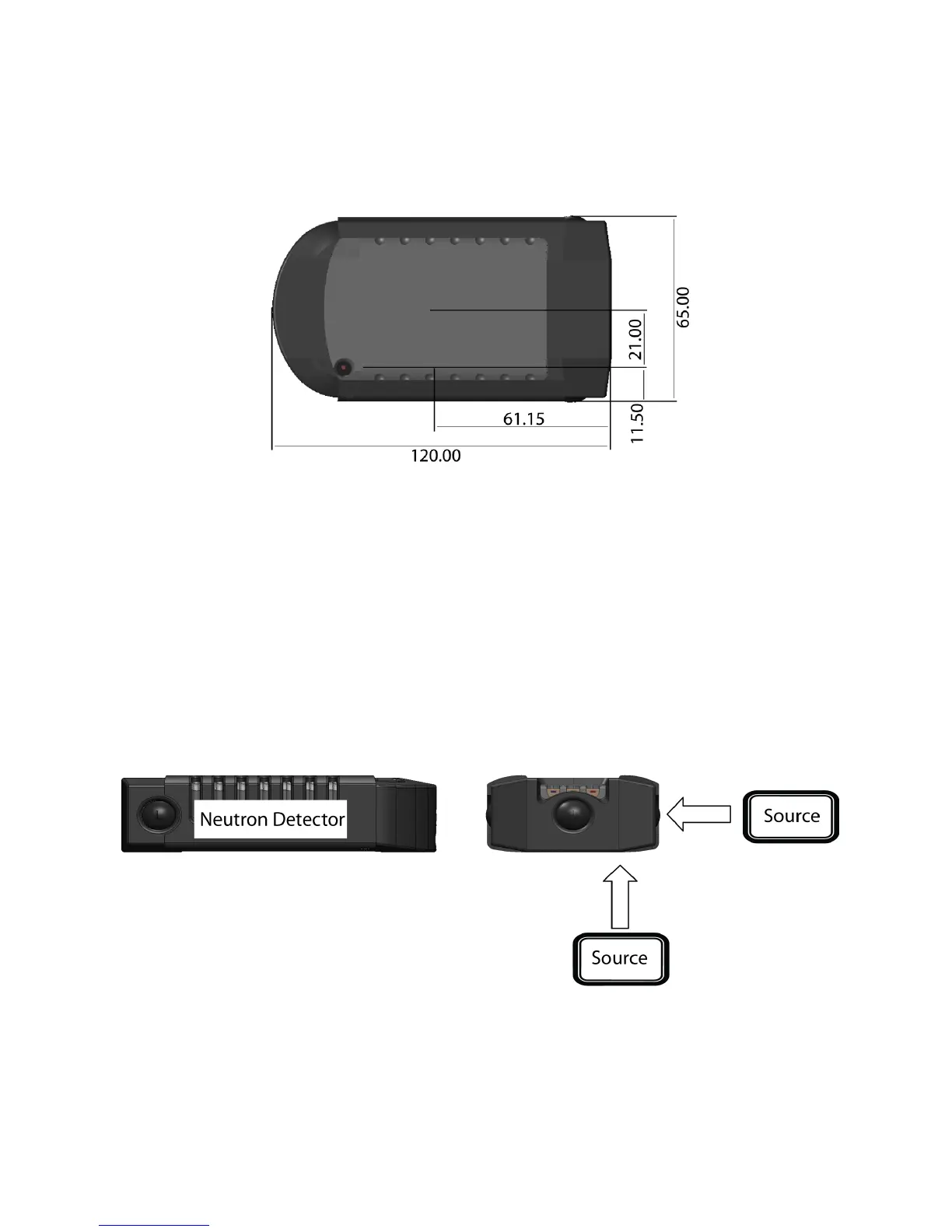

The next figure illustrates the frontal dimensions and position of the neutron
detector with respect to the rest of the unit. As shown, the neutron detector
occupies over half of the unit’s length on the left, back side. This is very im-
portant to remember when measuring neutrons.
The figure illustrating 1) the left side view and 2) the top-central view of the
unit is given below:
Figure 2-14. Optimal Direction to Source (Rear) - Neutron
In this figure, the white bar on the bottom of the left side view of the I-
™ indicates the location of the neutron detector.
Thermo Fisher Scientific Interceptor™/en/5.1(4956)/Feb2010 17
