16.3.3External thread milling tool system
Note: Position T33
Characteristics Data
− Function 3650
− Identification: Tornos 305115

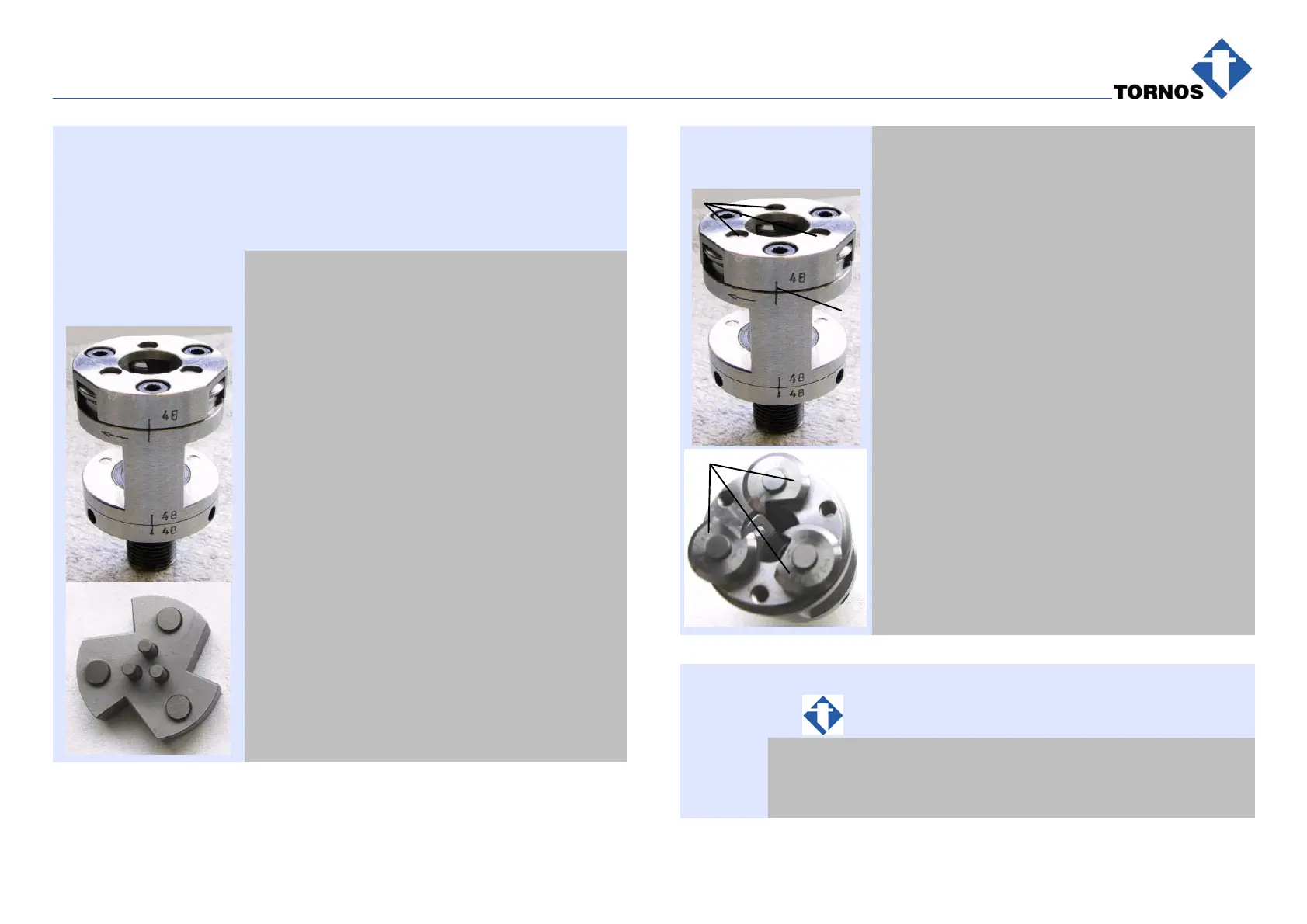

Spinning head used to cut an external thread-
ing by means of a 3−knife set
Ø ext. 15 mm, thickness 4 mm,
boring Ø 5 mm.
Usage for Ø 5 to 10 mm (knife center shift with
respect to the cutting tool reference line
9.5 mm)
Adjusting gauge included, paired with the
knife−holder head.
Note: The spinning knives must be applied according
to the threading to be made.
c
r
j
Cover with positioning mark (r) and recess for
adjusting gauge’s positioning pins (j).
A 3−knife set (c).
Tool system composition
Feature Designation Data
10 305115 External whirling T33 1
20 217213 Special spindle 36/15 mm 1
500 524345 Electric equipment and control 1
