OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.3.3 /10
Cutting tool sharpening system
− Function 3670
− Identification: Tornos 570504

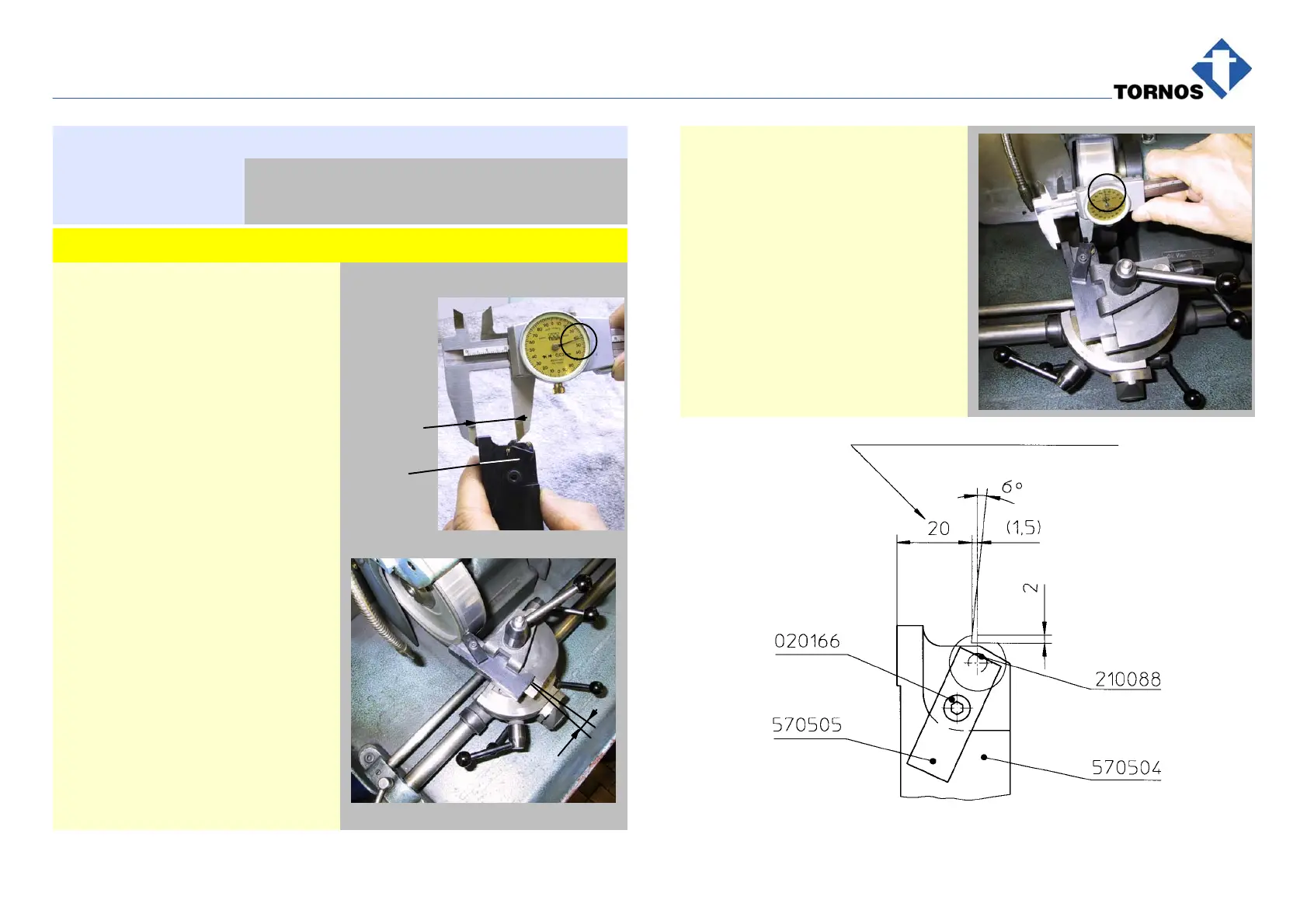

SHARPENING THE KNIVES
What to do? Notes
− Position the knife with a dimen-
sion greater than 20 mm (additio-
nal sharpening thickness accor-
ding to knife wear).
− Tighten the flange
21.5mm
Flange
− Position the support at 6 degrees
(knife cutting angle) on the shar-
pening machine.
Refer to the opposite drawing
(Fig.1507).
6
°
− Sharpen until the 20 mm dimen-
sion identified below is obtained
(Fig.1)
Fig. 1507
Finished dimension after sharpening.
