OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 20.1 /4

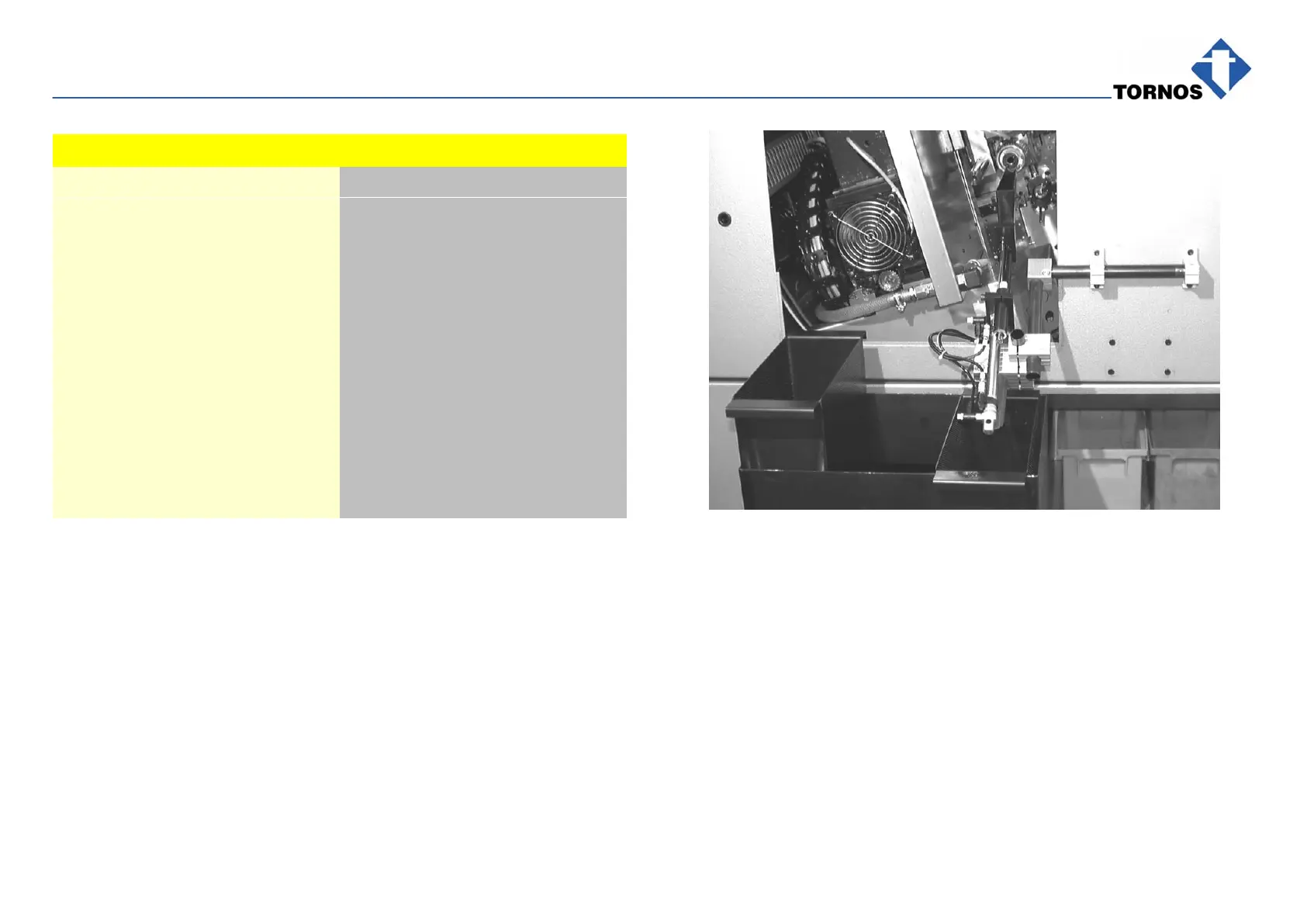

EJECTION ROD CHANGE for Long-Part Ejector
What to do ? Notes
Dismounting
Loosen two Screws 210: M4 x 12
Pull the ejection rod through the
counter-spindle...
... by connecting the supply pipes.
Loosen two Screws 230 (M6 x 16)
...
to pivot Guiding Steady 40.
Mounting
Fit in another ejection rod: of another capacity
Adjustments
Set the end of the ejection rod ... ... at 30 mm off the tool line.
Tighten two Screws 210: M4 x 12
