RemovingtheEngine(continued)
g221629

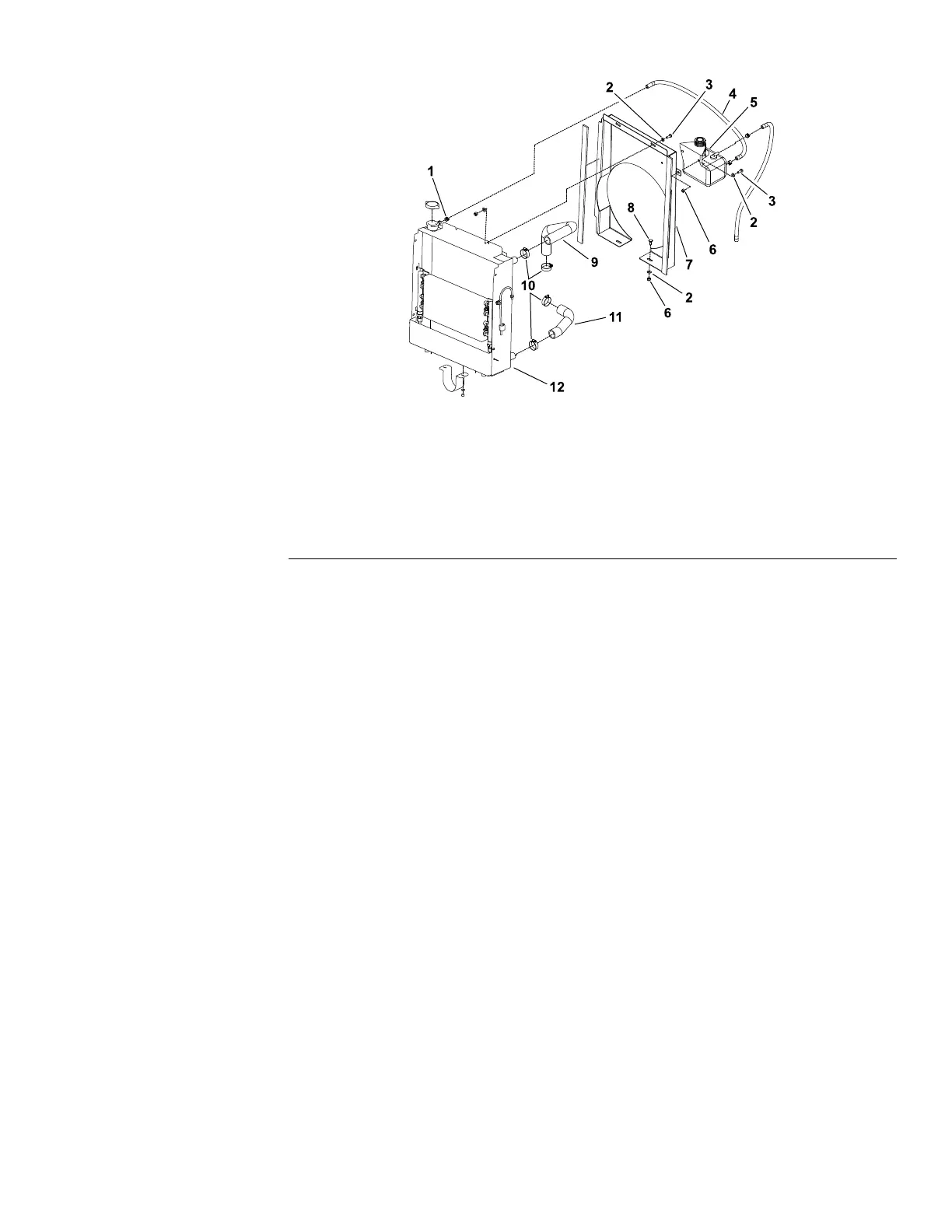

Figure29
1.Hoseclamp
5.Coolantreservoir
assembly
9.Upperradiatorhose
2.Flatwasher(8each)6.Locknut(6each)10.Hoseclamp(4each)
3.Bolt(4each)
7.Fanshroud11.Lowerradiatorhose
4.Reservoirhose
8.Carriagebolt(2each)
12.Radiator
7.Loosenthehoseclampandremovethereservoirhosefromtheradiatorîš¿ll
opening(Figure29),andremovethecoolantreservoirassemblyfromthe
radiatorfanshroud.
8.Removethe4fasteners,6atwashers,and4locknutsthatsecurethefan
shroudtotheradiator(Figure29).Positionthefanshroudawayfromthe
radiator.
9.RemovethePTOshaftfromthemachine;refertoRemovingthePTOShaft
(page9–8).
10.Removetheexhaustmuferfromtheengine;refertoExhaustSystem(page
4–9).
11.Removetheaircleanerassemblyfromthemachine;refertoAirCleaner
System(page4–7).
Groundsmaster
®
3280-D/3320
Page4–21
DieselEngine:ServiceandRepairs
05138SLRevB
