Toshiba e-studio 6560c User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 104

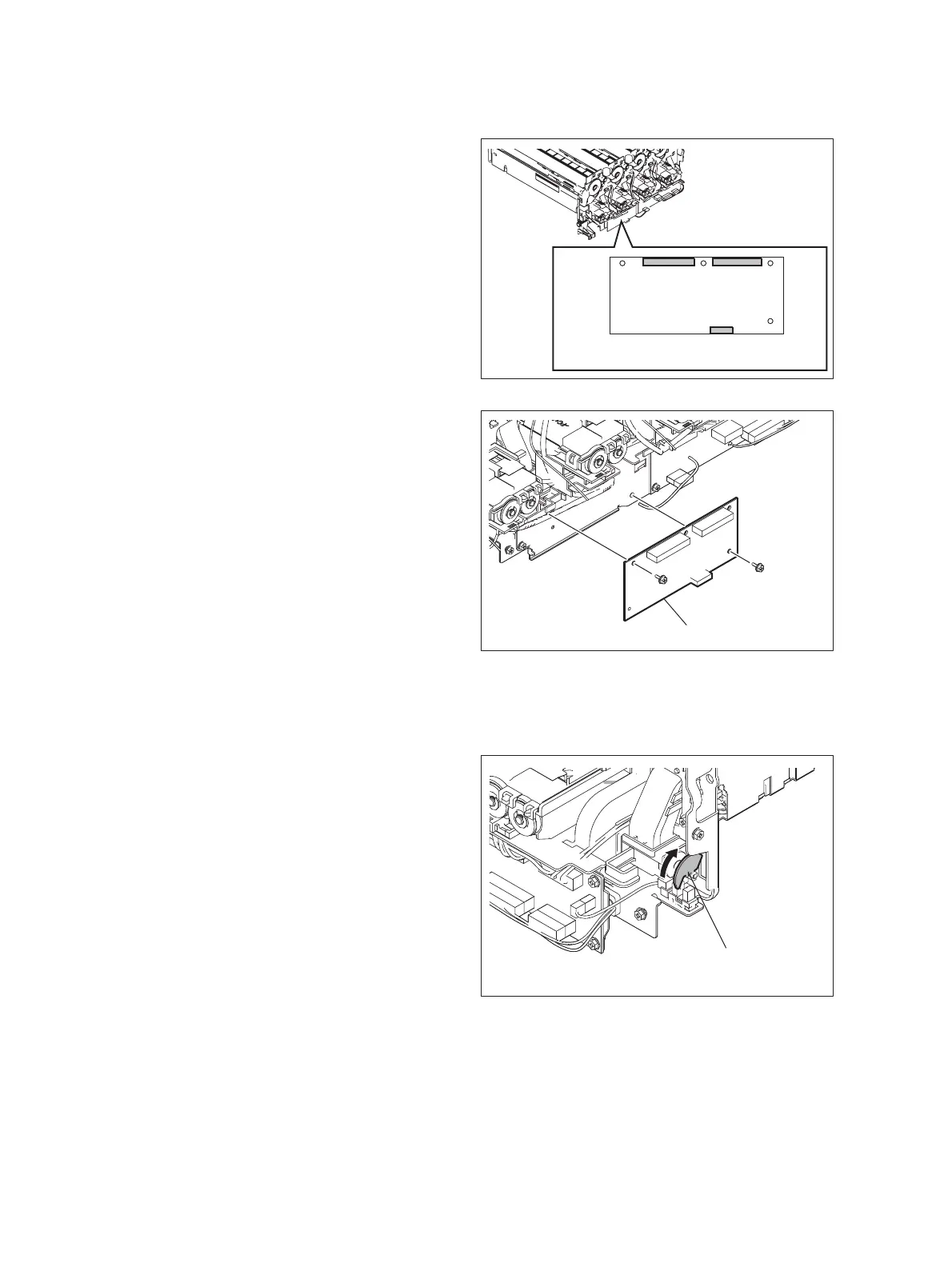

4.6.16 Drum surface potential sensors control PC board (V0S board) (e-
STUDIO6550C/6570C only)
4.6.17 Auger lock detection sensor (S42)
(1) Take off the EPU cover.
 P. 4-101"4.6.13 EPU cover"
(2) Disconnect 3 connectors.
Fig. 4-302
(3) Remove 2 screws and then take off the V0S
board.
Fig. 4-303
(1) Take off the EPU cover.
 P. 4-101"4.6.13 EPU cover"
(2) Rotate the auger to escape the actuator from
the sensor.
Fig. 4-304
Drum surface potential sensors
control PC board
Drum surface potential sensors control PC board
Actuator

Toshiba e-studio 6560c Specifications

General

Functions	Print, Copy, Scan, Fax
Print Speed (Black)	Up to 65 ppm
Print Speed (Color)	Up to 65 ppm
Copy Speed (Black)	Up to 65 cpm
Copy Speed (Color)	Up to 65 cpm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Scan Resolution	Up to 600 dpi
Connectivity	Ethernet
Operating System Compatibility	Linux
