PREVENTIVE MAINTENANCE (PM)

7 - 22

7.6.6 Drum / Cleaner unit / Filter

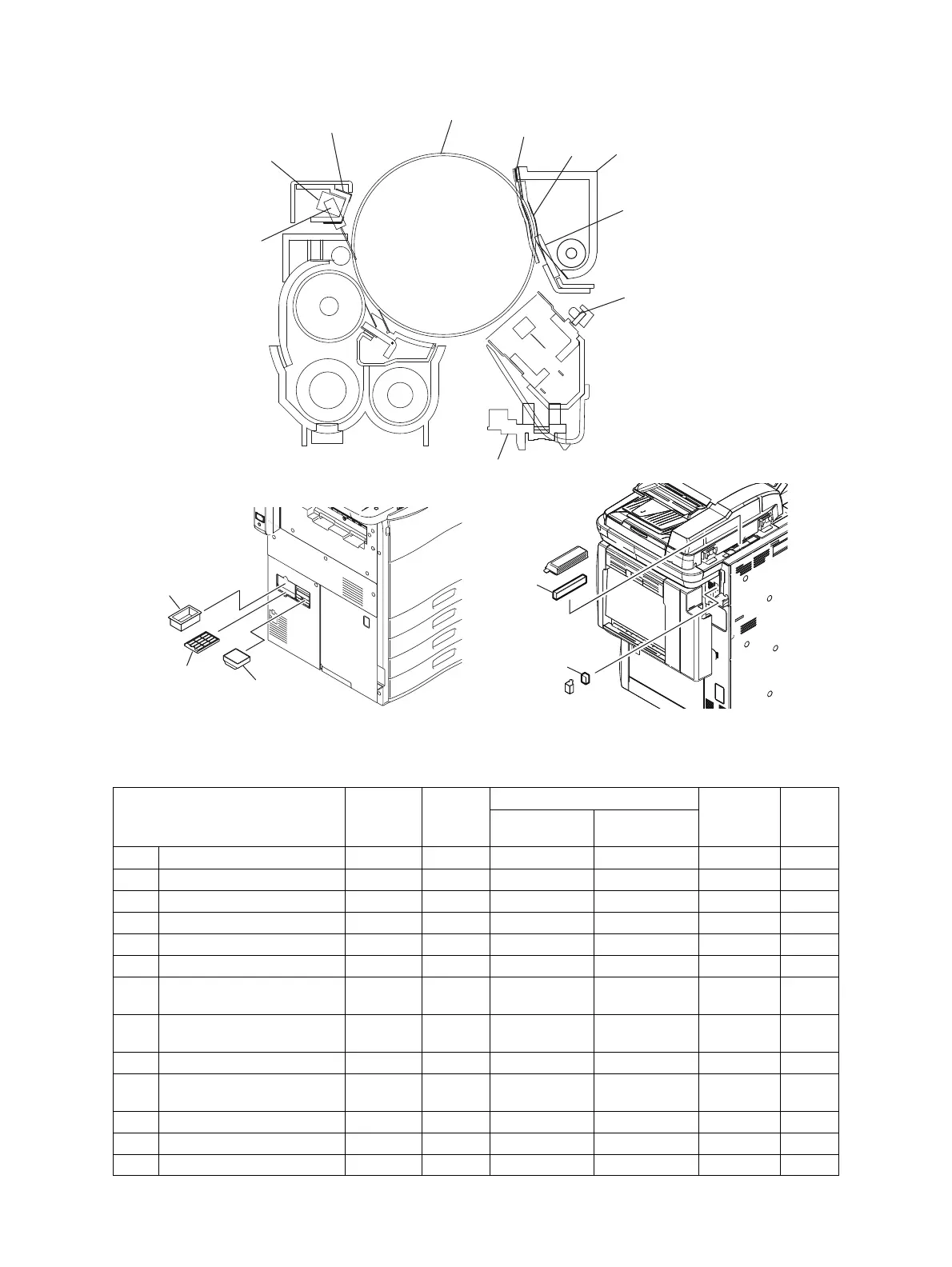

Fig. 7-19

Items to check Cleaning

Lubrica

tion/

Coating

Replacement

Operation

check

Parts

list

<P-I>

(x 1,000

sheets)

(x 1,000 drive

counts)

F1 Whole cleaner unit B

F2 Drum 248/275/303 314 203-1

F3 Drum cleaning blade 248/275/303 314 63-21

F4 Blade side seal R R 63-23

F5 Recovery blade B R R 63-25

F6 Drum thermistor B 59-27

F7 Drum surface potential

(V0) sensor

B 59-22

F8 Drum surface potential

(V0) sensor shutter

B 59-24

F9 Discharge LED B 64-20

F10 Needle electrode cleaner

detection sensor

B59-4

F11 Ozone filter-1 248/275/303 314 49-4

F12 Ozone filter-2 248/275/303 244 49-14

F13 Toner filter 248/275/303 244 49-11

F10

F12

F11

F13

F14

F15
