DISASSEMBLY and REPLACEMENT
4 - 307
4.12.3 MJ-6102 (Hole punch unit)

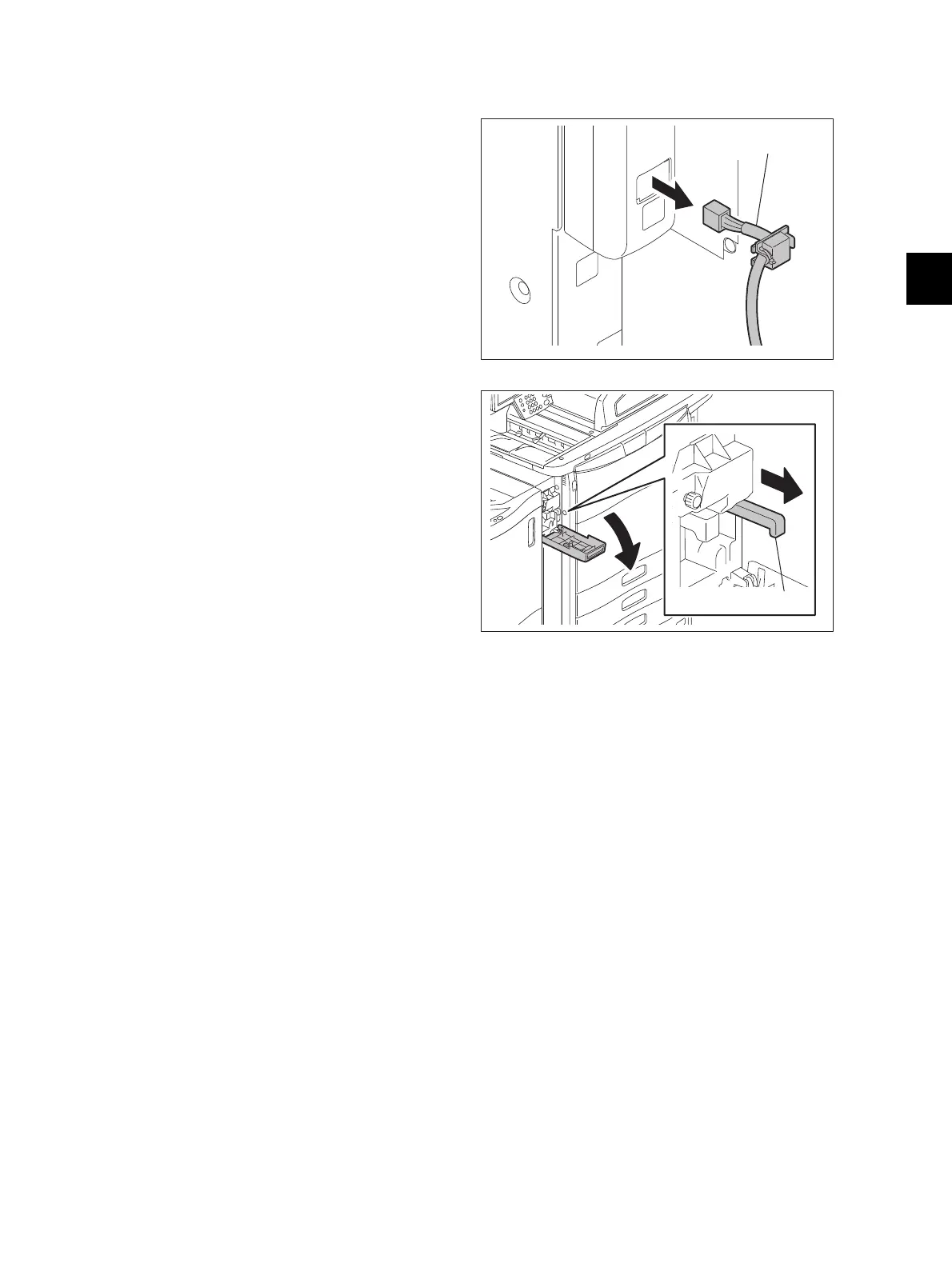

(1) Turn OFF the power and unplug the power
cable.
(2) Take off the connector cover and disconnect
the interface cable of the finisher.
Fig. 4-11
(3) Open the cover of the hole punch unit.
(4) Pull the lever to release the lock.
Fig. 4-12
Interface cable
Lever

Toshiba e-studio 6560c Specifications

General

Functions	Print, Copy, Scan, Fax
Print Speed (Black)	Up to 65 ppm
Print Speed (Color)	Up to 65 ppm
Copy Speed (Black)	Up to 65 cpm
Copy Speed (Color)	Up to 65 cpm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Scan Resolution	Up to 600 dpi
Connectivity	Ethernet
Operating System Compatibility	Linux
