DISASSEMBLY and REPLACEMENT
4 - 143
4.7.4 Transfer belt cleaning blade
4.7.5 Transfer belt cleaner side seal
(1) Take off the transfer belt cleaning unit.
 P. 4-141"4.7.3 Transfer belt cleaning unit"
(2) Remove 2 screws and then take off the
transfer belt cleaning blade [1].
Notes:
When taking off the transfer belt cleaning
blade, be sure to check the back side and
clean it if it is dirty.

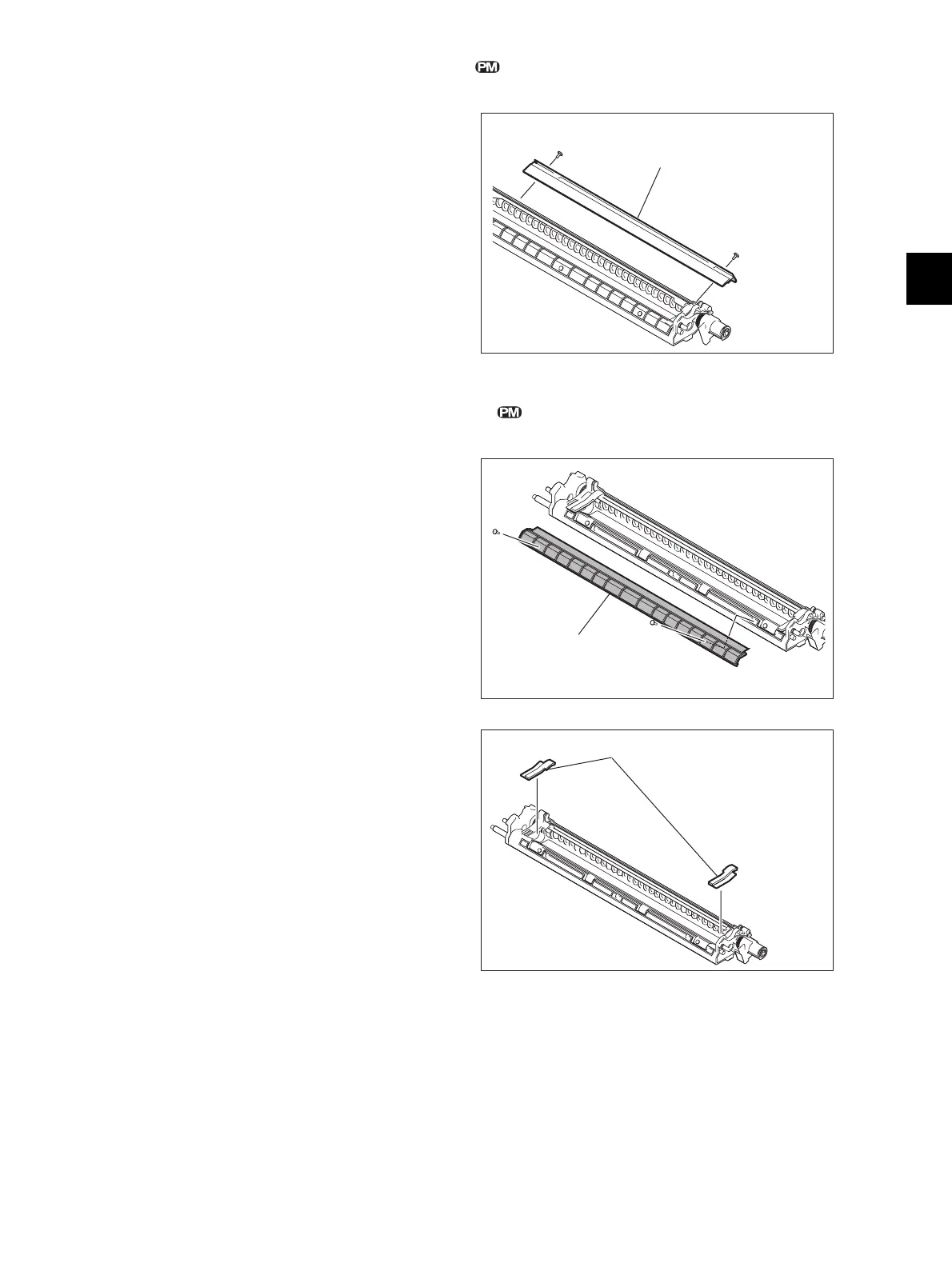

Fig. 4-417
(1) Take off the transfer belt cleaning unit.
 P. 4-141"4.7.3 Transfer belt cleaning unit"
(2) Remove 2 screws and then take off the
recovery blade [1].
Fig. 4-418
(3) Remove the transfer belt cleaner side seals
on both sides.
Fig. 4-419
[
1
]
[
1
]
Transfer belt cleaner side seal
