DISASSEMBLY and REPLACEMENT
4 - 293
4.11.40 Original width detection sensor-3 (SR8)
4.11.41 Original width detection sensor-2 (SR7)

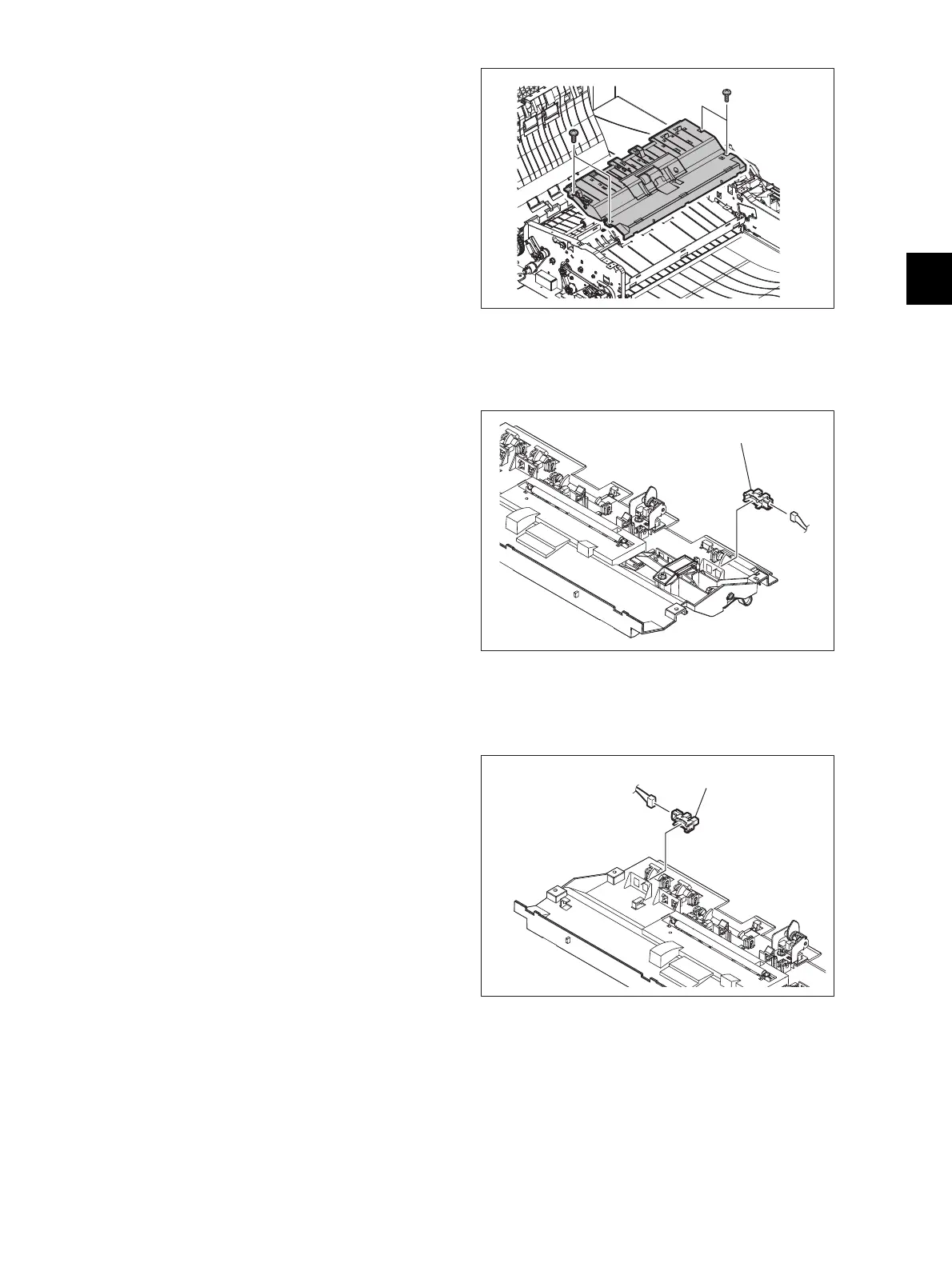

(3) Remove 4 screws and take off the feeder
lower guide unit.
Fig. 4-854
(1) Take off the feeder lower guide unit.
 P. 4-292"4.11.39 Feeder lower guide unit"
(2) Disconnect 1 connector. Lift the actuator,
release 2 latches and take off the original
width detection sensor-3.
Fig. 4-855
(1) Take off the feeder lower guide unit.
 P. 4-292"4.11.39 Feeder lower guide unit"
(2) Disconnect 1 connector. Lift the actuator,
release 2 latches and take off the original
width detection sensor-2.
Fig. 4-856
Original width detection sensor-3
Original width detection sensor-2
