Digital combi modules
D300529 0115 - BL67 I/O modules9-28

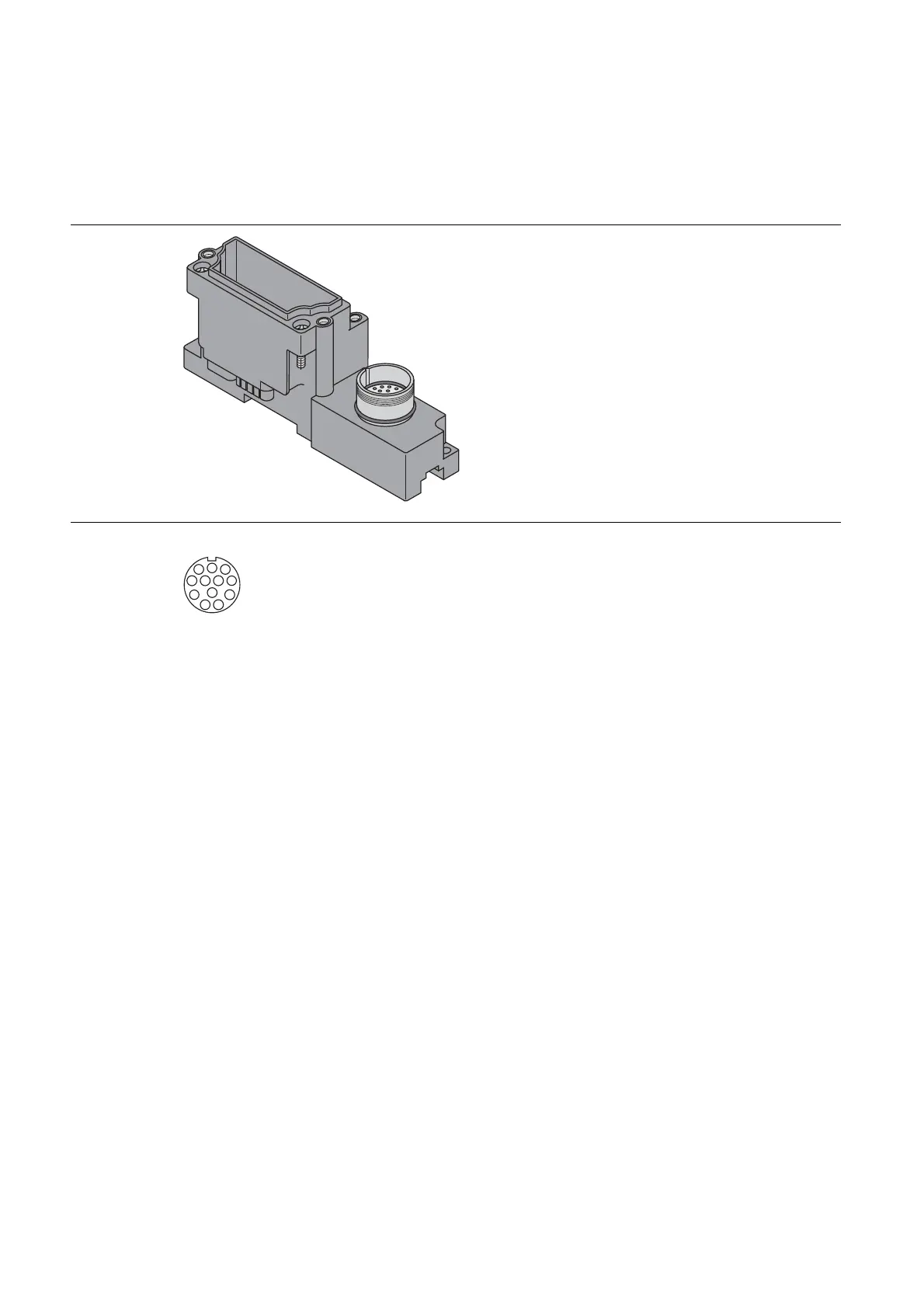

 BL67-B-1M23
Channel related diagnostics is restricted with this
base module. The sensor supply is electronically
current limited to 3 × 100 mA (pin 9, 10, 11).
Figure 9-22:
0
Figure 9-23:
81
9
712102
54
63
11
v
1 = Signal 0
2 = Signal 1
3 = Signal 2
4 = Signal 3
5 = Signal 4
6 = Signal 5
7 = Signal 6
8 = Signal 7
9 = V
SEN0
10 = V
SEN1
11 = V
SEN2
12 = GND
BL67-B-1M23
Pin assignment
BL67-8XSG-PD
with
BL67-B-1M23
