Radiator / fan blades
7. Position a suitable container with sufficient volume underneath the
radiator – see “Fluids and lubricants” on page 1-15.
8. Remove the hydraulic connection 4 and drain the liquid.
9. Close openings with suitable plugs.
10.Remove nuts 5.
11.Remove the clamp 6 and pull out the upper water hose.
12.Remove the hose bracket 7.
13.Remove screw 8.
14.Remove the hydraulic connection 9.
15.Close openings with suitable plugs.
16.Remove screw 10.
17.Fasten the radiator on a crane.
18.Pull radiator back until it can be lifted out using the crane.
Install in the reverse order.

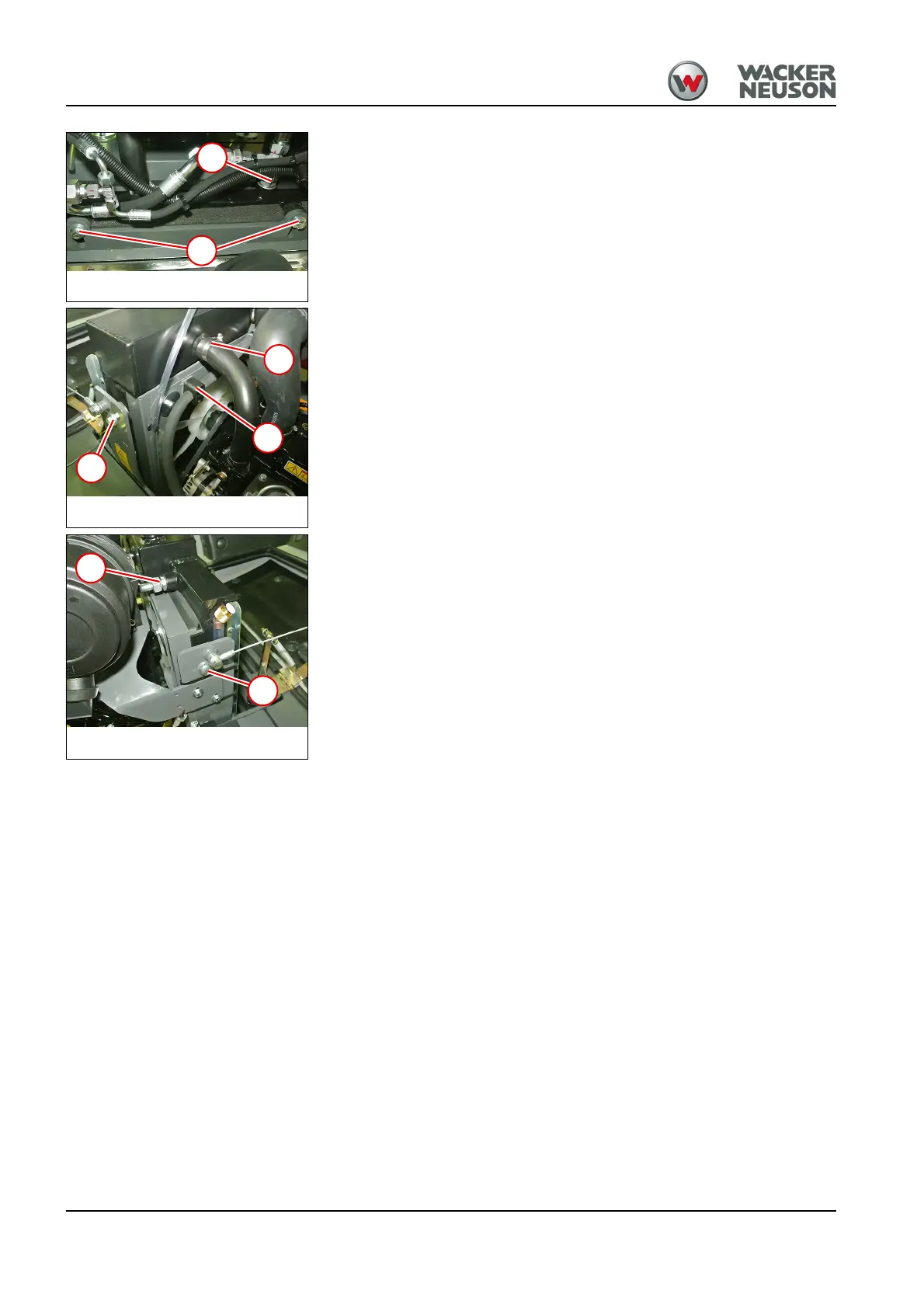

Fig. 106
4
5
Fig. 107
6
8
7
Fig. 108
10
9
