5 Axles
Rear axle
Disassemble
Environment
Use a suitable container to collect the hydraulic oil as it drains off and
dispose of it in an environmentally friendly manner!
1. Remove all nuts (SW13) at the rear axle joint 1.
2. Pull the cardan shaft from the rear axle.
3. Lift the rear end high enough for the hoist to be placed under the axle
(H).
4. Support the rear machine section with suitable trestles to prevent it
from tipping.
5. Secure the loader with suitable lifting gear if necessary.
6. Remove the wheels.
7. Loosen union nut 2 on the hydraulic hose.
8. Remove the hydraulic line.
9. Close the hydraulic hose and opening with plugs.

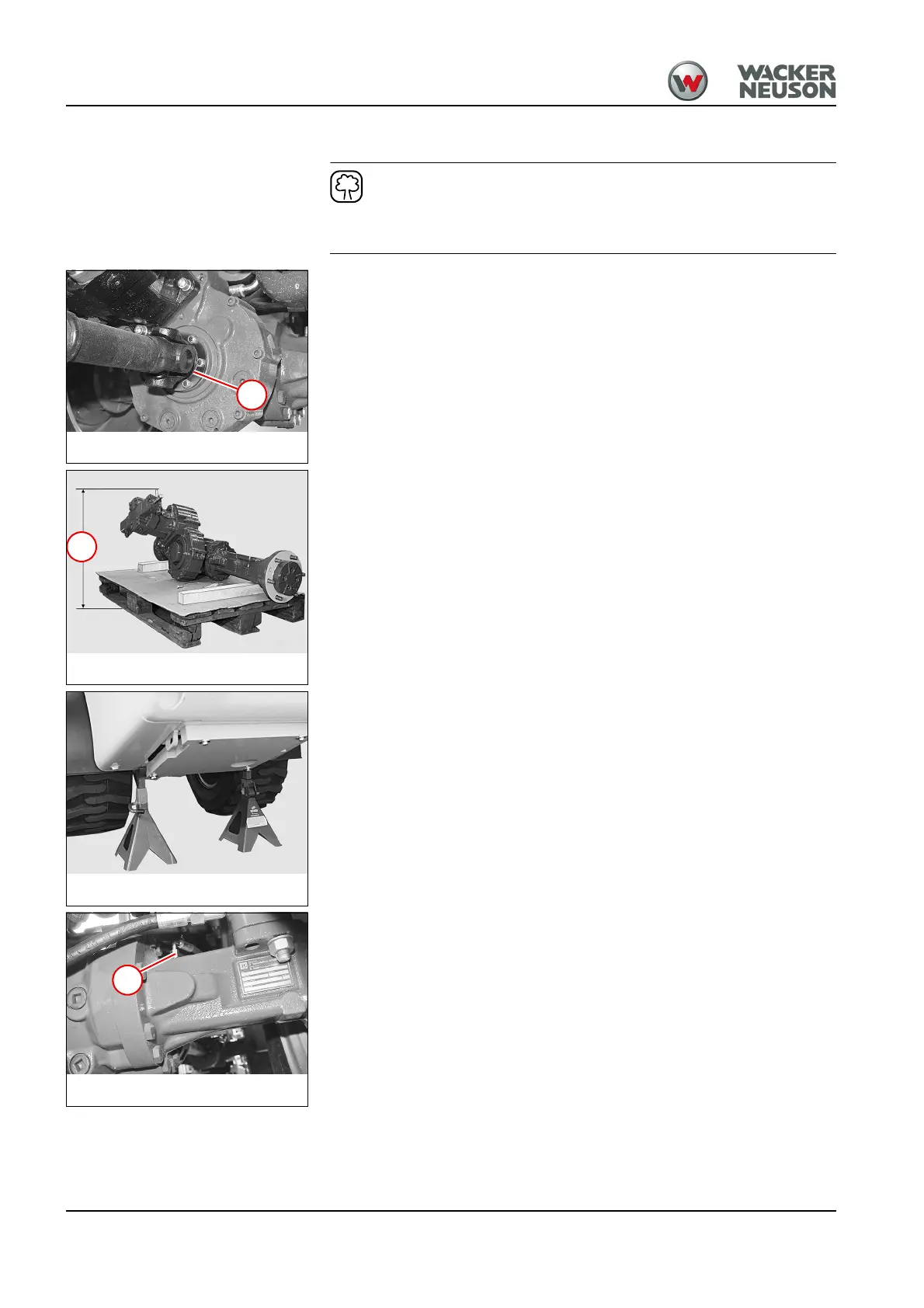

Fig. 145
1
Fig. 146
H
Fig. 147
Fig. 148
2
