6-10 SHB WL34 * 2.0
6 Brake
Service/parking brake

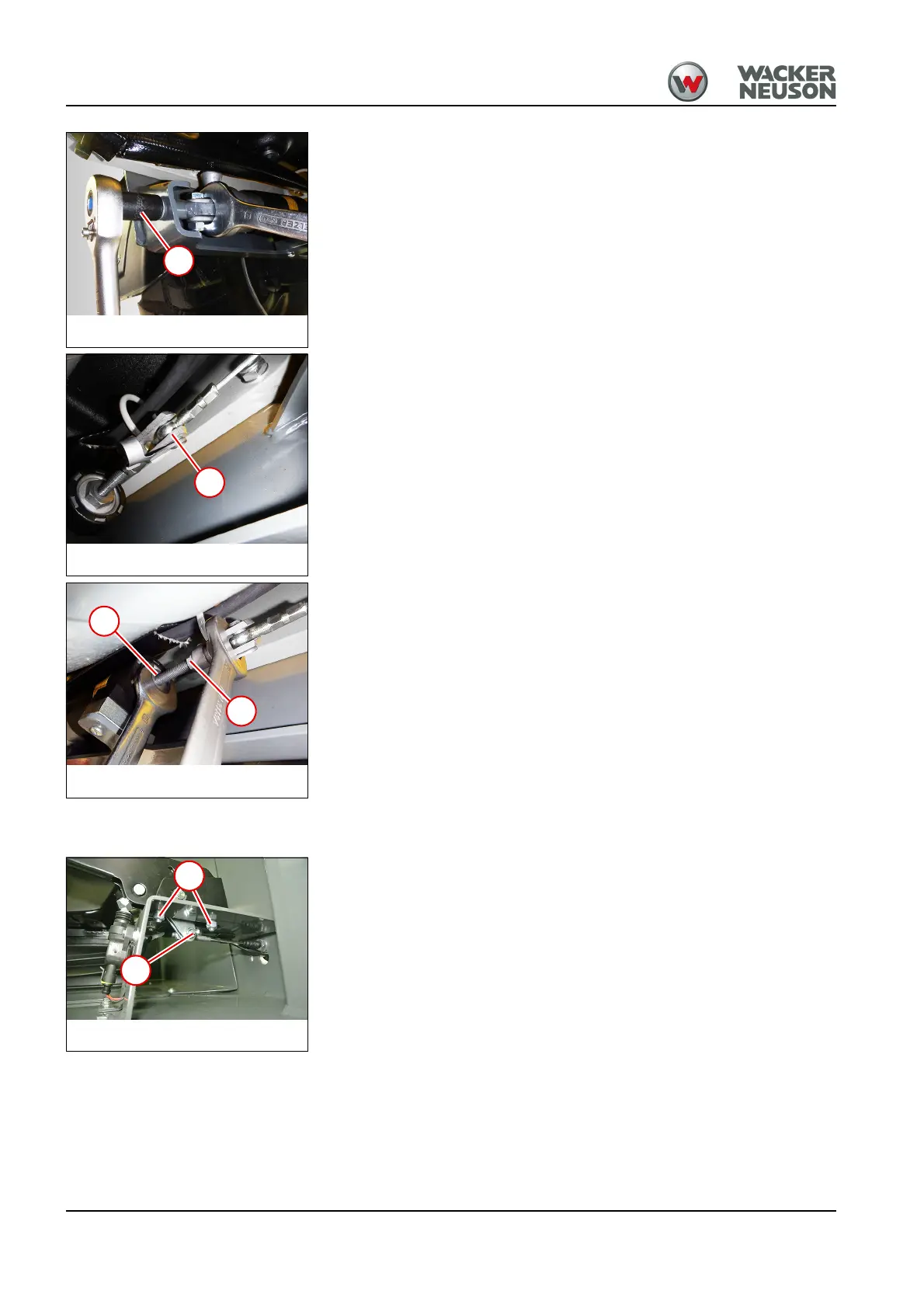

11.Tighten screw 7 to 56 Nm. At the same time, hold up the cylinder with a
27 mm spanner.
12.Fasten the Bowden cable to the spring-loaded cylinder 8.
13.Hold up the threaded rod at the fork head with a spanner in the
process.
14.Screw the nut 9 (SW 24) counterclockwise.
15.Now tighten the locknut 10 (SW 17). The fork head should no longer
turn.
16.Test the function of the service brake / parking brake.
Removing/installing parking brake
1. Dismount the holder for the Bowden cable 2. To do this, remove the
fastening nuts.
2. Remove two nuts and screws each on both sides 1.
3. Remove the parking brake.
Install in the reverse order.
Fig. 172
7
Fig. 173
8
Fig. 174
9
10
Fig. 175
2
1
