Brake 6
Master brake cylinder
Removing/installing the master brake cylinder
Preparing work
Tools:
• Suitable receptacle for collecting the brake fluid
• Plugs (different sizes) for closing the brake lines
Disassemble
Environment
Use a suitable container to collect the brake fluid as it drains and dispose
of it in an environmentally friendly manner!
1. Remove cover 1.
2. Remove brackets 2 on the fork head.
3. Remove cover 3.

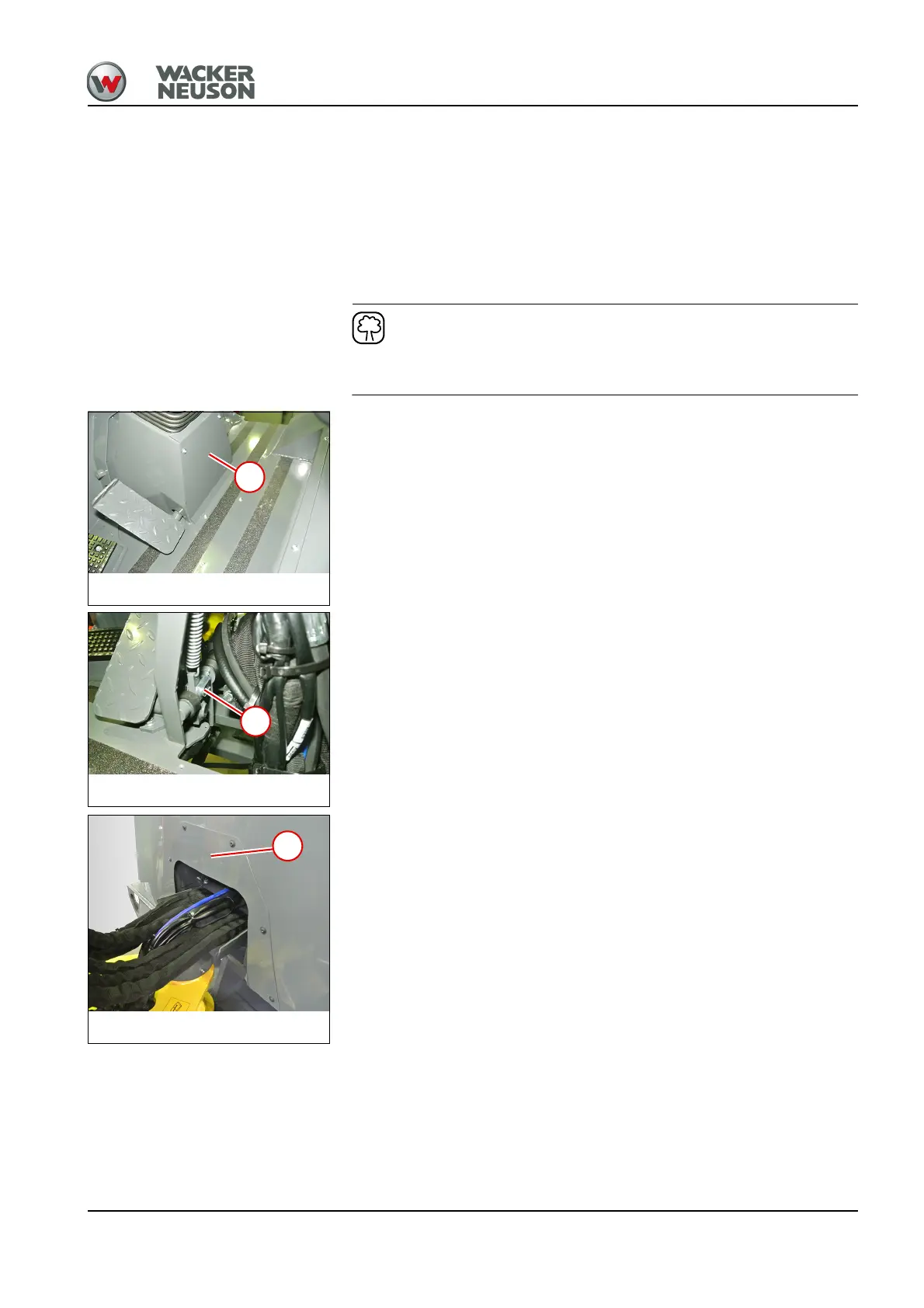

Fig. 178
1
Fig. 179
2
Fig. 180
3
