Wacker Neuson WL34 - Page 246

8-20 SHB WL34 * 2.0
8 Work hydraulics

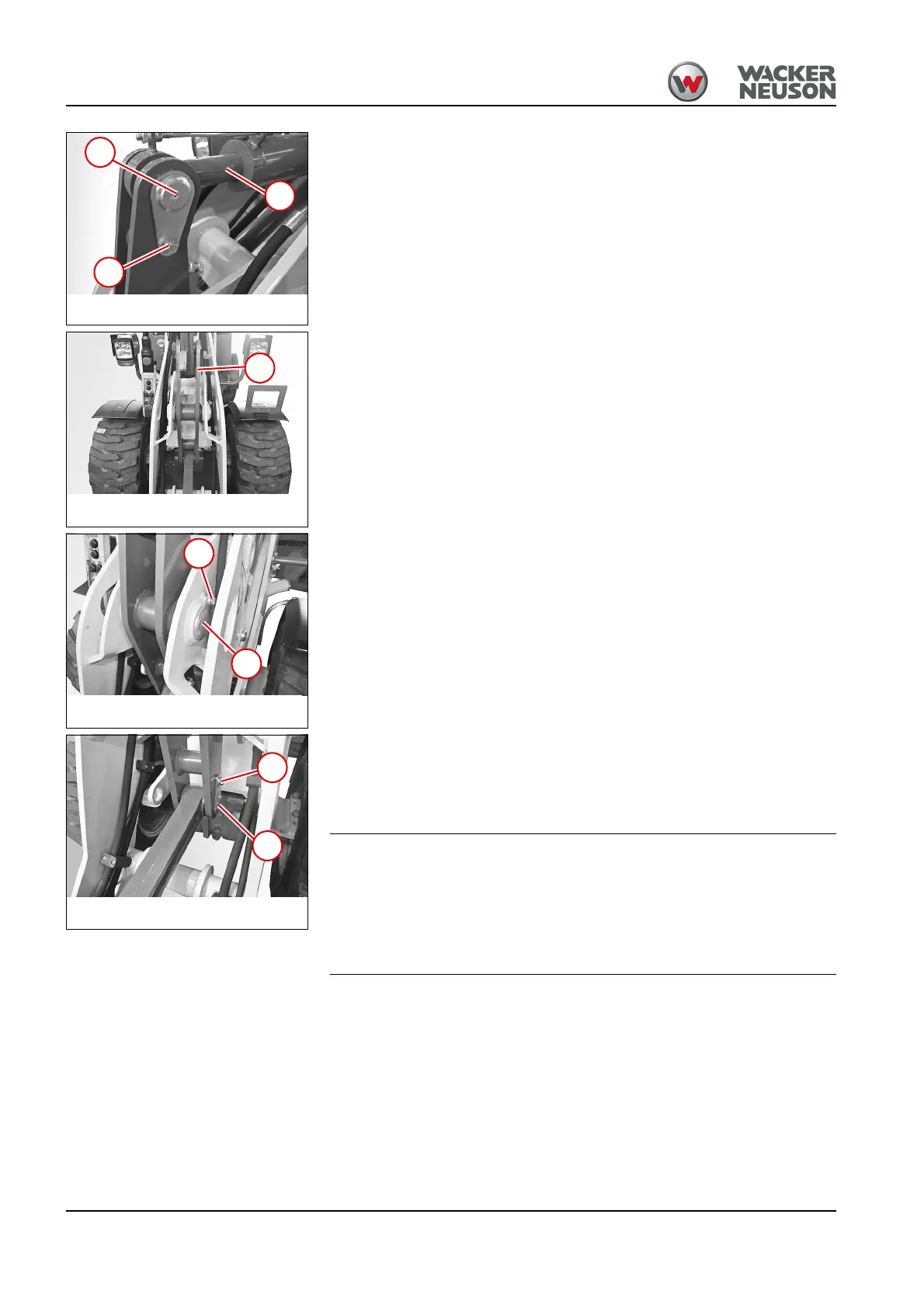

Reversing lever
2. Release the pressure in the hydraulic system – see “Releasing
residual pressure in the hydraulic system” on page E-32.
3. Secure tilt cylinder 3 to prevent it from falling down.
4. Unscrew plug 4.
5. Dislodge the pin 2.
6. Lift tilt cylinder and flip backwards.
7. Unscrew the compensation rings if necessary.
8. Attach reversing lever 5 to a crane.
9. Unscrew plug 6.
10.Drive out the pin 7 using a suitable extension.
11.Unscrew plug 8.
12.Dislodge the pin 9.
Install in the reverse order.
NOTICE
Pay attention to the following instructions for assembly:
► Apply a thin coat of grease to the pins and bearings before inserting the
pins.
► Always use spring washers and washers for tightening the pins.
Fig. 229
3
2
4
Fig. 230
5
Fig. 231
6
7
Fig. 232
8
9
