Work hydraulics 8
Reversing lever
Removing/installing the front reversing lever
Injury hazard due to heavy component!
The reversing lever weighs approx. 14 kg.
To remove and install the reversing lever, use suitable lifting gear or work
together with a second person.

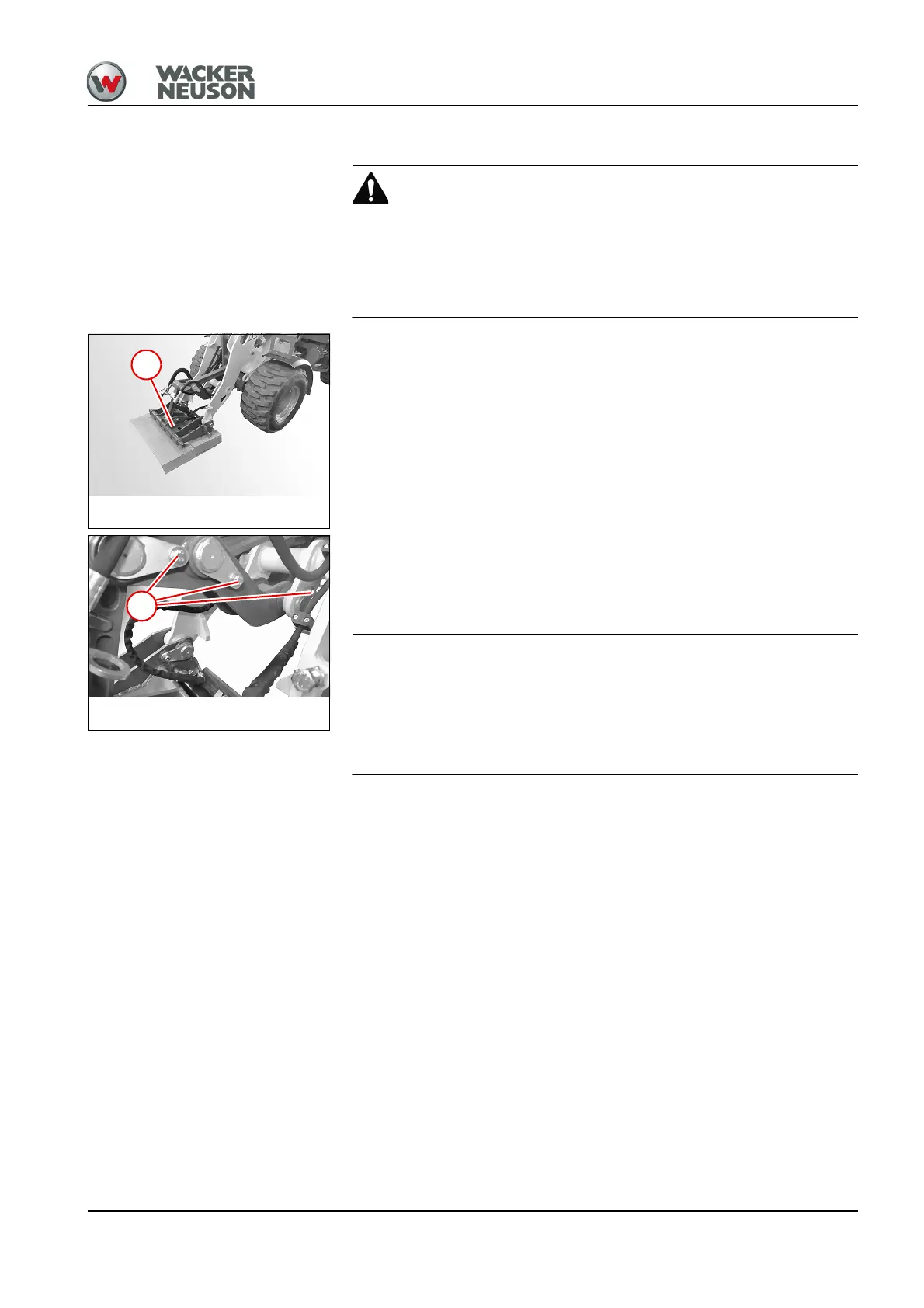

1. Reduce the load on the loader unit by lowering the quickhitch 1 to the
ground.
2. Remove safety screws 2 from the pin.
3. Expel the pin.
Install in the reverse order.
Pay attention to the following instructions for assembly:
► Apply a thin coat of grease to the pins and bearings before inserting the
pins.
► Always use spring washers and washers for tightening the pins.
