8-22 SHB WL34 * 2.0
8 Work hydraulics
Solenoid valve
8.11 Removing/installing solenoid valve V30
Preparing work
Tools:
• Suitable receptacle for collecting the hydraulic oil
• Plugs (different sizes) for closing the oil lines
Use a suitable container to collect the hydraulic oil as it drains off and
dispose of it in an environmentally friendly manner!
1. Reduce the load on the loader unit by lowering the quickhitch to the
ground.
2. Release the pressure in the hydraulic system – see “Releasing
residual pressure in the hydraulic system” on page E-32.
Injury hazard due to pressure
A thin jet of hydraulic oil escaping under high pressure can penetrate the
skin.
► Seek medical attention immediately if hydraulic oil penetrates the skin
or eyes.
► Only open hydraulic systems after the pressure in them has been
released.
► Wear protective clothes.

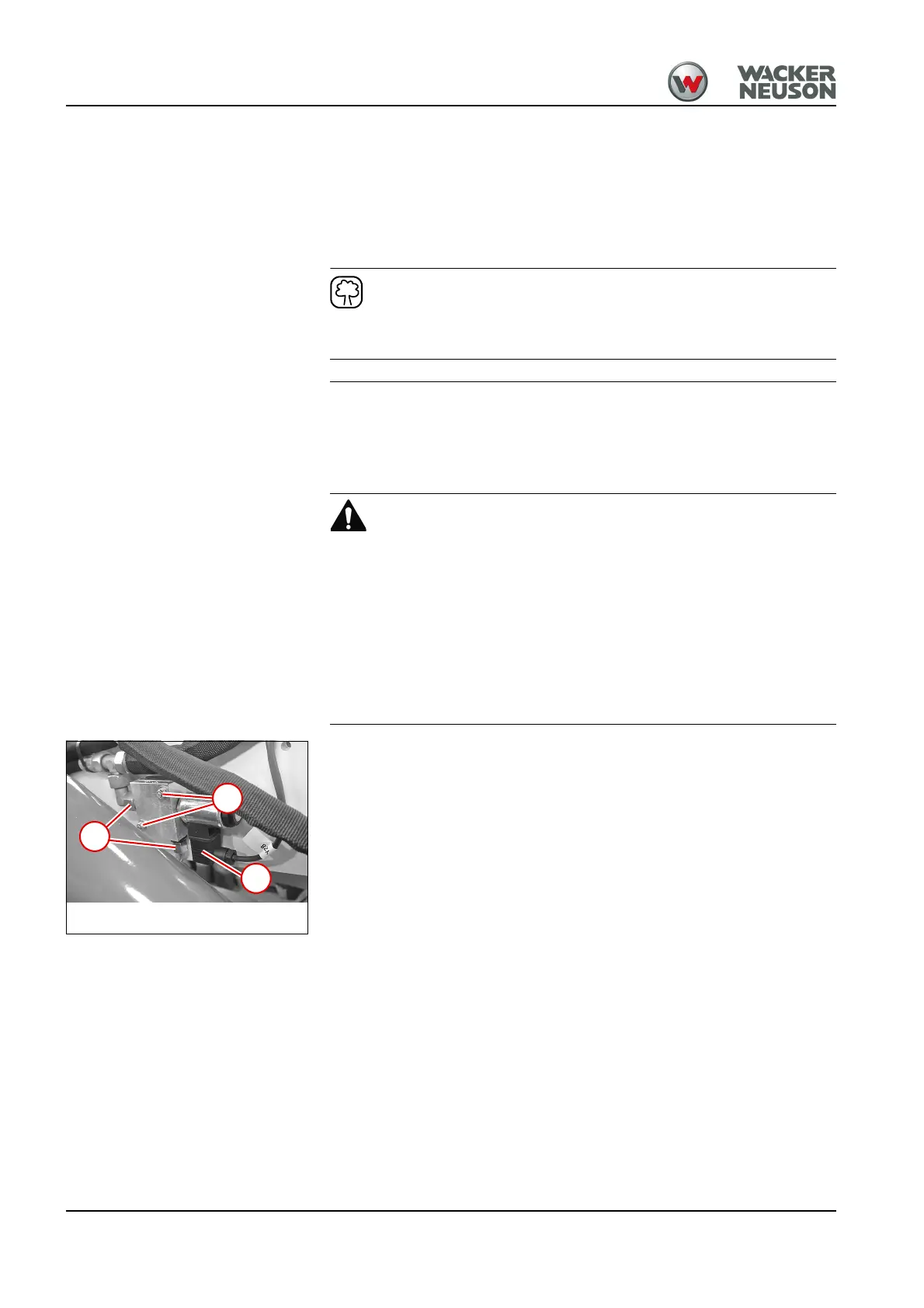

1. Unscrew union nuts 1 and remove hydraulic hoses.
2. Close the openings oil-tight with the plugs.
3. Remove plug 3.
4. Remove the nuts 2 unscrew the screws and remove the valve.
Install in the reverse order.
