Wacker Neuson WL34 - Page 288

9-28 SHB WL34 * 2.0
9 Electrical system
Diagrams

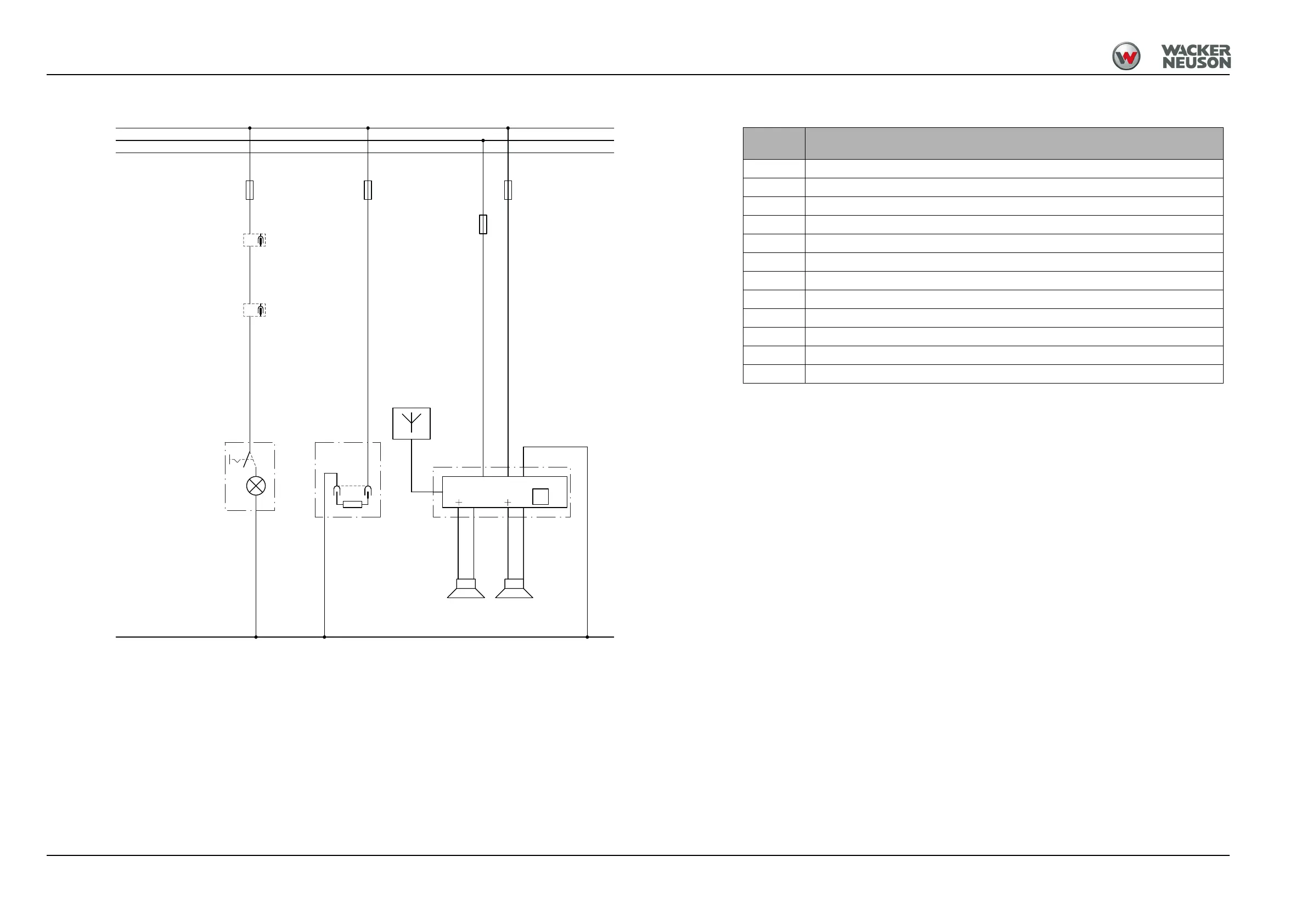

9.21 Electrical diagram – Radio, cigarette lighter, interior light (FG08-01)
15
50
15
50
31 31
3030
5
2
2
1
4
8
7
6
4
5
3
A001.a
A001.b
E014
X030
RD
X023
RD
BK
XX01
F012
15 A
F013
7.5 A
RD-1,5
BK-1,5
RD
A001
B011
B012
W001
BK
RD
RD/WH
BK/RD BK
BK/RD
BK
F027
15 A
F025
10 A
Assign-
ment
Designation
A001 Radio
B011 Loudspeaker
B012 Loudspeaker
E014 Interior light
F012 Hazard warning system, 12 V power outlet
F013 Interior light
F025 Radio
F027 Radio
W001 Radio aerials
X023 Interior light, number plate light
X030 Cab
XX01 12 V-power outlet fitting
