Waters Alliance e2695 - Page 169

Set separation method parameters
July 29, 2013, 715003794 Rev. B 169
Set absorbance parameters
To enter control parameters for a 2487 or 486 UV/Vis detector:
1. Press the Abs (1) or Abs (2) screen key to display the appropriate
absorbance detector screen.

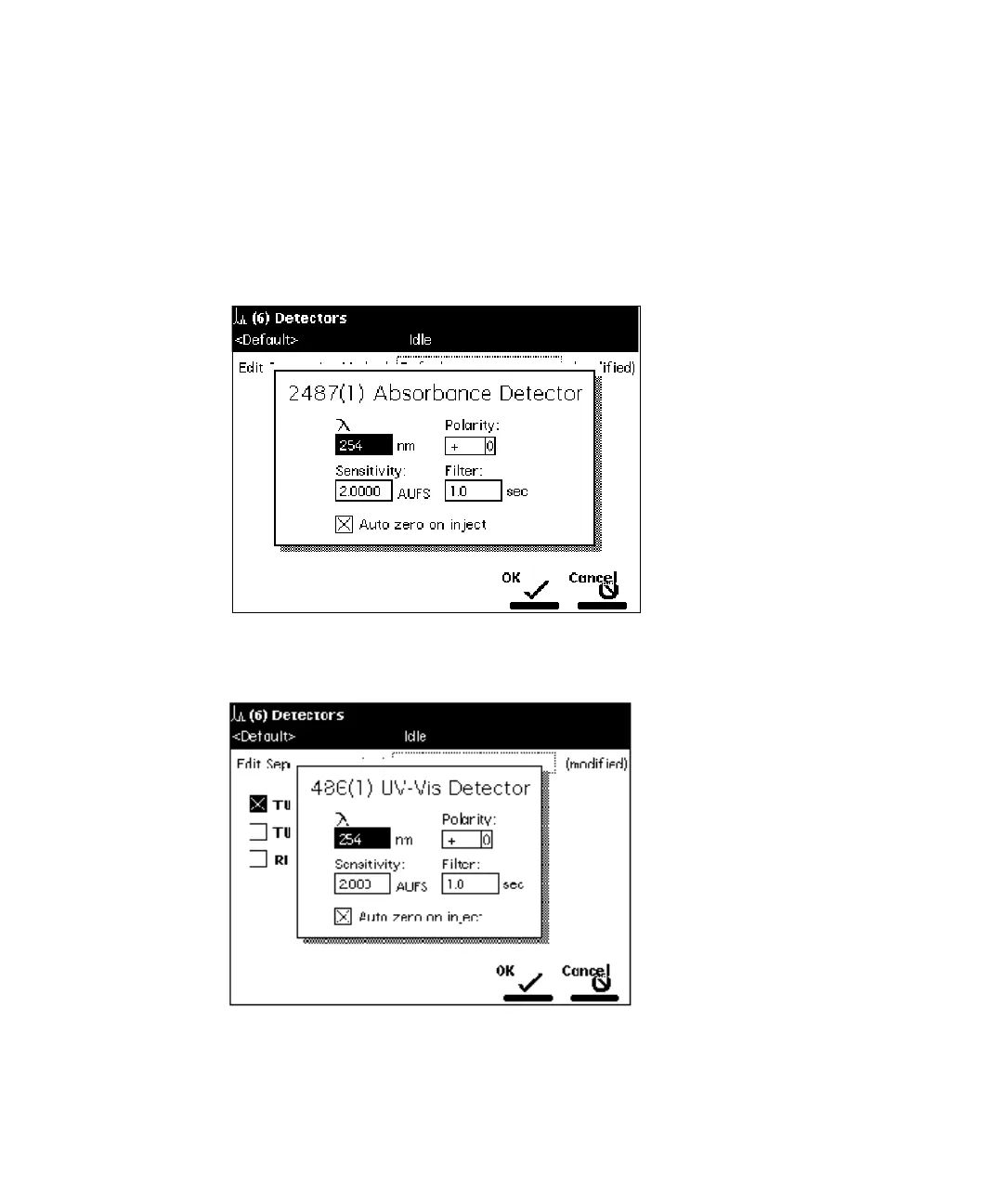

2487(1) UV/Vis Detector screen:
486(1) UV/Vis Detector screen:
2. Enter detector parameters as required and click OK.
