Connect tubing and attachments
July 29, 2013, 715003794 Rev. B 55

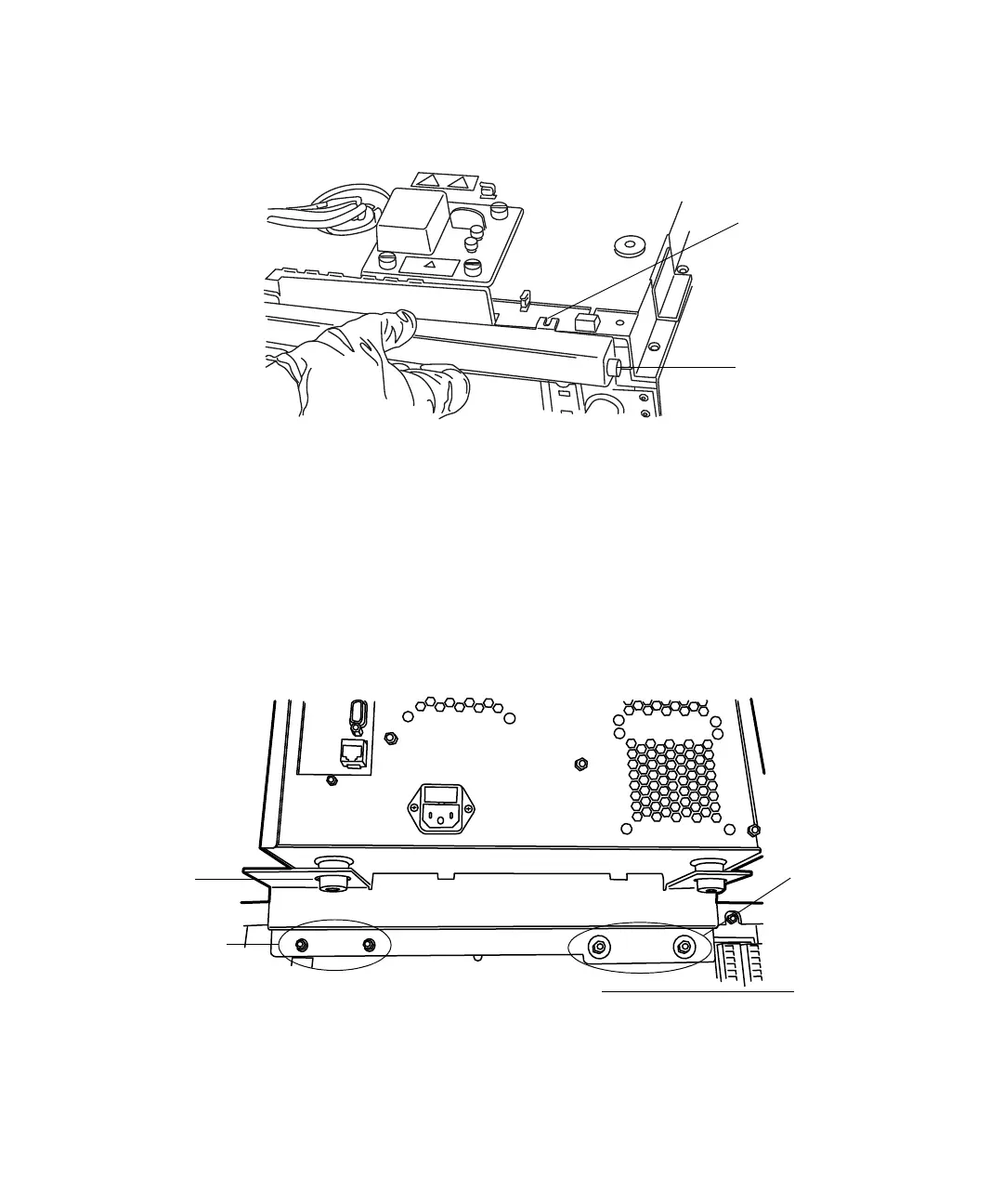

A and C series drip tray installed:
9. Install the elbow fitting on the right end of the drip tray.
To install the detector support bracket and detector:
1. Power-off the separations module and disconnect the column module
cable from the rear panel of the separations module. Refer to the figure
below for locations referenced in the rest of this procedure.
Detector support bracket installed on rear of separations module:
2. Remove the left most M4 star screw that is located just above the
column module connector on the rear panel.
Drip tray mounting
ears (insert T-10
screw here)
Elbow fitting goes
here
M4 star screws
M5 hardware
Foot of detector
in bracket
receptacle
Separations
module
