4 Preparation
4.5.3 Connecting the charging station to line power
1. Remove the protective cap from the line power connection.
2. Connect power supply unit and charger WM 28937 to the line
power connection.
3. Connect the power supply unit and charger to line power.
Result The charging station is connected to line power. The line power
indicator on the charging station is green.
4.5.4 Connecting the charging station to a 12 V
on-board power supply

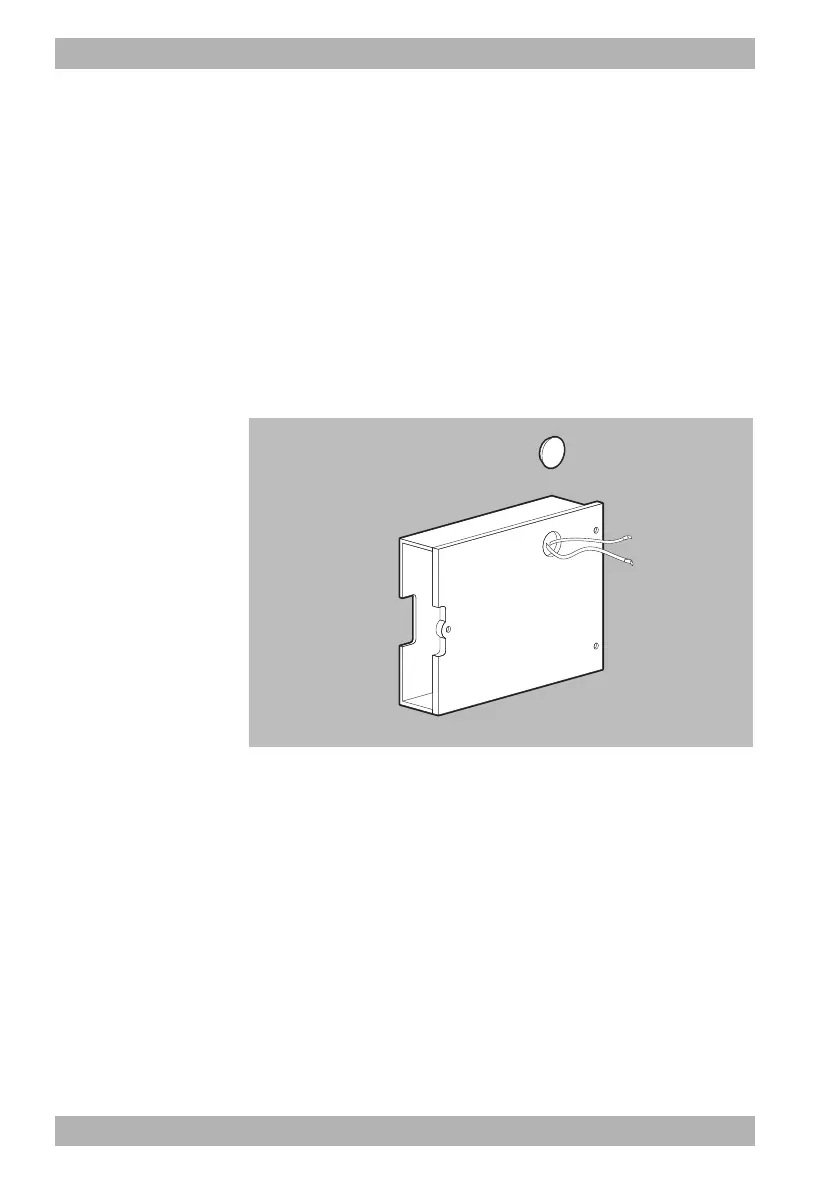

1. Remove the protective cap on the rear of the charging station.
2. Take the 12 V supply cable out of the charging station.
3. Remove the electrical insulation.
4. Seal off the cable openings with liquid adhesive to stop the
12 V supply cable slipping back into the charging station and
to stop dirt or water penetrating the charging station.
