WM 68401 04/2021
MEDUCORE Standard
2
EN
95

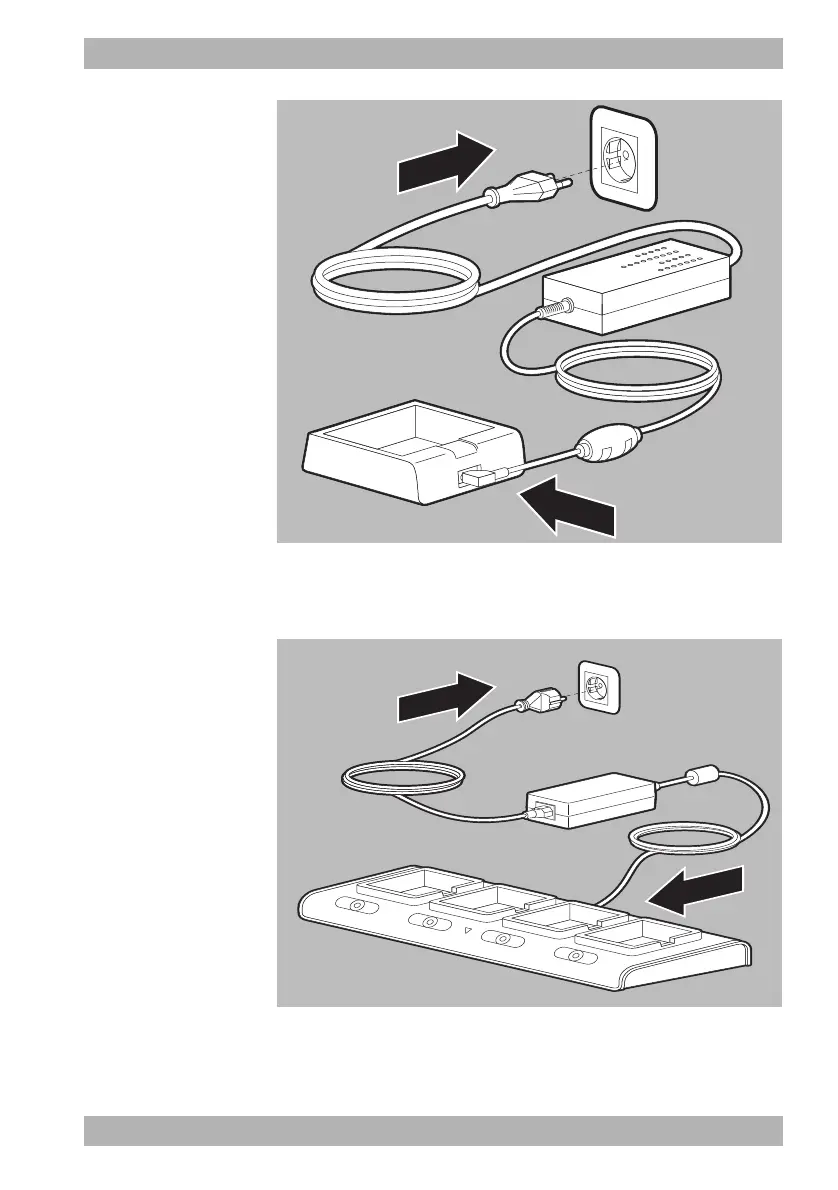

4 Preparation
4.
Connect the charging station fo
r the printer battery to
line
power.
Alternatively:
Connect the quadruple charging st
ation for the printer battery
to line power.
94
96
Table of Contents
Default Chapter
2
Default Chapter
2
Table of Contents
2
1 Introduction
8
About this Document
8
Description of Function
9
2 Safety
11
Explanation of Warnings
9
Intended Purpose
11
Intended Areas of Application
12
Possible Side Effects/Complications
12
Exclusions and Limitations of the Intended Purpose
13
Requirements on the User
13
Safety Information
14
General Instructions
33
3 Description
34
Overview
34
Control Panel
35
Display
37
Symbols in the Display
54
Battery and Battery Status Indicator
57
Charging Station
59
Printer and Printer Display
60
Components and Accessories
61
Transport Options
71
Options
72
4 Preparation
74
Mounting the Device
74
Stowing Components and Accessories
76
Connecting a Power Supply
83
Using the Battery
86
Using the Charging Station
89
Using an SD Card
92
Preparing Printer (Only with Printing Option)
94
5 Function Check
103
Carrying out a Function Check
104
Intervals
104
Uploading Function Check to WEINMANN Connect
112
Checking ECG Cables
113
Checking NIBP Cuff and NIBP Connecting Tube
116
Carrying out a Function Check on the Printer (Only with Printing Option)
117
6 Operation
118
Switching on the Device
118
Navigating in the Device
119
Switching the Device off
119
Selecting Patient Group
120
Preparing for Shock Delivery
122
Semi-Automatic Defibrillation in AED Mode with Defibrillation Electrodes
130
Manual Defibrillation (Only with Manual Defibrillation Option)
137
Cardioversion (Only with Cardioversion Option)
145
Pulse Oximetry Monitoring
157
6-Lead ECG Monitoring
164
12-Lead ECG Recording and Assessment (Only with 12-Lead ECG Option)
170
Non-Invasive Blood Pressure Measurement (NIBP Measurement)
182
Using Audio Alarm Output
193
Changing the Volume of the Device
194
Saving Event Manually in the Session Data Set
194
Printing Ecgs and Reports (Only with Printing Option)
196
Analyzing Sessions
205
Reprocessing the Device after Use
211
Uploading Data to an External Device Via Bluetooth ® Interface (Only with Bluetooth ® Data Transmission Option)
212
Archiving Session Data
213
Using Service Data
216
7 Disassembling
218
Disassembling the Power Supply
218
Disassembling Defibrillation Electrodes/Paddles and Master Cable
221
Disassembling Pulse Oximetry Sensor and Pulse Oximetry Sensor Connecting Cable
222
Disassembling ECG Cable
224
Disassembling the NIBP Cuff and NIBP Connecting Tube
225
Disassembling the Device from the Protective Transport Bag and the Retaining Plate
227
Disassembling the Device from the Portable Unit
229
8 Hygienic Reprocessing
230
Intervals
232
Preparing Hygienic Reprocessing
232
Cleaning Parts Manually
233
Disinfecting Parts by Wiping
236
Preparing Parts for Reuse
238
Subjecting Bags to Hygienic Reprocessing
238
Cleaning and Disinfection Plan
240
9 Application Menu
248
Navigating the Application Menu
248
Menu Structure
249
Settings
250
Navigating the User Menu
252
10 User Menu
252
Menu Structure
254
Settings
255
11 Alarms and Faults
268
General Instructions
268
Alarm Messages
271
Faults
278
12 Configuration by the Operator
290
Enabling Options
290
Pair Printer with Device (Only with Printing Option)
290
Configuring Default Network
292
Registering the Device with WEINMANN Connect
298
Configuring E-Mail Delivery 12-Lead ECG (Only with E-Mail Delivery 12-Lead ECG Option)
299
Pairing the Device with an External Device Via the
302
Transferring the Device Configuration to Another Device
303
Carrying out a Software Update
304
13 Operator Menu
306
Activating the Operator Menu
307
Navigating the Operator Menu
309
AED Settings
310
Alarm Settings
314
Manual Mode Settings (Only with Manual Defibrillation Option)
321
ECG Settings
324
Spo 2 Settings
327
NIBP Settings
329
Printer Settings (Only with Printing Option)
332
12-Lead ECG Settings (Only with 12-Lead ECG Option)
335
Communication Settings
338
System Settings
342
Device Information
349
14 Maintenance
352
General Instructions
352
Intervals
352
Sending in the Device
353
15 Storage
354
Storing the Device
354
Storing the Battery
355
Storing Printer
356
Storing Printer Battery
356
16 Disposal
357
Electronic Waste
357
Battery/Printer Battery
358
Contaminated Parts
358
17 Scope of Supply
359
Plastics
358
Version Supplied (Example)
359
Accessories and Other Parts
360
18 Technical Data
367
Device
367
Defibrillation Electrodes
370
Paddles
370
Battery
371
Master Cable
371
Power Supply Unit and Charger
371
Charging Station
372
Printer and Printer Paper
372
Cardiobiphasic Defibrillation System
374
6-Lead ECG Monitoring/12-Lead ECG Recording and Assessment
375
Cardiologic ECG Analysis System
376
Pulse Oximetry Monitoring
379
Non-Invasive Blood Pressure Measurement (NIBP Monitoring)
380
Operation/Data Management
380
Alarm Delay Times
381
Electromagnetic Compatibility (EMC)
382
Saving of Session Data
382
The Cardiobiphasic Shock Pulse
386
19 Labeling
389
