wsm M7060 - Wheel Hub; Tire Liquid Injection

GENERAL
M6060, M7060, WSM
G-98

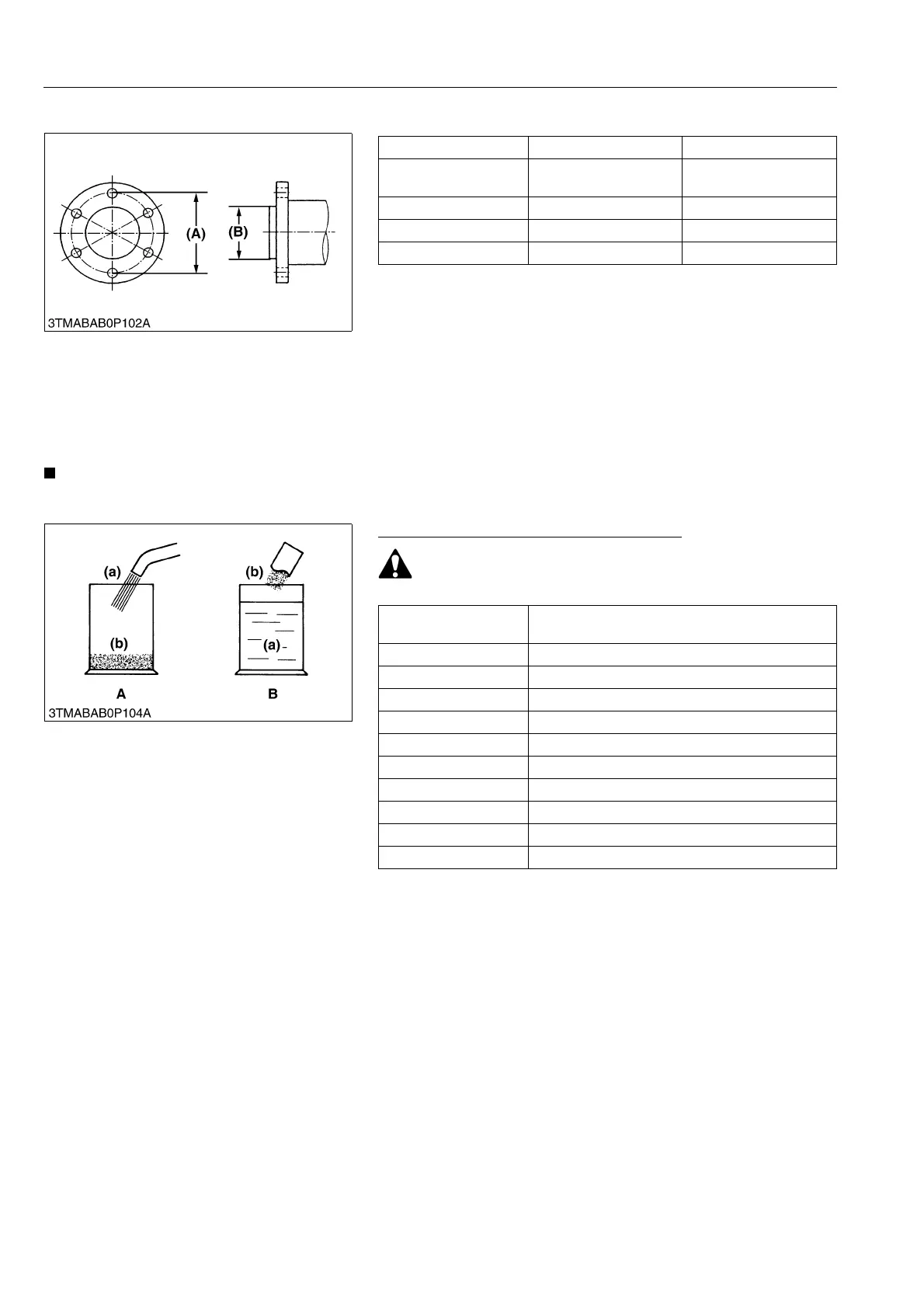

[3] WHEEL HUB
9Y1210828GEG0133US0
[4] TIRE LIQUID INJECTION
Auxiliary weights can be used to increase traction force for plowing in fields or clayey ground.Another way is to
inject water or another liquid, such as a calcium chloride solution in the tires. Water must not be used in winter since
it freezes at 0 °C (32 °F). The calcium chloride solution will not freeze and moreover, affords higher effect than water
since its specific gravity is higher than that of water by about 20 %. Below is an explanation of calcium chloride
solution injection.
IMPORTANT
• Do not fill the front tires with liquid.
9Y1210828GEG0134US0
Preparation of Calcium Chloride Solution
CAUTION
•aaa
9Y1210828GEG0135US0
Front wheel hub Rear wheel hub
Screw circle diameter
(A)
203.2 mm (8 in.) 203.2 mm (8 in.)
Number of screws 8 8
Screws M16 × P1.5 M16 × P1.5
Hub pilot diameter (B) 152.4 mm (6 in.) 152.4 mm (6 in.)
Freezing temp.
Weight of CaCl2 to be dissolved in 100 L
(26.5 U.S.gals., 22.0 Imp.gals.) of water
−5 °C (23 °F) 12 kg (26.4 lbs)
−10 °C (14 °F) 21 kg (46.3 lbs)
−15 °C (5 °F) 28 kg (61.7 lbs)
−20 °C (−4 °F) 34 kg (75.0 lbs)
−25 °C (−13 °F) 40 kg (88.2 lbs)
−33 °C (−22 °F) 44 kg (97.0 lbs)
−35 °C (−31 °F) 49 kg (108.0 lbs)
−40 °C (−40 °F) 52 kg (114.6 lbs)
−45 °C (−49 °F) 56 kg (123.5 lbs)
−50 °C (−58 °F) 61 kg (134.5 lbs)
(a) Water (b) CaCl
2
(Calcium Chloride)
KiSC issued 08, 2013 A
