wsm M7060 - Traveling Switch and Sensor

ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S34
[9] TRAVELING SWITCH AND SENSOR
Range Gear (6th) Switch and Range Gear (High) Switch
Continuity

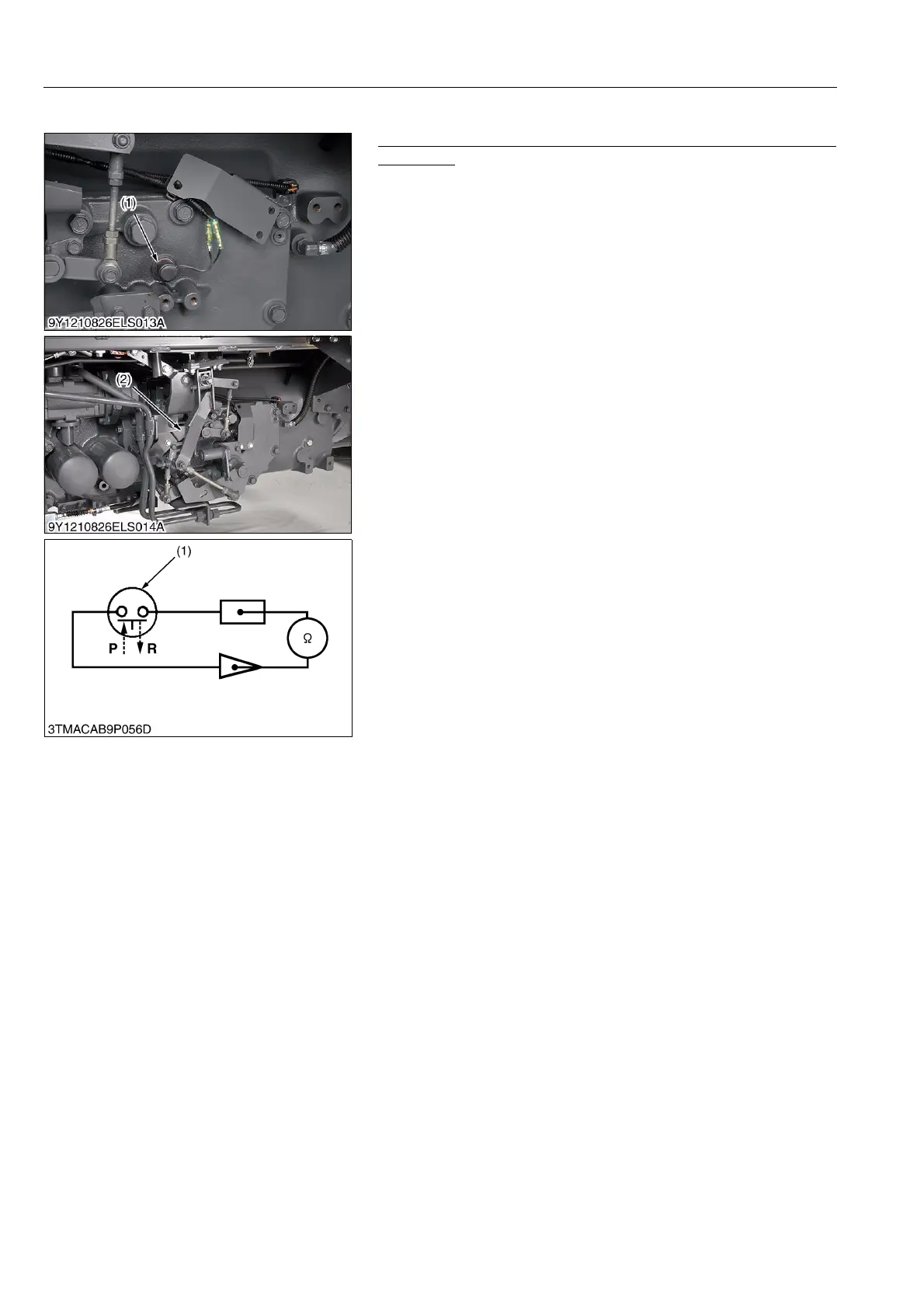

1. Remove the range gear (6th) switch (1) and the range gear
(High) switch (2) continuity switch.
2. Check the continuity with an ohmmeter across the switch
terminals.
3. If it does not conduct or any value is indicated when the switch
is released, the switch is faulty.
4. If infinity is not indicated when the switch is pushed, the switch
is faulty.
9Y1210828ELS0056US0
(1) Range Gear (6th) Switch
(2) Range Gear (High) Switch
P: Pushed
R: Released
KiSC issued 08, 2013 A
