BRAKES
M6060, M7060, WSM
4-M9
2. PARKING BRAKE

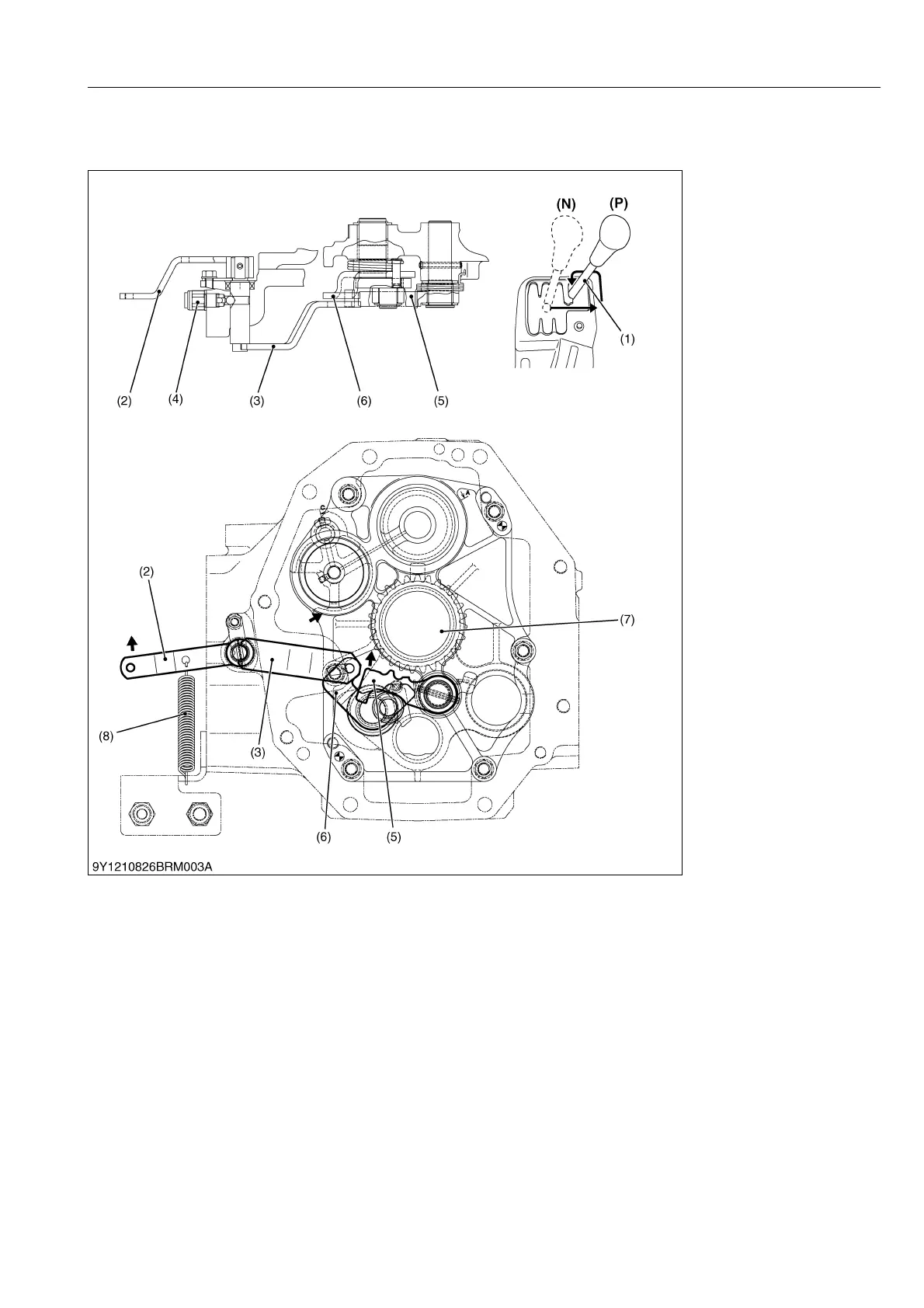

[1] INNER STRUCTURE
The parking brake is gear lock type.
The parking lever (2) is combined with the main gear shift lever (1). When the main gear shift lever (1) is in "ON"
position (P), the parking lever (2) pushes down the parking lever cam (6).
When the main gear shift lever (1) is in "OFF" position (N), parking lever (2), parking lever cam (6) and parking
lever (2) are returned by return springs (8).
9Y1210828BRM0009US0
(1) Main Gear Shift Lever
(2) Parking Lever
(3) Parking Arm
(4) Parking Switch
(5) Parking Gear
(6) Parking Lever Cam
(7) Counter Shaft
(8) Return Spring
(P) At Parking Brake "ON"
(N) At Parking Brake "OFF"
(Neutral Position)
