ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S20

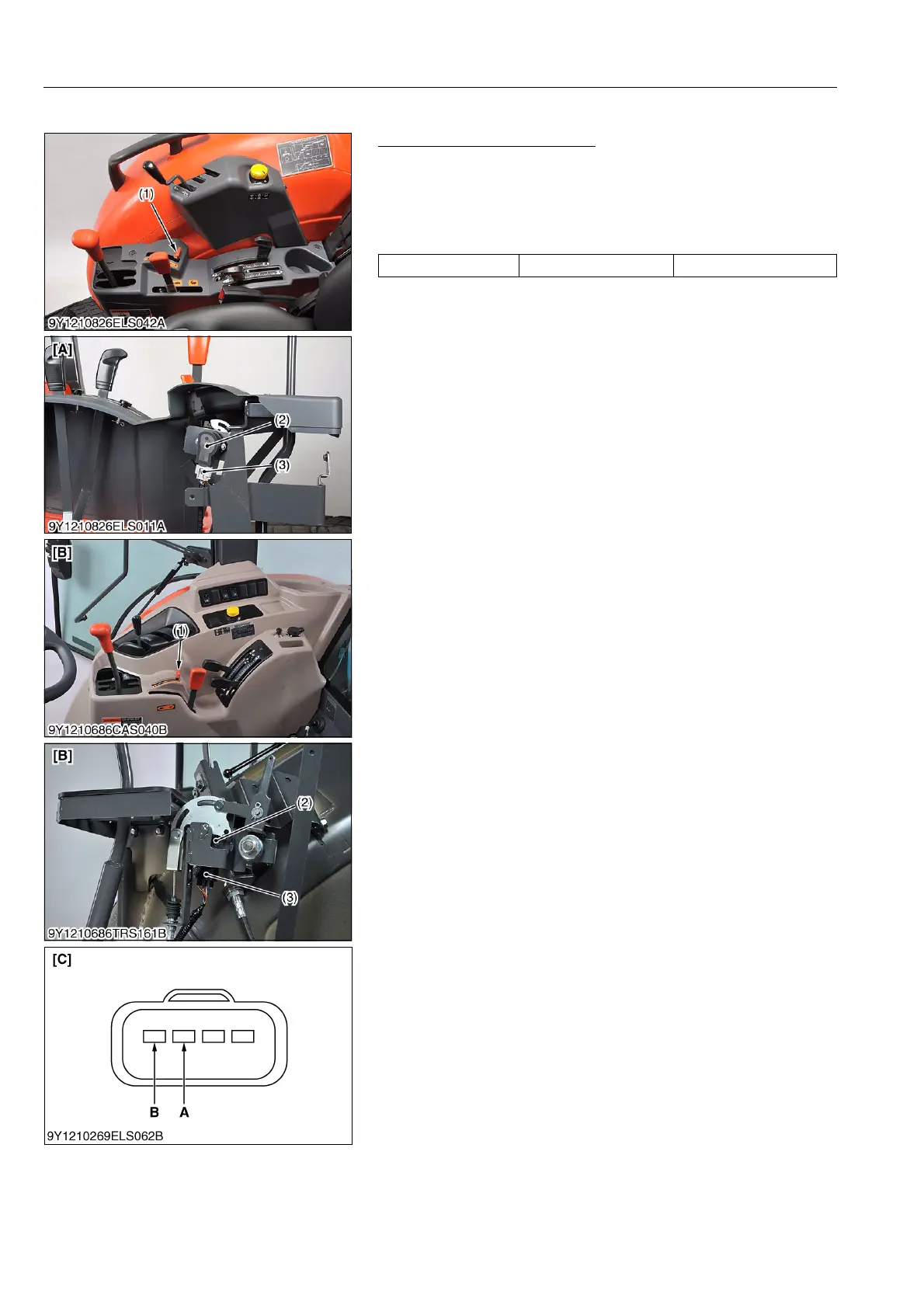

[6] THROTTLE SENSOR
Throttle Sensor Input Voltage
1. Remove the hand throttle lever grip and the throttle sensor
connector (3).
2. Turn the main key switch ON.
3. Check the voltage between terminal A (+) and terminal B (−) of
the wire harness side.
9Y1210828ELS0035US0
Voltage Terminal A –Terminal B 5 V
(1) Hand Throttle Lever
(2) Throttle Sensor
(3) Throttle Sensor Connector
[A] ROPS Model
[B] CABIN Model
[C] Connector (Harness)
A: Terminal A
B: Terminal B
To Next Page
