wsm M7060 - ERROR Mode

ELECTRICAL SYSTEM
M6060, M7060, WSM
8-M23
(1) ERROR Mode
When the tractor occurred the below troubles as
shown as the table of next page, the meter panel of this
tractor displays the displayed error codes.
IMPORTANT
• This error codes are the error which corresponds
to the Tractor ECU. DTC codes are not displayed
on the meter panel.
1. When the error code is displayed, do the decided
procedures.
2. After doing the procedure, there is no error code on
the meter panel.
9Y1210828ELM0007US0

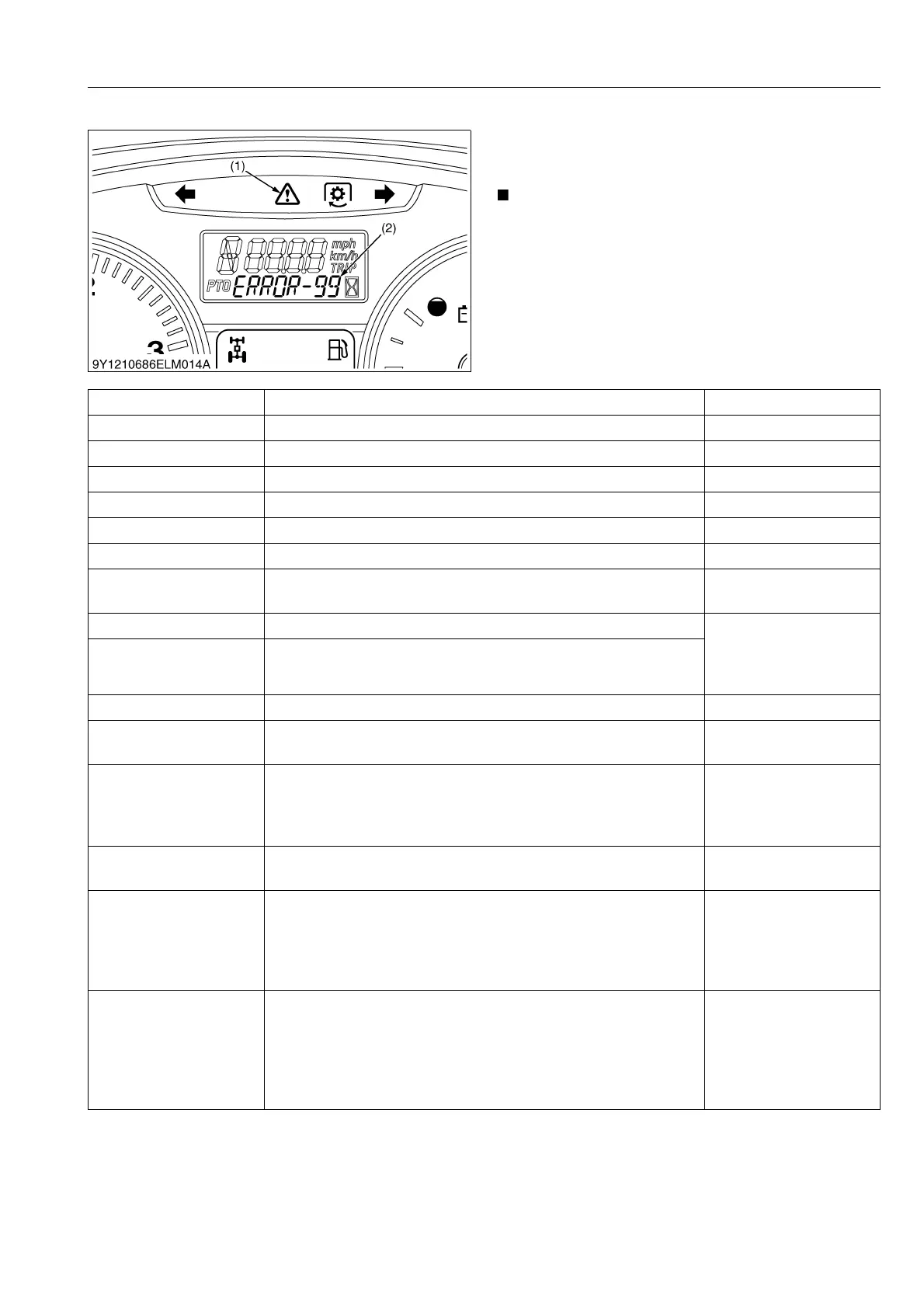

(1) Master System Warning
Indicator
(2) Error Code
Displayed Error Code Trouble Remarks
ERROR-1 Acceleration sensor (main) trouble
ERROR-2 Acceleration sensor (sub) trouble
ERROR-3 Acceleration sensor main/sub phase shifting trouble
ERROR-11 PTO relay trouble
ERROR-12 4-wheel-drive solenoid trouble
ERROR-21 Range gear shift (Hi) switch trouble
ERROR-22
Range gear shift (6th) switch trouble (Main range gear shift
switch)
ERROR-23 Shuttle rotating sensor or switch trouble Range gear shift (Hi)
switch and Range gear
shift (6th) switch (Main
range gear shift switch)
ERROR-24 Machine speed sensor or switch trouble
ERROR-25 DPF regeneration malfunction trouble
ERROR-60 Analog reference supply voltage +5 V trouble
5V power supply
ERROR
ERROR-63 Acceleration and engine adjustment trouble
The tractor ECU
memorizes a wrong
data of the acceleration
sensor and engine rev.
ERROR-99 Communication trouble
CAN Communication
ERROR
Eng NG Engine communication trouble
Engine trouble, etc.
CAN Communication
ERROR between
Engine ECU and
Tractor ECU
ECU NG Tractor ECU communication trouble
Tractor or Meter ECU
trouble, etc. CAN
Communication
ERROR between
Tractor ECU and Meter
ECU.
KiSC issued 08, 2013 A
