wsm M7060 - Brake Piston

BRAKES
M6060, M7060, WSM
4-S15
(7) Brake Piston
• Separating rear axle case from transmission case, refer to 3-S5 and 3-S7.
9Y1210828BRS0023US0

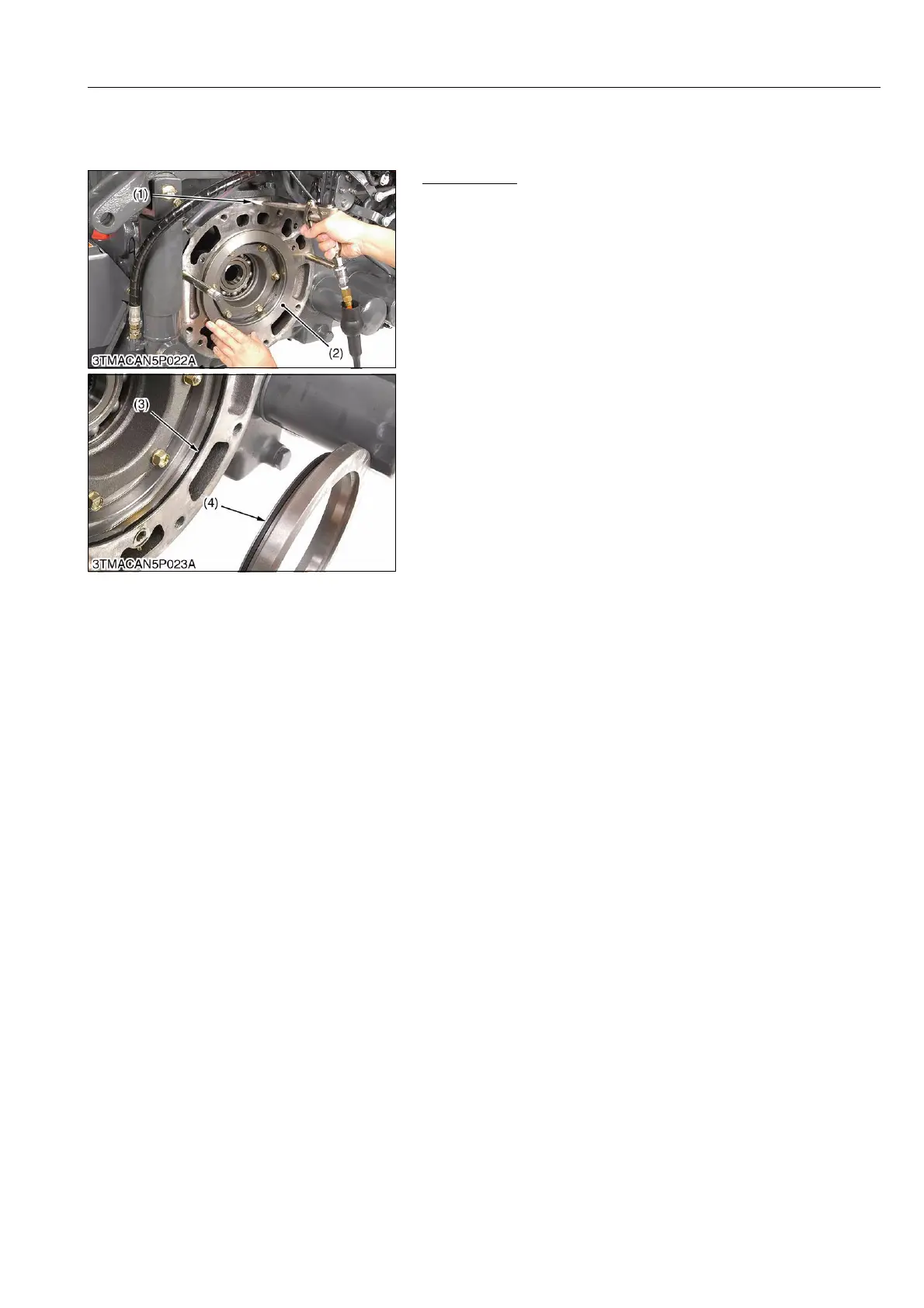

Brake Piston
1. Remove the bleeder.
2. Remove the brake piston with compressed air. (Slowly inject an
air from bleeder hole (1).)
(When reassembling)
• Replace the brake seal 1 and 2 with new one.
• Install the brake seal so as not to twist.
• Be careful not to enter the foreign matter into the seal groove of
inside brake case.
• When installing the brake piston, apply silicon grease to the
brake seals, and tap it in evenly and lightly using a soft hammer.
9Y1210828BRS0024US0
(1) Bleeder Hole
(2) Brake Piston
(3) Brake Seal 1
(4) Brake Seal 2
KiSC issued 08, 2013 A
