(4) Cylinder Head and Valves
Cylinder Head Cover and Glow Plug
1. Remove the glow lead (2) and the glow plugs (1).
2. Remove the cylinder head cover (3).
(When reassembling)
• Check to see that the cylinder head cover gasket is not
damaged.
• Tighten the head cover mounting screws to specified torque.
• Do not damage injector QR code tags (4) when installing
cylinder head cover (3).
• Replace the gasket of cylinder head cover with a new one.
• Adjust the direction of the ditch to the terminal side when the
seal (5) is installed in the glow plug (1).
• After installing the glow plug (1), make sure that the seal (5) was
set to the specified position.
9Y1210828ENS0050US0
Tightening torque
Cylinder head cover screw
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft
Glow lead mounting nut
0.98 to 1.7 N·m
0.10 to 0.18 kgf·m
0.73 to 1.3 lbf·ft
Glow plug
7.7 to 9.3 N·m
0.78 to 0.95 kgf·m
5.7 to 6.8 lbf·ft

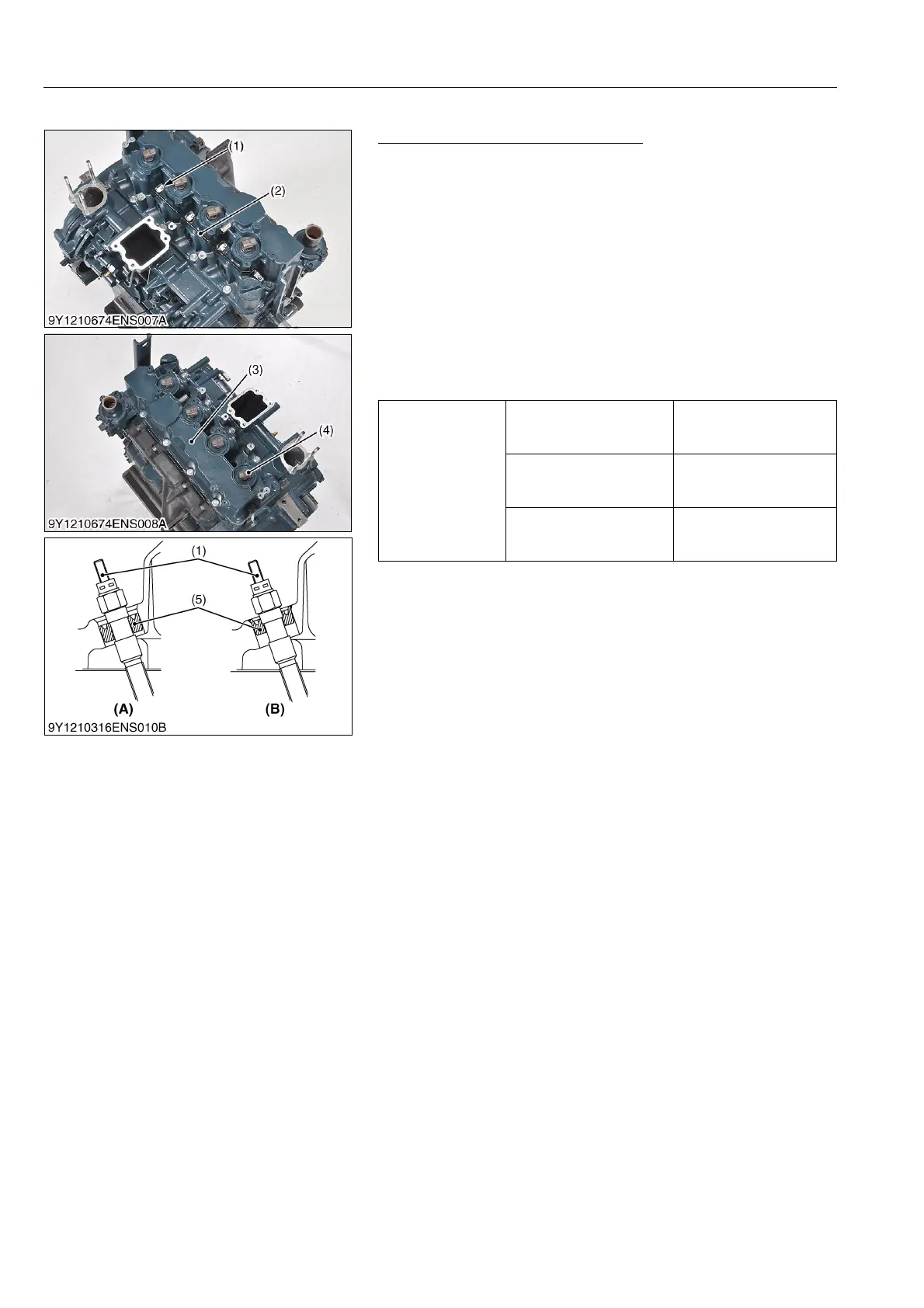

(1) Glow Plug
(2) Glow Lead
(3) Cylinder Head Cover
(4) Injector QR Code Tag
(5) Seal
(A) Good
(B) Bad
