CABIN
M6060, M7060, WSM
9-S52

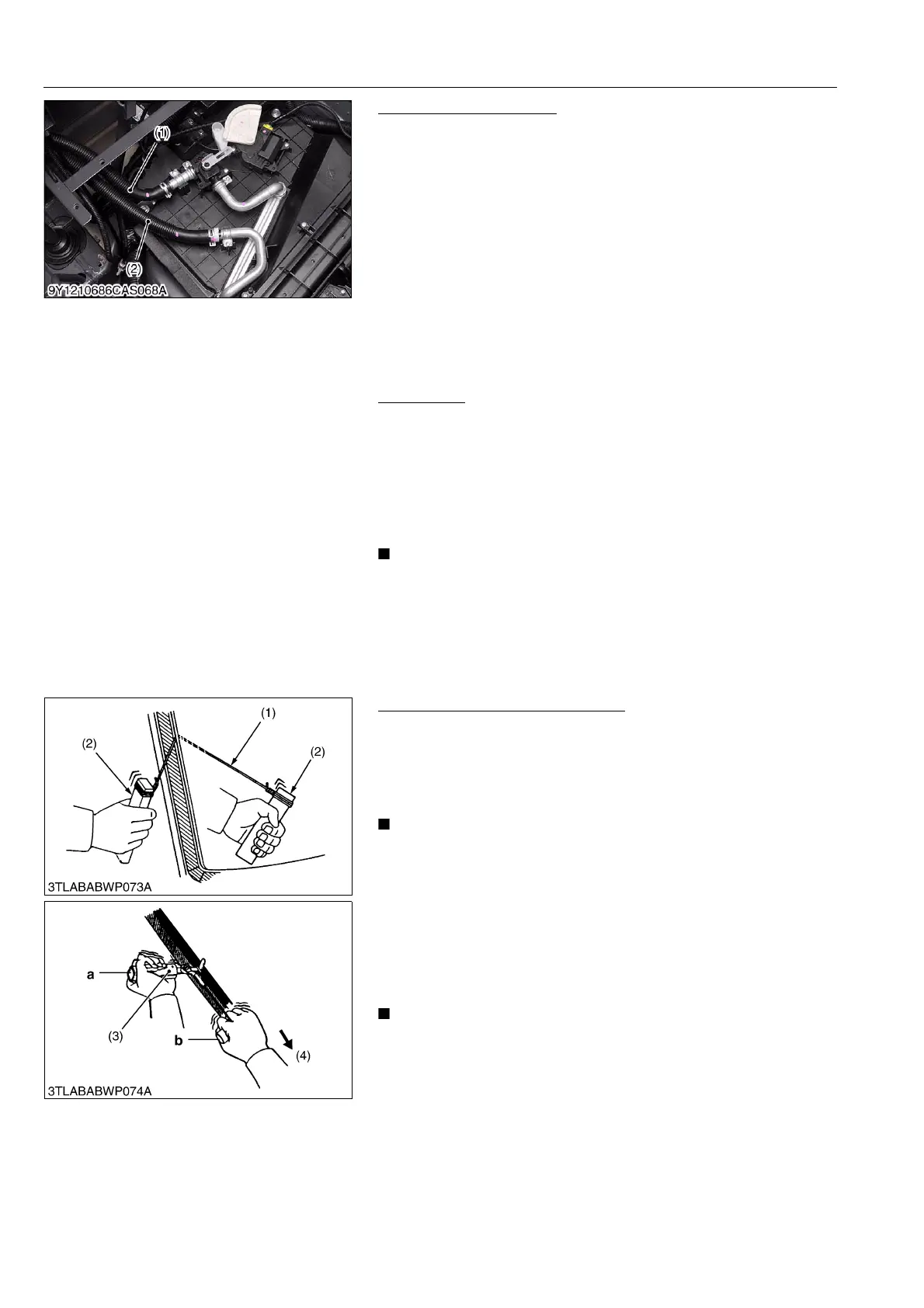

Removing Heater Hoses
1. Disconnect the heater hoses (1) and (2).
2. Pull out the heater hoses (1) and (2) from the bottom of the
cabin.
3. Remove the heater hoses (1) and (2).
(When reassembling)
• When connecting the heater hose with A/C unit, hose should be
put into the A/C unit pipe more than 30 mm (1.2 in.).
• Be sure to fix the heater hoses (1) and (2) to the original
position.
Note the inlet hose and outlet hoses.
9Y1210828CAS0094US0
(6) Cab Windshield
Preparation
1. Prepare the followings.
• Cutter knife: 1 piece
• Scraper: 1 piece
• Gun for coating: 1 piece
• Sika Tack-Ultrafast or equivalent
• Sika-cleaner No. 1
• Gummed tape
• Sika Tack-Ultrafast and cleaner No. 1 are made by Sika
Corporation.
• These materials can not be provided by Kubota
Corporation.
• Therefore, please find the local made equivalent materials
in your country and use them when you need.
9Y1210828CAS0095US0
Before Replacing Windshields (1)
[In case of using piano wire (When glass is cracked)]
1. Thread the piano wire from the inside of cabin. Tie its both ends
to a wooden blocks or the like. (See the left figure.)
2. Pull the piano wire inward/outward alternately to cut the
adhered part.
• Do not let the piano wire make sliding contact with the edge
of glass plate forcibly.
[In case of using cutter knife (When glass is totally crushed
finely)]
1. Insert the knife (3) into the adhered part.
2. Keep the edge of knife blade square to the glass edge at the
part "a". Slide the knife blade along the glass surface and the
edge. Pull the part "b" in the direction parallel to the glass edge
to cut them off.
• Find a wider gap between the glass and body.
• Be careful of handling the cutter knife not to damage your
hand.
9Y1210828CAS0096US0
(1) Heater Hose 1 (2) Heater Hose 2
(1) Piano Wire
(2) Wood Peace
(3) Cutter Knife
(4) Pulling
