ELECTRICAL SYSTEM
M6060, M7060, WSM
8-M19
3. INSTRUMENT PANEL

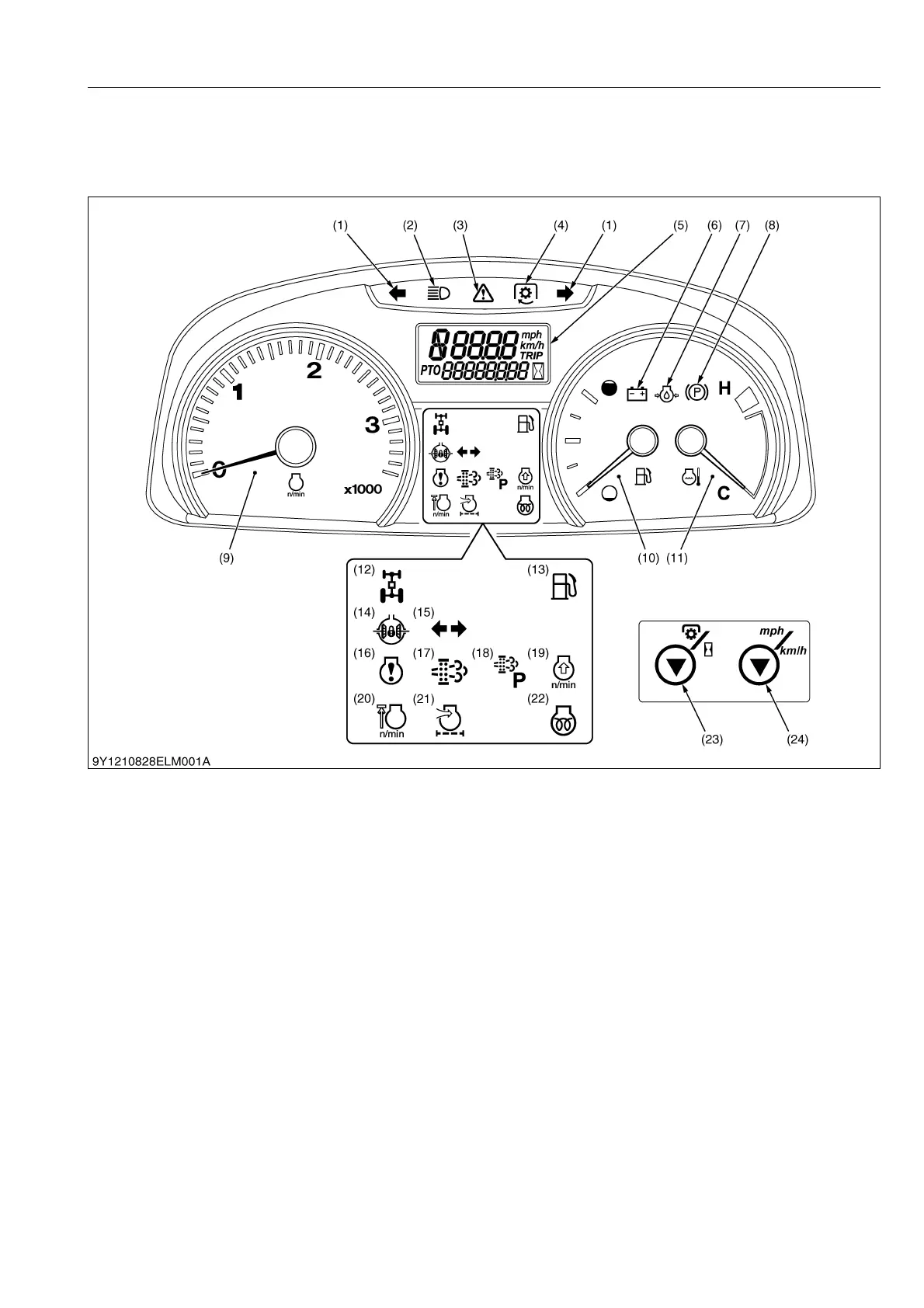

[1] INDICATION ITEMS OF METER PANEL
(1) ROPS Model
9Y1210828ELM0003US0
(1) Hazard / Turn Signal Indicator
(2) High Beam Indicator
(3) Master System Warning
Indicator
(4) PTO Clutch Indicator
(5) Liquid Crystal Display
(6) Electrical Charge Warning
Indicator
(7) Engine Oil Pressure Warning
Indicator
(8) Parking Brake Warning
Indicator
(9) Tachometer
(10) Fuel Gauge
(11) Coolant Temperature Gauge
(12) 4WD Indicator
(13) Fuel Level Indicator
(14) Rear Wheel Differential Lock
Indicator
(15) Trailer Indicator
(16) Engine Warning Indicator
(17) Regeneration Indicator
(18) Parked Regeneration
Indicator
(19) Engine RPM Increase
Indicator
(20) Rev-limiter Indicator
(21) Air Cleaner Indicator
(22) Heater Indicator
(23) PTO / Hour Meter Select
Switch
(24) Travel Speed Select Switch
KiSC issued 08, 2013 A
