wsm M7060 - Removing Air Conditioner Unit

CABIN
M6060, M7060, WSM
9-S45
(3) Removing Air Conditioner Unit
Draining Coolant
• See page G-40.
9Y1210828CAS0076US0
Discharging Refrigerant
• See page 9-S18.
9Y1210828CAS0077US0

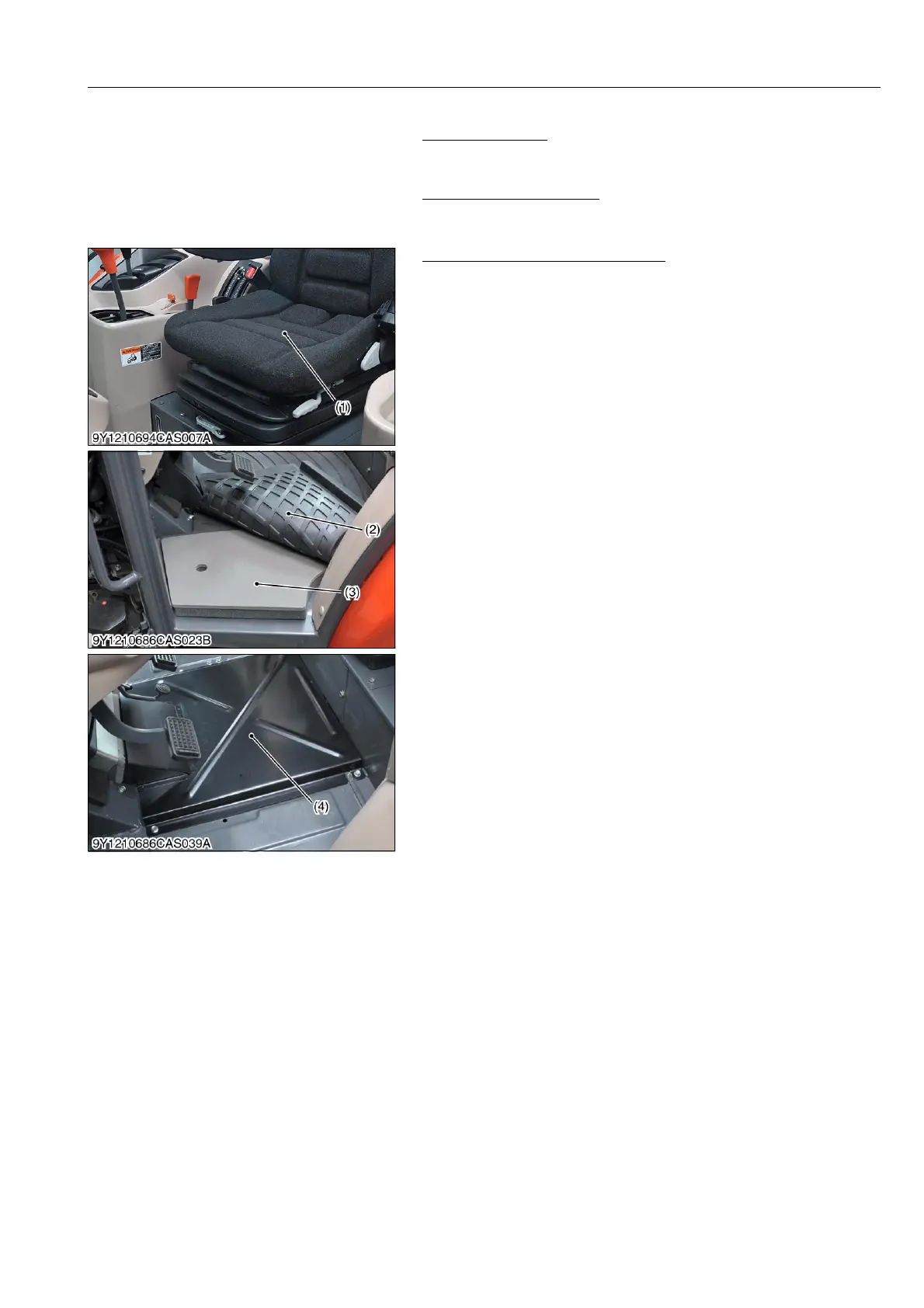

Seat, Floor Mats and Floor Cover
1. Disconnect the battery negative cable from battery.
2. Remove the seat (1).
3. Remove the floor mat 1 (2) and mat 2 (3).
4. Remove the floor cover (4).
9Y1210828CAS0078US0
(1) Seat
(2) Floor Mat 1
(3) Floor Mat 2
(4) Floor Cover
KiSC issued 08, 2013 A
