wsm M7060 - Fixing Flow

BRAKES
M6060, M7060, WSM
4-M10
[2] FIXING FLOW

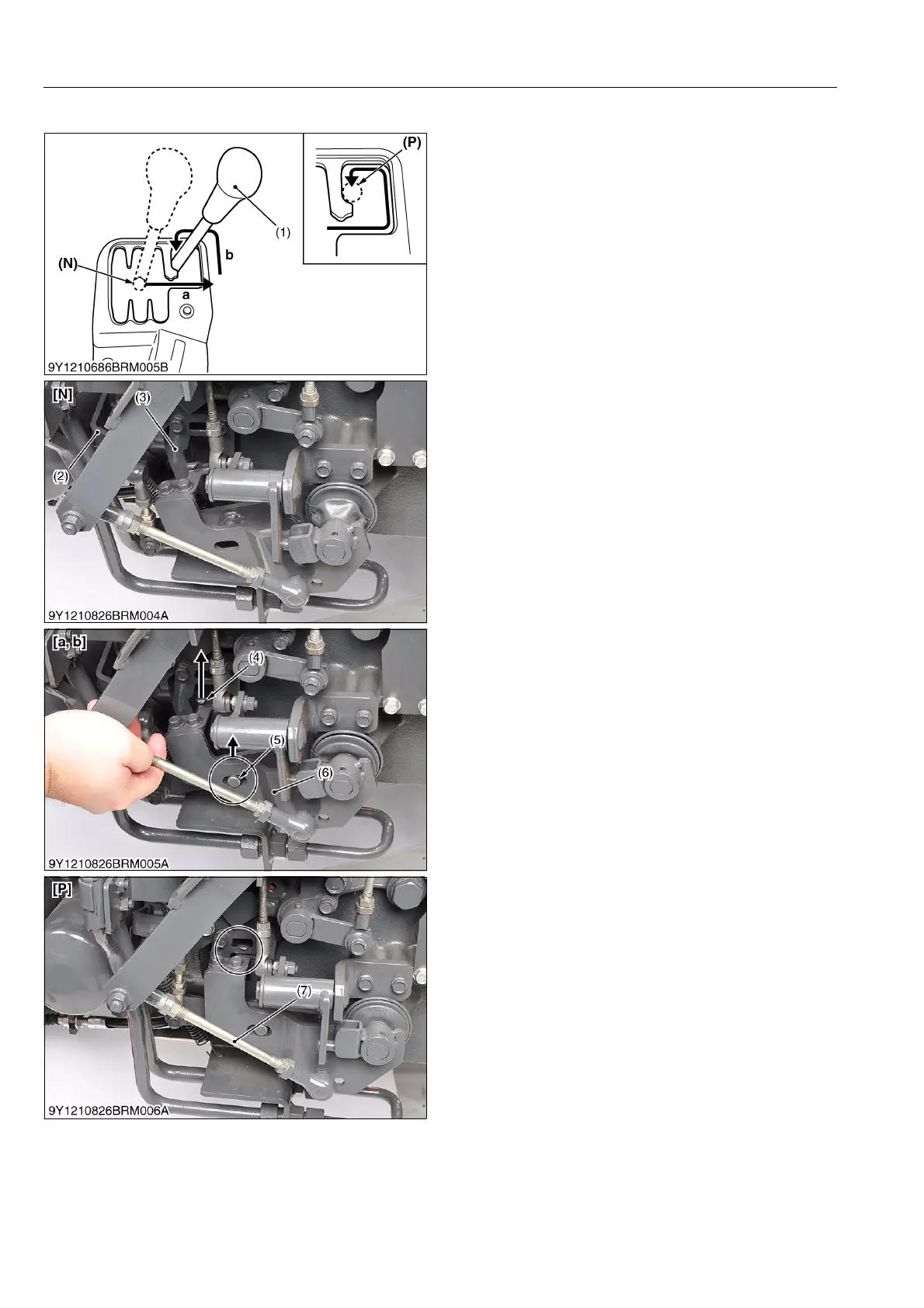

The parking gear brake lever is combined with the
main gear shift lever 1 (1) so the parking gear brake and
main gear shift can not be operated at the same time.
When the main gear shift lever 1 (1) is shifted in the
selecting direction "a" and "b", the parking plate 2 (6)
shifts up with the pin (5).
Then the hanging point (4) with the parking plate 2
(6) fix the parking plate 1 (3). When the main gear shift
lever 1 (1) selects the (P) at parking brake "ON" position,
the hanging point (4) set with the parking plate 1 (3).
(To be continued)
(1) Main Gear Shift Lever 1
(2) Main Gear Shift Lever 2
(3) Parking Plate 1
(4) Hanging Point
(5) Pin
(6) Parking Plate 2
(7) Main Gear Shaft Rod
(P) At Parking Brake "ON"
[a, b]From Neutral to Parking
Position
(N) At Parking Brake "OFF"
(Neutral Position)
KiSC issued 08, 2013 A
