TRANSMISSION
M6060, M7060, WSM
2-S20

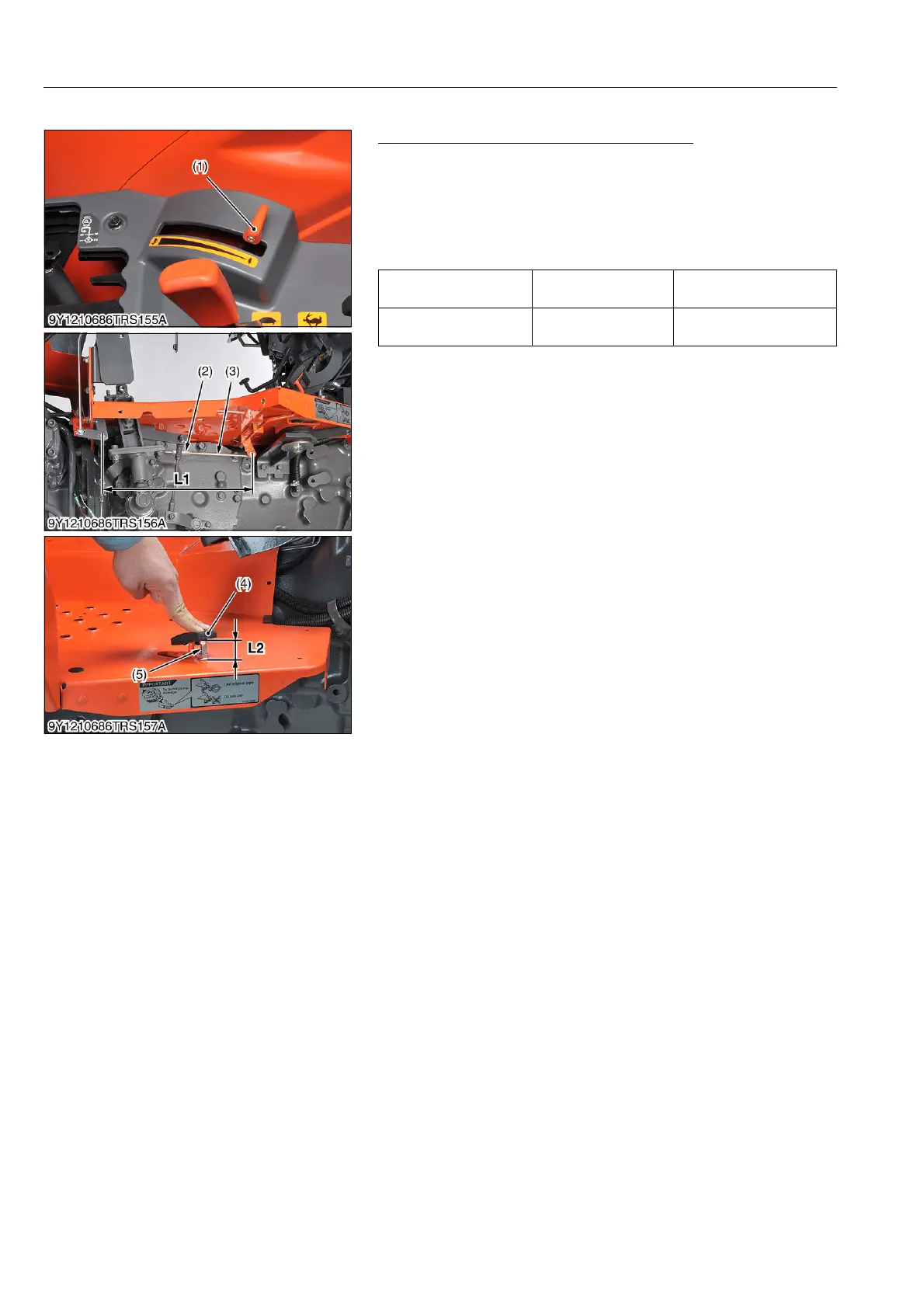

(2) Adjusting Accelerator Lever and Wire
Adjusting Accelerator Lever (ROPS Model)
1. When shifting the hand accelerator lever (1) to low engine
speed and the accelerator pedal (4) is neutral position, adjust
the turnbuckle (2) with accelerator rod (3) to hold the engine
speed to minimum.
2. Touch the accelerator pedal (4) to bolt (5) and adjust the length
of bolt (5) to hold the engine speed to maximum.
9Y1210828TRS0015US0
Length of accelerator rod
"L1"
Reference value
310 mm
12.2 in.
Length of bolt "L2" Reference value
30 mm
1.2 in.
(1) Hand Accelerator Lever
(2) Turnbuckle
(3) Accelerator Rod
(4) Accelerator Pedal
(5) Bolt
KiSC issued 08, 2013 A
