TRANSMISSION
M6060, M7060, WSM
2-S21

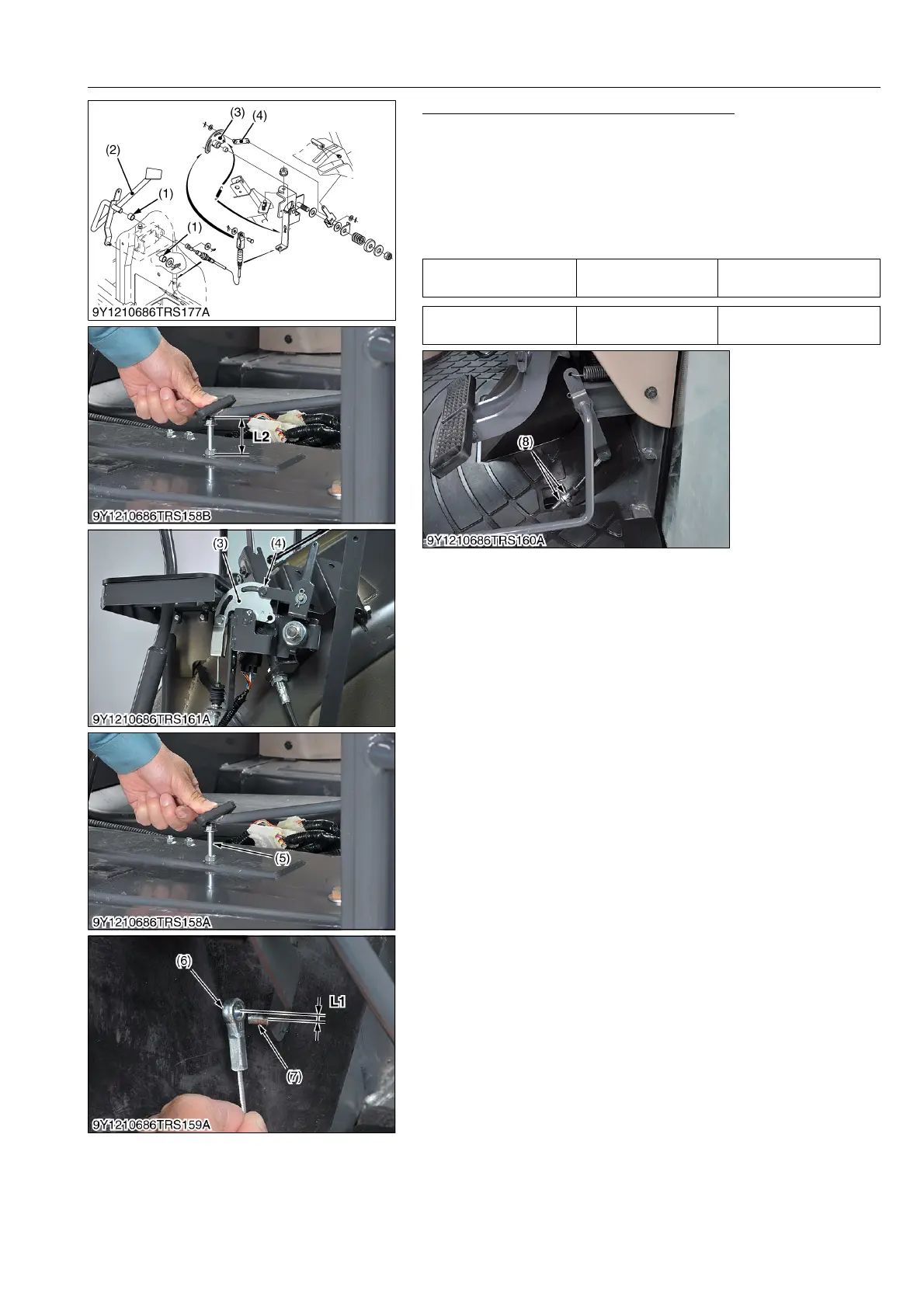

Adjusting Accelerator Wire (CABIN Model)
1. Apply grease to the bushes (1) with accelerator pedal (2).
2. When touching the accelerator pedal (2) to the bolt (5), adjust
length of bolt "L2", so that the accelerator sensor lever (3)
touches link pin (4).
3. Touch the accelerator pedal (2) to bolt (5), and fix the wire
retaining nuts (8) to be a length (L1) between center of wire end
(6) and center of accelerator pedal pin (7) as shown photo.
9Y1210828TRS0016US0
Accelerator wire length
"L1"
Factory specification
0 to 5 mm
0 to 0.1 in.
Length of bolt "L2" Reference value
55 mm
2.2 in.
(1) Bush
(2) Accelerator Pedal
(3) Accelerator Sensor Lever
(4) Link Pin
(5) Bolt
(6) Wire End
(7) Accelerator Pedal Pin
(8) Wire Retaining Nut
KiSC issued 08, 2013 A
