ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S18

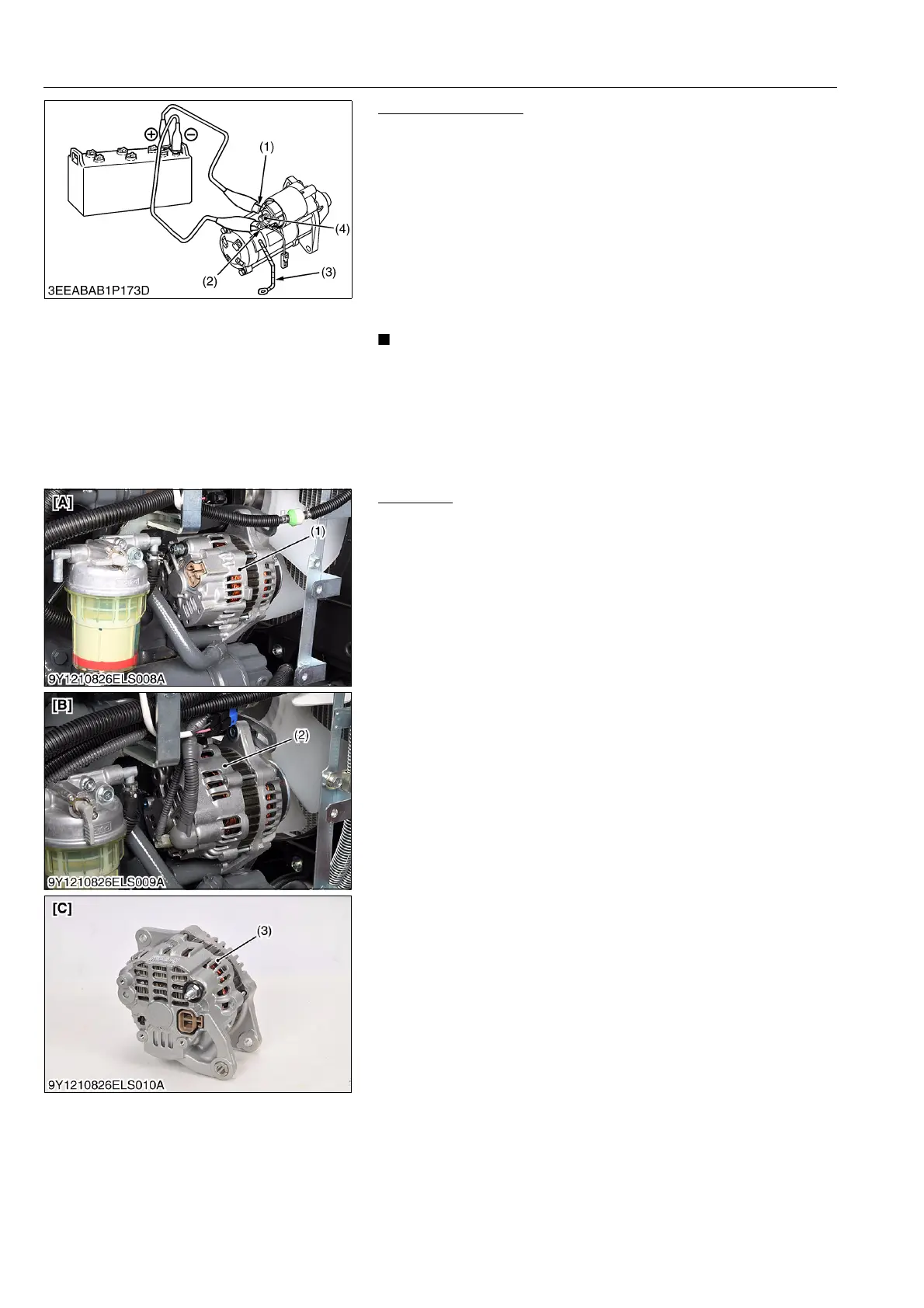

Magnet Switch Test
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the
starter terminal B (4).
3. Remove the starter from the engine.
4. Disconnect the connecting lead (3) from the starter terminal C
(2).
5. Connect a jumper lead from the starter terminal S (1) to the
battery positive terminal post.
6. Connect a jumper lead momentarily between the starter
terminal C (2) and the battery negative terminal post.
7. If the pinion gear does not pop out, check the magnetic switch.
NOTE
• This test should be carried out for a short time, about 3 to
5 seconds.
9Y1210828ELS0030US0
[5] ALTERNATOR
Alternator
1. Check and remove the connector of the alternator.
2. Perform the following procedure.
9Y1210828ELS0031US0
(1) Terminal S
(2) Terminal C
(3) Connecting Lead
(4) Terminal B
(1) Alternator (45 A)
(2) Alternator (60 A)
(3) Alternator (100 A)
[A] 45 A Model
[B] 60 A Model
[C] 100 A Model
