wsm M7060 - Check Points of Every 3000 Hours; Check Points of Every 1 Year

GENERAL
M6060, M7060, WSM
G-38
Replacing Oil Separator Element
CAUTION
To avoid personal injury:
• Be sure to stop the engine before replacing the oil
separator element.
1. Remove the cover and remove the element. Wipe off oil and the
carbon in the case with a clean rag.
2. Fit a new oil separator element.
3. Tighten the cover.
9Y1210828GEG0045US0
[11] CHECK POINTS OF EVERY 3000 HOURS
Checking Turbocharger
• See page 1-S16.
9Y1210828GEG0046US0
Checking Supply Pump
• See page 1-S41.
9Y1210828GEG0047US0
Checking EGR System
• See page 1-S17.
9Y1210828GEG0048US0
Cleaning DPF Muffler
• Refer to the DPF Handling Manual (9Y111-08131).
9Y1210828GEG0049US0
[12] CHECK POINTS OF EVERY 1 YEAR
Replacing Air Cleaner Primary Element and Secondary
Element
• See page G-27.
9Y1210828GEG0050US0
Checking Air Conditioner Pipe and Hose (CABIN Model)
1. Check to see that all lines and hose clamps are tight and not
damaged.
2. If hoses and clamps are found worn or damaged, replace or
repair them at once.
9Y1210828GEG0051US0

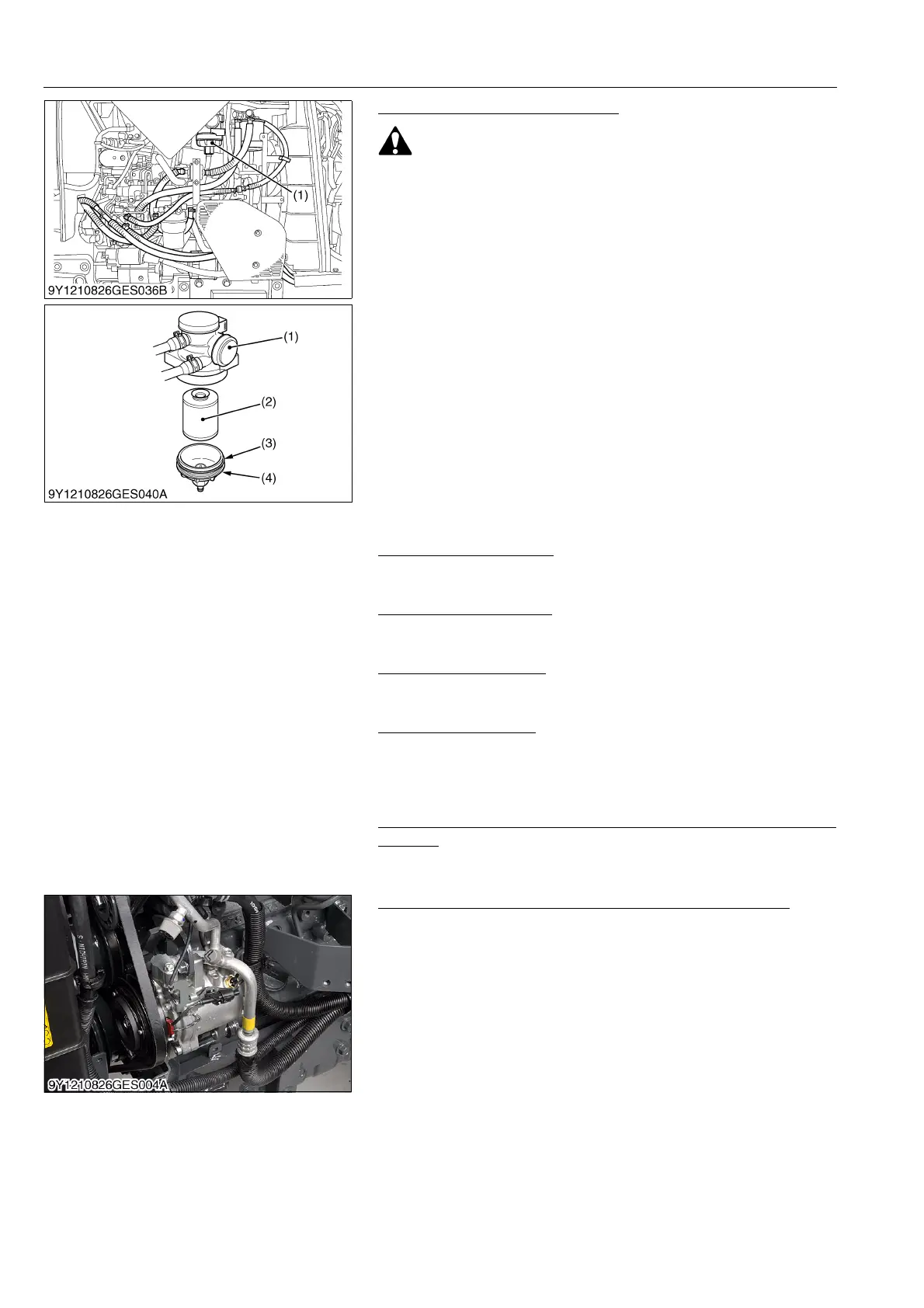

(1) Oil Separator
(2) Oil Separator Element
(3) Gasket
(4) Cover
