GENERAL
M6060, M7060, WSM
G-95
(Continued)
[M7060-SPA]
9Y1210828GEG0130US0

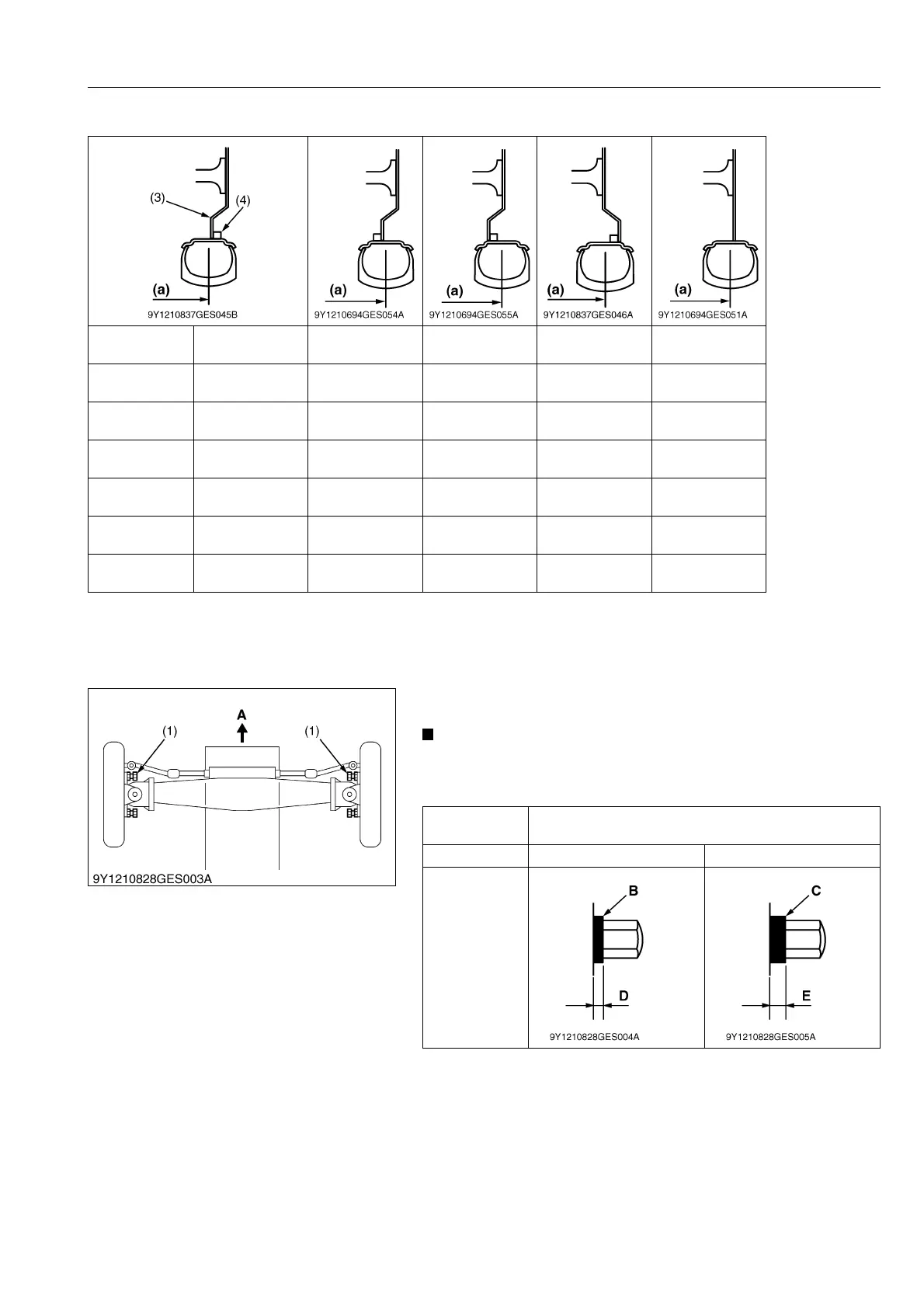

(2) Adjusting Front Wheel Turning Stopper Bolt (For SPAIN Model)
1. Adjust the right and left front stoppers according to the front
wheel turning angle.
IMPORTANT
• Always check if tires contact with tractor or loader frame
assemblies.
• Adjust turning angle with provided stoppers if necessary.
9Y1210828GEG0131US0
9.5-20
1372 mm
54.02 in.
1385 mm
54.53 in.
–
1398 mm
55.04 in.
–
12.5/80-18 – – – –
1411 mm
55.55 in.
320/70R20
1389 mm
54.68 in.
1366 mm
53.78 in.
–
1416 mm
55.75 in.
–
9.5-24 – –
1325 mm
52.17 in.
––
300/70R20
1390 mm
54.72 in.
1367 mm
53.82 in.
–
1417 mm
55.79 in.
–
8.3R24 – –
1327 mm
52.24 in.
––
9.5R24 – –
1319 mm
51.93 in.
––
(3) Front Wheel Disc (4) Front Wheel Rim (a) Tread
Front stopper bolts (ex. LH stopper bolt)
(Case of 9.5R24 tire only)
Angle 0.77 rad (44 °) 0.70 rad (40 °)
Stopper
(1) Stopper Bolt A : Front
B : 5 mm (0.2 in.) Collar
C : 9 mm (0.4 in.) Collar
D : 5 mm (0.2 in.) Factory Setting
E : 9 mm (0.4 in.)
