wsm M7060 - Clutch Pedal Free Travel

TRANSMISSION
M6060, M7060, WSM
2-S10

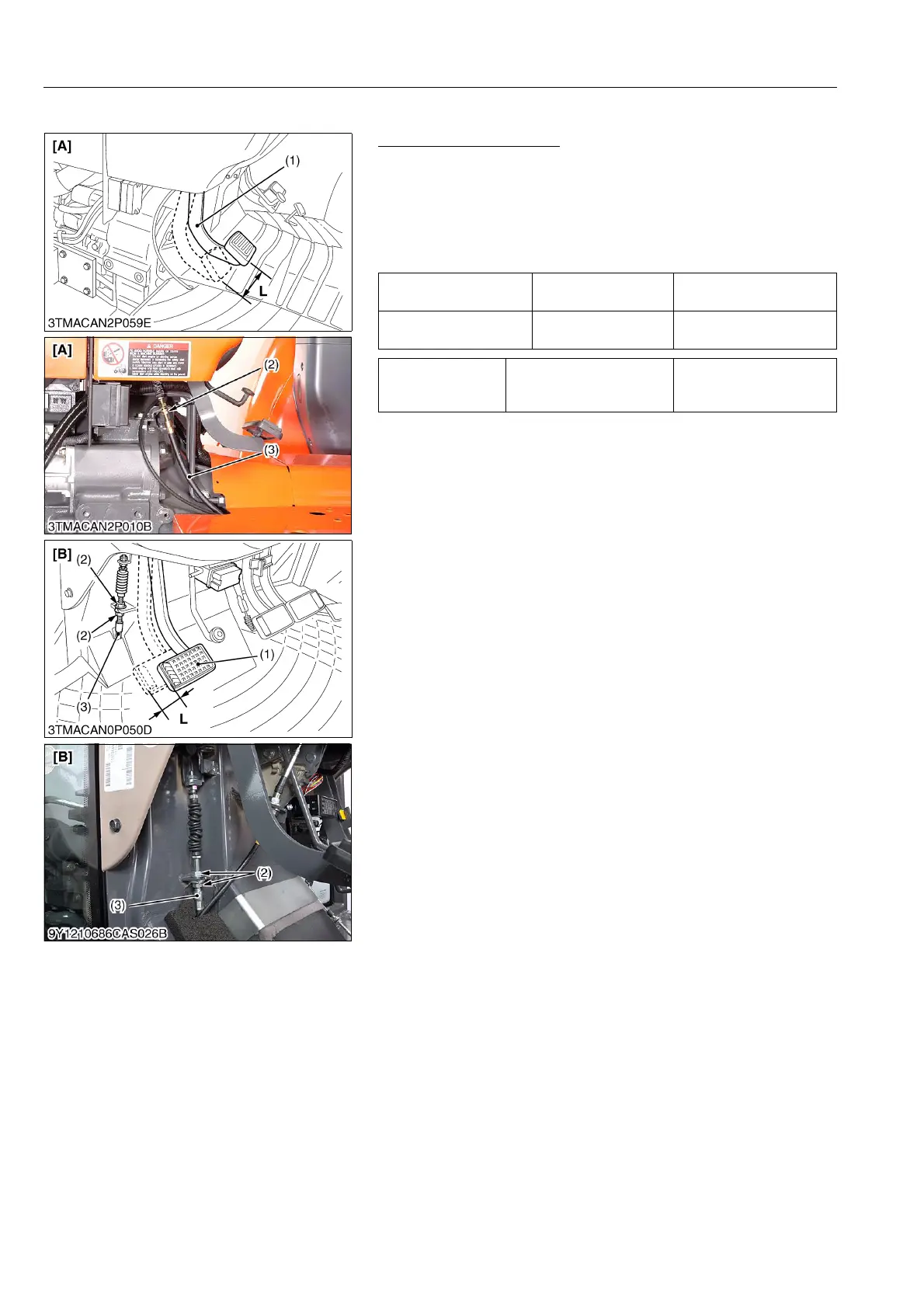

[2] CLUTCH PEDAL FREE TRAVEL
Clutch Pedal Free Travel
1. Measure the clutch pedal free travel "L".
2. If adjustment is needed, change with clutch wire cable (3)
retaining nut (2) so that the free travel becomes 15 to 20 mm
(0.59 to 0.79 in.).
3. After adjustment is completed secure the nut.
4. Be sure that the split pin is bent to both sides.
9Y1210828TRS0005US0
Clutch pedal free travel
"L"
Factory specification
15 to 20 mm
0.59 to 0.79 in.
Clutch pedal total stroke Factory specification
145 to 155 mm
5.71 to 6.10 in.
Tightening torque
Clutch wire cable retaining
nut
23.5 to 27.5 N·m
2.40 to 2.80 kgf·m
17.4 to 20.2 lbf·ft
(1) Clutch Pedal
(2) Clutch Wire Cable Retaining Nut
(3) Clutch Wire Cable
L: Free Travel
[A] ROPS Model
[B] CABIN Model
KiSC issued 08, 2013 A
