(9) Flywheel and Timing Gears
Flywheel

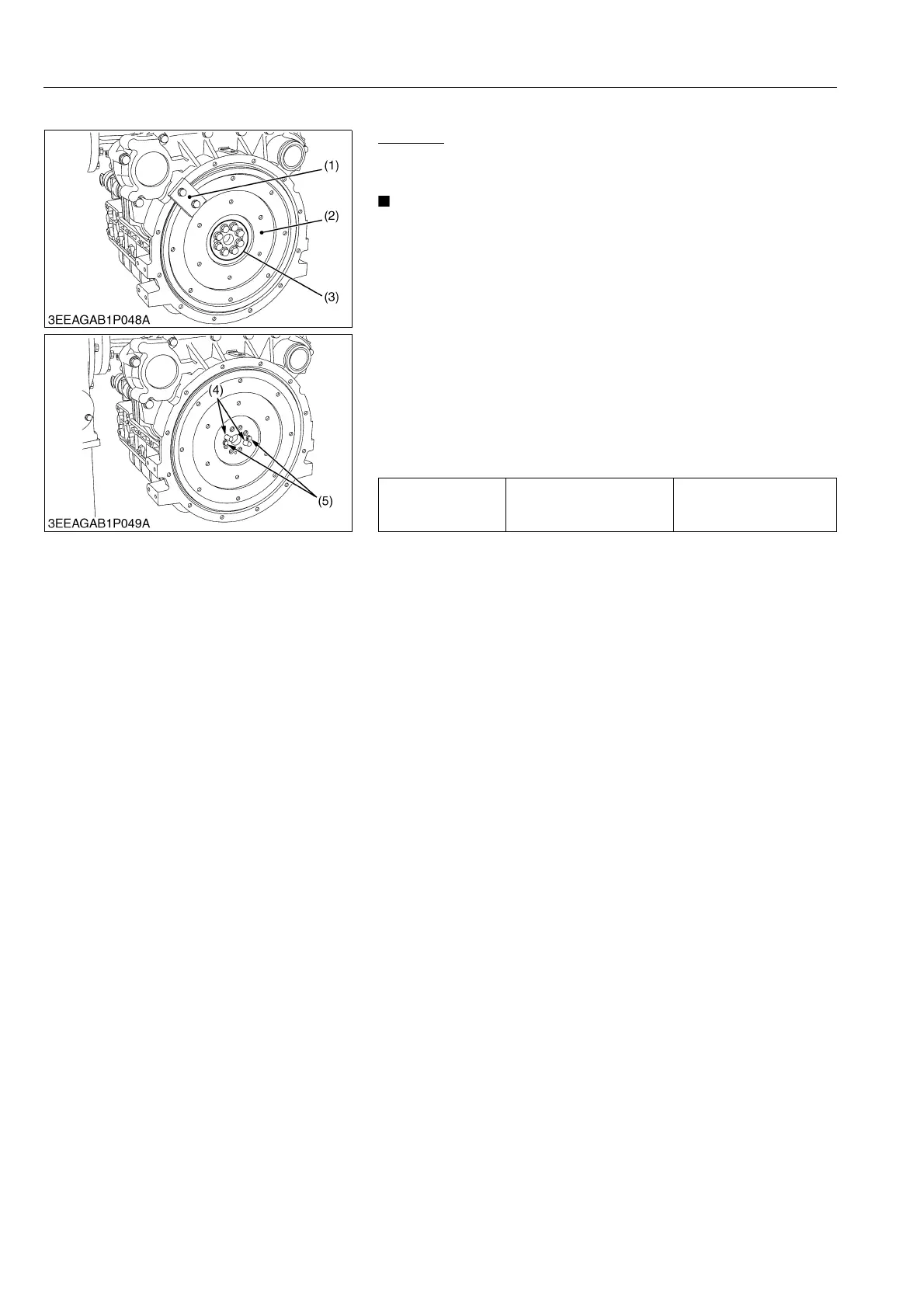

1. Install the stopper (1) to the flywheel (2) so that the flywheel (2)
does not turn.
• Do not use an impact wrench. Serious damage will occur.
• There is one positioning pin in the crankshaft gear and it is
installed in the flywheel (2).
2. Remove the flywheel screws (3) and set the flywheel guide
screws (4).
3. Remove the flywheel (2) with jack-up screws (5).
(When reassembling)
• Apply engine oil to the flywheel screws (3).
• Before fitting the flywheel (2) and the crankshaft gear together,
wipe oil, dust and other foreign substances off their mating
faces.
• The flywheel (2) and the crankshaft gear are fitting together in
just one position. Make sure they are tightly fit and drive the
screws.
9Y1210828ENS0066US0
Tightening torque Flywheel screw
98.1 to 107 N·m
10.0 to 11.0 kgf·m
72.4 to 79.5 lbf·ft
(1) Stopper
(2) Flywheel
(3) Flywheel Screw
(4) Flywheel Guide Screw
(5) Jack-up Screw
