wsm M7060 - 7 After Treatment System; After Treatment Devices

ENGINE
M6060, M7060, WSM
1-M23
7. AFTER TREATMENT SYSTEM

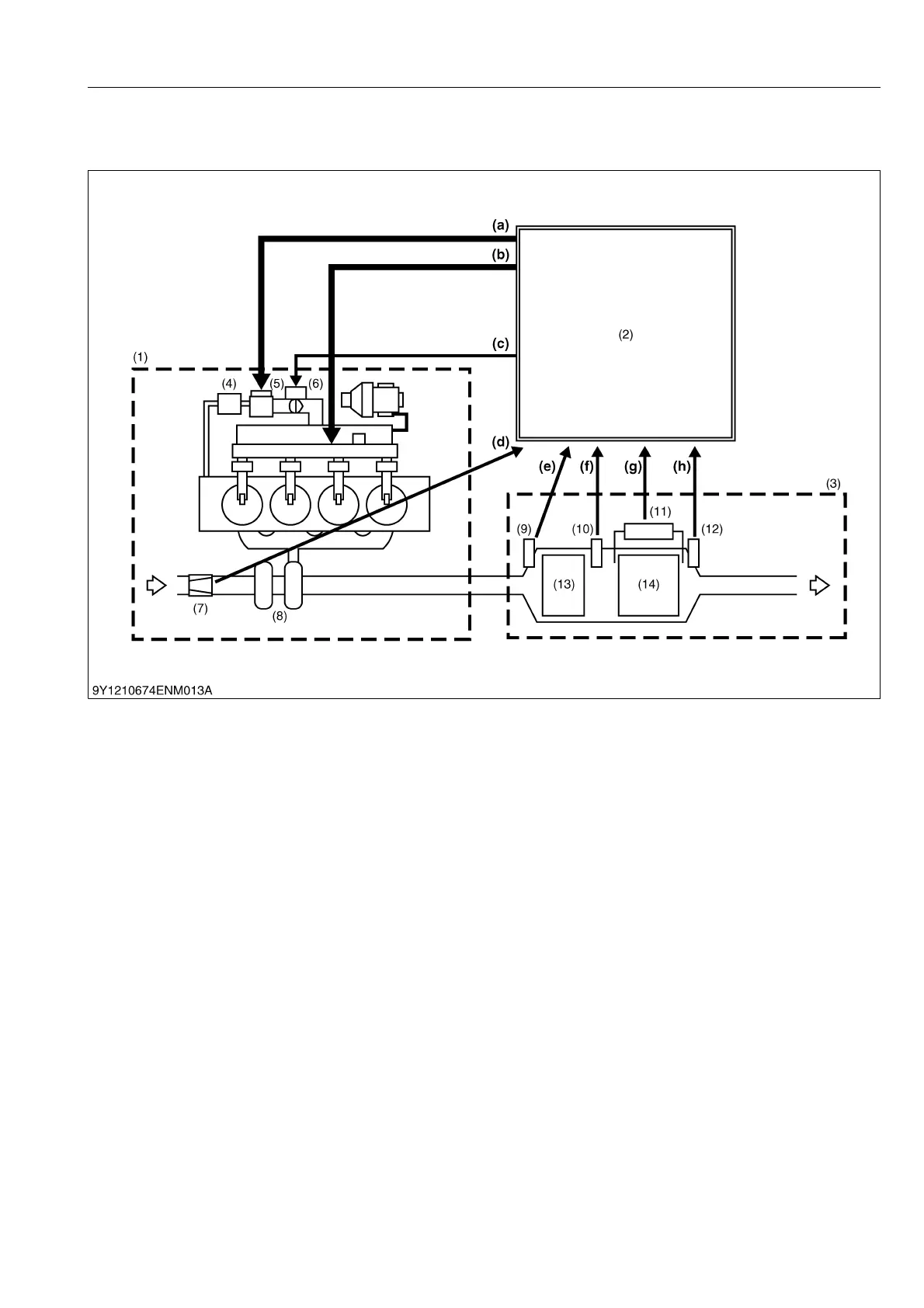

[1] AFTER TREATMENT DEVICES
9Y1210828ENM0039US0
(1) Common Rail System
(2) ECU
(3) After Treatment Devices
(4) EGR Cooler
(5) EGR Valve
(6) Intake Throttle Valve
(7) Air Flow Sensor
(8) Turbo Charger
(9) Temperature Sensor (DOC
Inlet Exhaust Temperature)
(T
0
)
(10) Temperature Sensor (DPF
Inlet Exhaust Temperature)
(T
1
)
(11) Differential Pressure Sensor
(DPF Differential Pressure)
(∆P)
(12) Temperature Sensor (DPF
Outlet Exhaust Temperature)
(T
2
)
(13) Diesel Oxidation Catalyst
(DOC)
(14) Diesel Particulate Filter
(DPF)
(a) EGR Valve Opening
(b) Injection Pattern
(c) Inlet Throttle Valve Angle
(d) Air Flow Sensor
(e) T
0
(DOC Inlet Exhaust
Temperature)
(f) T
1
(DPF Inlet Exhaust
Temperature)
(g) ∆P (DPF Differential
Pressure)
(h) T
2
(DPF Outlet Exhaust
Temperature)
KiSC issued 08, 2013 A
