ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S39

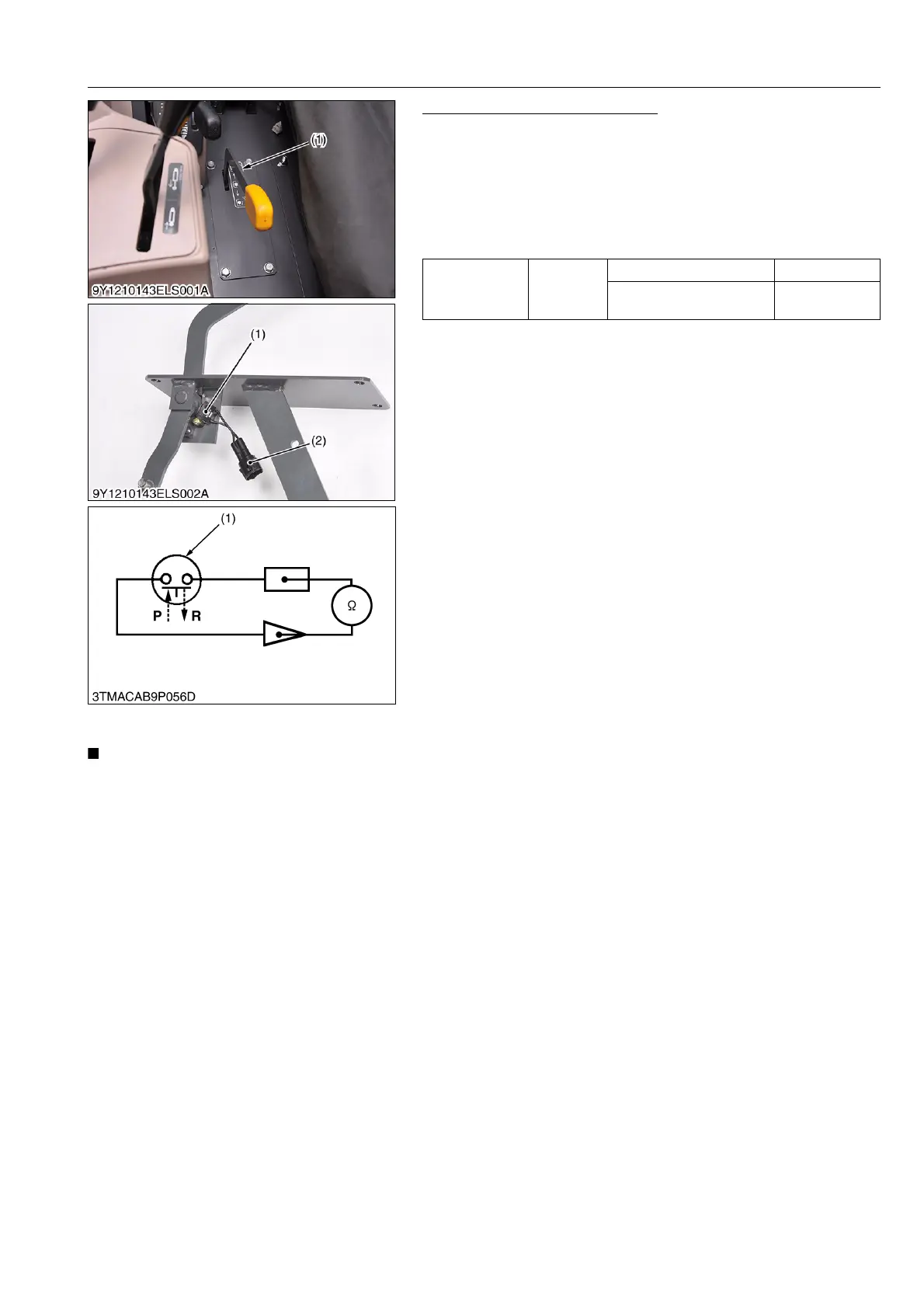

Ground PTO Switch (ITA Model)
1) Ground PTO Switch Continuity
1. Check the continuity with an ohmmeter across the switch
connector (2).
2. If it does not conduct or any value is indicated when the switch
is pushed, the switch is faulty.
3. If infinity is not indicated when the switch is released, the switch
is faulty.
9Y1210828ELS0064US0
[10] ENGINE SWITCH AND SENSOR
• On the Diagmaster Software, you can check and measure the resistance and voltage of the engine
sensors. When you measure the value of the engine sensors, use the Diagmaster Software.
• Refer to Diagmaster Manual "9Y120-02440" in detail points.
9Y1210828ELS0065US0
Resistance
(Across switch
terminals)
Reference
value
When switch is pushed "P" 0 Ω
When switch is released
"R"
Infinity
(1) Ground PTO Switch
(2) Connector
P: Pushed
R: Released
